Derailleur Hangers

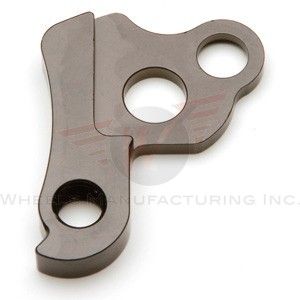

Attaches to frame with (m3-6CPZ x 1 / M4-8fsz x 1)

Marin

- Attack Trail 8 - 2017

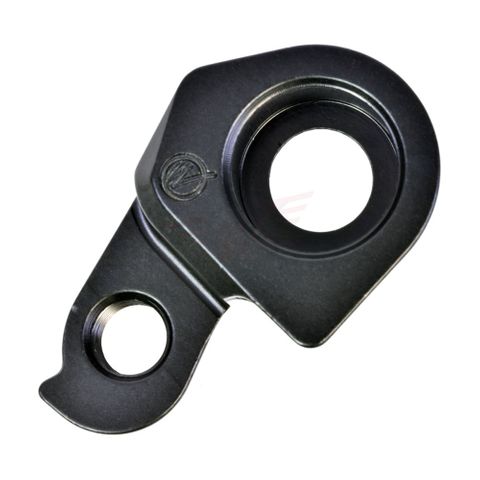

Attaches to frame with (1) M8 Chainring Bolt Long
Fastener included
Replaces Giant Part #27029
For use with Thru Axle rear hub

Giant
DH - 2002-2005

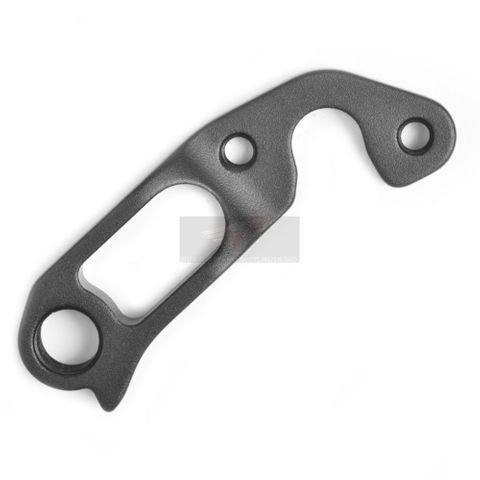

Attaches to frame with (2) M4x10 Flat Head Screw
Fasteners not Included
Replaces CEEPO Part # RD Hanger 2017-2018 Stinger

Note: This hanger is for use with 135mm wide hubs. If using 130mm wide hubs, use DROPOUT-381.

CEEPO

Mamba (with 135mm hub) - 2014-2018
Stinger (with 135mm hub) - 2014-2016

Attaches to frame with (2) M5x10 Flat head screws
Fasteners not Included
Replaces Scott Part # 273417

SCOTT

Addict 10, 20 QR (w/Direct Mount RD) - 2014-2019
Addict 15 Di2 QR (w/Direct Mount RD) - 2017
Addict 15 QR (w/Direct Mount RD) - 2015-2016
Addict 30 QR (w/Direct Mount RD) - 2015-2019
Addict RC 10 QR (w/Direct Mount RD) - 2018-2019
Addict RC 20 QR (w/Direct Mount RD) - 2018-2019
Addict RC Di2 QR (w/Direct Mount RD) - 2017
Addict RC Pro QR (w/Direct Mount RD) - 2018
Addict SL QR (w/Direct Mount RD) - 2014-2017
Addict Team Issue Di2 QR (w/Direct Mount RD) - 2015-2016
Addict Team Issue QR (w/Direct Mount RD) - 2014-2015
Contessa Addict 35 QR (w/Direct Mount RD) - 2018-2019
Contessa Addict QR (w/Direct Mount RD) - 2014
Contessa Solace 10 QR (w/Direct Mount RD) - 2014
Contessa Solace 15 QR (w/Direct Mount RD) - 2015-2016
Contessa Solace 20 QR (w/Direct Mount RD) - 2014
Contessa Solace 25 QR (w/Direct Mount RD) - 2015-2016
Contessa Solace 30 QR (w/Direct Mount RD) - 2014
Contessa Solace 35 QR (w/Direct Mount RD) - 2015-2017
Foil 10 QR (w/Direct Mount RD) - 2016-2019
Foil 20, 30 QR (w/Direct Mount RD) - 2016-2019
Foil Premium QR (w/Direct Mount RD) - 2016-2017
Foil RC QR (w/Direct Mount RD) - 2017-2018
Foil Team Issue QR (w/Direct Mount RD) - 2016
Solace 10 QR (w/Direct Mount RD) - 2014-2017
Solace 20 QR (w/Direct Mount RD) - 2014-2017
Solace 30 QR (w/Direct Mount RD) - 2014-2015
Solace Premium QR (w/Direct Mount RD) - 2014

- Attaches to frame with (1) special M5 cap head screw
- Fastener NOT Included
- For use with M12x1.5 Thru Axles
- Shimano Direct Mount Rear Derailleur
- Replaces Scott Part #264483

SCOTT

Addict 10 Disc, 20 Disc, 30 Disc (Shimano DM) - 2018-2019
Addict 20 Disc, 30 Disc QR (Shimano DM) - 2017
Addict CX 10 Disc (Shimano DM) - 2017
Addict CX 10 Disc ULT (Shimano DM) - 2016
Addict CX 20 Disc (Shimano DM) - 2017
Addict CX 20 Disc 105 (Shimano DM) - 2016
Addict CX RC Disc (Shimano DM) - 2018-2019
Addict Gravel 10 Disc, 20 Disc (Shimano DM) - 2017-2019
Addict Gravel 30 Disc (Shimano DM) - 2018-2019
Addict Gravel Disc (Shimano DM) - 2016
Addict Premium Disc Di2 QR (Shimano DM) - 2017
Addict RC 10 Disc (Shimano DM) - 2019
Addict RC 15 Disc, 20 Disc (Shimano DM) - 2018-2019
Addict RC Premium Disc (Shimano Direct Mount) - 2018-2019
Addict RC Premium Disc (Shimano DM) - 2018-2019
Addict RC Pro Disc (Shimano DM) - 2019
Addict RC Ultimate Disc (Shimano DM) - 2018
Addict SE Disc (Shimano DM) - 2019
Contessa Addict 15 Disc (Shimano DM) - 2019
Contessa Addict 15 Disc, 25 Disc (Shimano DM) - 2018
Contessa Addict 25 Disc (Shimano DM) - 2019
Contessa Addict RC Disc (Shimano DM) - 2019
Contessa Solace 15 (Shimano DM) - 2017
Contessa Solace 25 (Shimano DM) - 2017
Foil 10 Disc (Shimano DM) - 2018-2019
Foil 20 Disc (Shimano DM) - 2018-2019
Foil Premium Disc (Shimano DM) - 2018-2019
Foil Premium RC Disc (Shimano DM) - 2019
Foil Ultimate Disc (Shimano DM) - 2019
Metrix 10 Disc (Shimano DM) - 2018-2019
Solace 10 Disc (Shimano DM) - 2016-2017
Solace 15 Disc (Shimano DM) - 2015
Solace 20 Disc (Shimano DM) - 2016-2017
Solace 30 FB Disc (Shimano DM) - 2016-2017
Solace 40 FB Disc 20 CD (Shimano DM) - 2015
Solace Premium Disc (Shimano DM) - 2016-2017

Attaches to frame with (2) M3x8 flat head screws
Fasteners included
Replaces Norco part number 959371-8-5


NORCO

FBR - 2014
FBR - 2015
Indie - 2016
Indie (Geared) - 2017
Indie Drop - 2019
Scene - 2019-2020
Search Alloy - 2016
Search Alloy - 2017
Threshold Alloy - 2017
Valence Alloy - 2014
Valence Alloy - 2015
Valence Alloy 24 - 2017
Valence Alloy 650C - 2017
Valence Alloy 700C - 2017
VFR - 2014
VFR - 2015
VFR - 2016
VFR (disc & V-brake) - 2017-2020
XFR - 2016
XFR - 2017-2020

Attaches to frame with (2) M3x10 Flat head screws
Fasteners not Included
Replaces Giant Part # 370000012

Note: This hanger is not the same as our DROPOUT-167. There is no ridge that fits into the axle pocket.

GIANT

Escape R 3 - 2018+
Escape R Disc - 2020
Escape RX 1 - 2018+
Escape RX 2 - 2018+
Escape RX 3 - 2018+

- Attaches to frame with (1) M4x8 or M4x14 Flat Head Screw
- Fasteners Included
- For use with Shimano Direct Mount Rear Derailleur

KONA

Jake the Snake w/ Shimano DM - 2018-2019
Libre DL w/ Shimano DM - 2019-2020
Libre w/ Shimano DM - 2019-2020
Major Jake w/ Shimano DM - 2018-2020
Rove DL w/ Shimano DM - 2020
Rove LTD w/ Shimano DM - 2018-2019
Rove NRB DL w/ Shimano DM - 2018-2020
Rove NRB w/ Shimano DM - 2018-2020
Rove ST w/ Shimano DM - 2018-2020

- Attaches to frame with (2) M3x12 Flat Head Screws
- Fasteners Included
- For use with Shimano Direct Mount derailleur


TREK

Boone (w/ Shimano DM Rear Der.) - 2018-2019
Domane ALR Disc (w/ Shimano DM Rear Der.) - 2018-2019
Domane SL Disc Thru Axle (w/ Shimano DM Rear Der.) - 2017-2019
Domane SLR Disc (w/ Shimano DM Rear Der.) - 2017-2019
Emonda ALR Disc (w/ Shimano DM Rear Der.) - 2019
Emonda SL Disc (w/ Shimano DM Rear Der.) - 2018-2019
Emonda SLR Disc (w/ Shimano DM Rear Der.) - 2018-2019
Madone SL Disc (w/ Shimano DM Rear Der.) - 2019
Madone SLR Disc (w/ Shimano DM Rear Der.) - 2019

- Attaches to frame with (1) M4x20 Flat Head Screw
- For use with Shimano Direct Mount derailleur

Donnelly

C//C (w/ Shimano Direct Mount RD) - All
G//C (w/ Shimano Direct Mount RD) - All

Kestrel

TERX (w/ Shimano Direct Mount RD) - 2018+
TERX (w/ Shimano Direct Mount RD) - 2019-2020

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (1) M4x20 Flat Head Screw

Donnelly

C//C - All
G//C - All

Kestrel

TERX - 2018+

- Attaches to frame with (1) M3x10 Socket Head Screw
- Fastener Included
- For 12x1.0 Thru Axle (Double Lead)
- Replaces Cannondale Part #K33009

Note: DROPOUT-399 is for M12x1 double lead threaded axles (Cannondale Speed Release). For regular M12x1 thru axles, use DROPOUT-303.

CANNONDALE

SystemSix Carbon (with Speed Release Axle) - 2019
SystemSix HM (with Speed Release Axle) - 2019

Uses (1) M6 Chainring Bolt
Fastener included

Klein
Adroit Pro / Race - 1998-1999
Adroit Race - 2001
Attitude (all) - 2001
Attitude Race / Comp - 1998-1999
Mantra (all) - 1998-1999
Mantra Carbon - 2001

- For use with M12x1.5 Thru Axle
- For use with Shimano direct mount rear derailleurs only.

Notes: If using a standard mount rear derailleur, use DROPOUT-299

Salsa

- Beargrease M12x1.5 TA (With direct mount RD) - 2020
- Cutthroat M12x1.5 TA (With direct mount RD) - 2020
- Frames with flat-mount alternator plates M12x1.5 TA (With direct mount RD) - All
- Warbird M12x1.5 TA (With direct mount RD) - 2020
- Warroad M12x1.5 TA (With direct mount RD) - 2020

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2) M4x8 Flat Head Screw
- Fasteners Included
- Holes are countersunk without threads.
- Replaces Cube Part #10110 (short road hanger with short slot)

Note: DROPOUT-402 is the same shape as DROPOUT-385, but with two fasteners instead of one.

Cube

Agree - 2005-2006
Attempt - 2005-2006
Peloton - 2005-2006
Streamer - 2005-2006

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2) M4x8 Flat Head Screw
- Fasteners Included
- Holes in hanger are threaded!
- Replaces Cube Part #10106, 10107, 10131 (short road hanger with long slot)

Cube

Aerium HPA Pro black 'n grey - 2017
Aerium HPA Pro black 'n grey 'n flashred - 2015
Aerium HPA PRO black 'n red 'n white - 2014
Aerium HPA Pro white 'n red - 2016
Aerium Pro - 2013
Aerium Race - 2013
Aerium, Litening - 2005
Agree GTC Compact - 2013
Agree GTC DI2 - 2012
Agree GTC Pro - 2012-2013
Agree GTC Pro 3-fach - 2013
Agree GTC Race - 2010
Agree GTC Race - 2012
Agree GTC SL - 2012
all road and triathlon bikes without Aerium HPC - 2011-2012
all road and triathlon bikes, SL road - 2007-2009
Axial GTC WLS - 2010
Axial Series - 2013
Axial WLS Pro blue 'n sea 'n flashred - 2015
Axial WLS Pro blue 'n white - 2014
Axial WLS white 'n blue 'n green - 2015
Axial WLS white 'n blue 'n red - 2014
Cross Race - 2013
Cross Race black 'n white - 2014
Cross Race black 'n white 'n red - 2015
Cross Race Disc black 'n blue - 2014
Cross Race Disc black 'n red 'n blue - 2015
Cross Race Disc Pro red 'n black - 2015
Cross Race Pro black 'n red - 2014
Cross Race Pro red 'n black - 2016
Cross Race SL grey 'n flash orange - 2016
Cross Race white 'n red - 2016
GTC 3-fach - 2013
GTC und Litening Alu, Agree, Agree ergo, - 2006
Litening - 2012
Litening SHPC - 2010
Peloton - 2013
Peloton 3-fach white red print - 2014
Peloton black 'n red 'n blue - 2015
Peloton compact EXPORT white red print - 2014
Peloton Pro 3-fach black blue print - 2014
Peloton Pro compact EXPORT black blue print - 2014
Peloton Pro white 'n red 'n black - 2015
Peloton Race black 'n white 'n red - 2015
Peloton Race compact black red print - 2014
Peloton Race compact white 'n blue 'n red - 2014
Peloton SL black 'n white - 2015
Peloton SL red 'n black - 2015
SL Cross - 2013
SL Cross Team/Pro/Comp - 2010
SL Road anthrazit black white - 2014
SL Road Pro black grey red - 2014
SL Road Pro grey black flashgreen - 2016
SL Road Race black anodized - 2014
SL Road Race black grey flashblue - 2016
Streamer - 2010

SRAM compatible Universal Derailleur Hanger simplifies thousands of hanger designs into one universal standard. Machined completely out of aluminum, this new hanger is not only strong but designed to rotate backward and slip slightly in the case of an impact preventing chain jams and protecting the drive train. All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- Compatible with bike frames designed to accept the SRAM UDH (Universal Derailleur Hanger)
- Compatible with all MTB and EMTB drivetrains
- Machined aluminum body Anodized black.
- Thru Axle Thread Pitch M12x1.0

TREK

Farley- 2014-15
Stache - 2013-15
Superfly - 2013-17
Procaliber - 2017
Trek 920 - 2016-17
Cali Carbon - 2014-15

- Attaches to frame with (2) m4-8
- Fasteners included

Eddy Merckx

EMX525 - 2015

Sensa

Giulia (G1) - 2015

Attaches to frame with (1) M4-10FHZ + thru Axle

CANYON

Aeroad CF SLX Disc - 2017-2020
Endurance AL Disc - 2017-2020
Endurance CF SL Disc - 2018-2020
Endurance CF SLX Disc - 2016-2020
Endurance WMN AL Disc - 2017-2020
Endurance WMN CF SL disc - 2017-2020
Grail CF SL - 2018-2020
Grail CF SLX - 2018-2020
Inflite CF SL Disc - 2020
Infllite CF SLX - 2018-2020
Ultimate CF SL Disc - 2018-2020
Ultimate CF SLX Disc - 2017-2020
Ultimate WMN CF SLX Disc - 2017-2020

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2) M3x8 FSZ

CUBE

Agree C:62 PRO - 2016-2017
Agree C:62 SL - 2016-2017
Attain - 2016-2020
Attain GTC - 2016-2017
Attain GTC PRO - 2018
Attain GTC Race - 2016-2017
Attain Pro - 2016
Attain Race - 2016
Attain SL - 2017-2018
Attain SL - 2016
Axial WLC GTC SL - 2016
Axial WLS - 2016-2017
Axial WLS C:62 SL - 2016
Axial WLS GTC PRO - 2016-2017
Axial WLS GTC Pro - 2016
Axial WLS PRO - 2016
Axial WLS Race - 2016
Axial WS - 2018-2020
Axial WS GTC PRO - 2018-2019

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2)M4x8fsz
- Thru Axel - M12-1.75
- Cube part# - 10148

Cube

Reaction - 2020-2021
Access - 2020-2021
Acid - 2020-2021
Aim - 2020-2021
Cross Hybrid - 2020-2021
Cube Access WLS Disc 27.5 / 29 - 2015-2016
Cube Aim Disc 27.5 - 2015-2016
Cube Aim Disc 29 - 2015-2016
Cube Aim SL 27.5 - 2015-2016
Cube Aim SL 29 - 2015-2016
Cube Analog 27.5 - 2015-2016
Cube Analog 29 - 2015-2016
Ella Ride - 2020-2021
Kathmandu - 2020-2021
Nature - 2020-2021
Nuride - 2020-2021
Reaction Pro - 2020-2021
Touring - 2020-2021
Town Sport - 2020-2021

Attaches to frame with (1) M8 Chainring Bolt
Fastener not included
Replaces:
Canyon Hanger #9
Scott Part # 228840

Note: DROPOUT-41 is different than DROPOUT-42.

All-City
Space Horse

Bianchi
Alloro - 1999-2000
Daytona - 1999-2000
L Lite Alloy - 1999-2000

Diamondback
Expert - 2000
Interval - 2006

Masi
Alare - 2013
Alare - 2009-2011
Alare Bellissima - 2013
Caffe Racer Series - 2009-2011
CX - 2013
CX Comp - 2013
CXR - 2013
CXR - 2009-2011
CXR Comp - 2013
Gran Corsa - 2013
Gran Corsa - 2009-2011
Gran Corsa Bellisima - 2010
Inizio - 2013
Inizion Bellissima - 2013
Nouva - 2002-04
Partenza - 2013
Partenza - 2010-2011
Partenza Bellissima - 2013
Strada - 2002-04
The Vincera - 2002-04
Veloz - 2002-04
Vincere - 2002-04

Redline
Various Redline -

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (1) 12mm Thru Axle
