Derailleur Hangers

Attaches to frame with (2) M4x8 Flat Head Screws
Fasteners included

Note: Do not confuse DROPOUT-56 with DROPOUT-78 they are slightly different shapes.

K2
All Fs Bikes - 1998-2002
All S-Styles FS - 1997
Alturas - 2007
Astral - 2007
Attack - 2007
Big Easy - 2007
Comfort - 2003
Cross - 2003
Easy St - 2007
Enemy - 2003
FS - 2003
Lithium - 2007
Most K-2 Bikes - 2004-2006
Zed - 2003
Zed - 2007
Zed 1.0 - 2004

Proflex
Beast -

Husqvarna

- Extreme Cross 2019-2021
- Gran Tourer 5 2019-2021
- Gran Tourer 6 2019-2021
- Hard Cross 2019-2021
- Light Cross 5 2019-2021
- Light Cross 6 2019-2021
- Mountain Cross 2019-2021

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2) M4x10mm Flat Head Screw
- Bombtrack: BT-DH-008


BOMBTRACK

ARISE GEARED - 2020
AUDAX - 2020-2021
BEYOND - 2020
BEYOND 1 - 2021
BEYOND 2 - 2021
BEYOND+ - 2020-2021
BEYOND+ - 2017
BEYOND+ 1 - 2018-2019
BEYOND+ 2 - 2018-2019
BEYOND+ ADV - 2018-2021
CALE - 2020-2021
HOOK - 2021
HOOK 2 - 2020
HOOK ADV - 2020
HOOK EXT - 2020-2021
HOOK WMN - 2020

Orange

P7 - 2016-2021

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Thru Axle Thread Pitch M12x1.0
- Use without the B-Link when attaching
- Retains ability of original SRAM UDH to rotate under impact to help protect the derailleur in the event of an impact.

Adds direct mount compatibility with Shimano Road and Gravel derailleurs to any SRAM UDH compatible frame. Optimized for Shimano-Dura-Ace (R9100 and R9150), Ultegra-(R8000, R8050, RX800, and RX805), 105 (R7000), and GRX-(RX810, RX812, RX815, RX817, and RX400)

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Thru Axle M12x1.75
- Custom M16 Nut
- Mondraker: M068

* Hanger nut thread has been changed from the original M15 to M16 for improved hanger strength. Inculded nut is not compatible with OEM hanger.

Mondraker

Chaser - 2020-2022
Chaser R - 2022
Chrono - 2019-2022
Chrono Carbon - 2019-2022
Crafty Carbon - 2020-2021
Crafty R - 2022
Crafty RR - 2022
Crafty SE - 2020-2022
Dusk - 2020-2022
F-Podium - 2020
F-Podium SL - 2020
Factor R - 2018
Factor RR - 2018
Foxy Carbon - 2019-2021
Level - 2020-2022
Podium - 2017-2020
Prime - 2020-2022
Prime R - 2022
Prime RX - 2022
Prime X - 2020-2022
Summum - 2021-2022
Superfoxy - 2021-2022
Thundra - 2020-2022

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle
- M5x10mm Custom Socket Head Screw
- Mondraker: M062

This hanger shares geometry with DROPOUT-565 and DROPOUT-566. DROPOUT-565 has M12x1.75 axle threads. DROPOUT-566 has M12x1.0 axle threads. DROPOUT-567 does not have threads and requires a separate axle nut.

Mondraker

Dune - 2014-2016
Factor - 2014
Foxy - 2014-2016

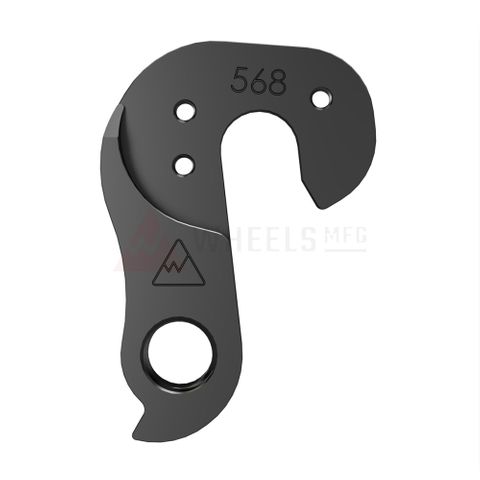

This hanger has three fastener holes, which will work with multiple patterns of two bolt frames.

- CNC machined 6061 aluminum
- 2 x M3x8mm Socket Head Screw

COMPATIBILITY

Centurion

Backfire - 2012-2014
Backfire Pro - 2015
City Speed - 2017
Cross Line - 2014, 2017
Cross Line Ultimate - 2014
CrossFire - 2017
Eve - 2014
Eve Pro - 2017
Gigadrive - 2017
Gigadrive Disc - 2017
Hyperdrive 2000 - 2017
Hyperdrive 2000 - 2017
Hyperdrive Disc - 2017
Numinis Float Ultimate - 2012
R'bock - 2014
Speed Drive Disc - 2017
Ultimate - 2012-2014

Columbus

CTX 1.2 - 2017
Light ebike - 2017
SuperLight - 2017

Eddy Merckx
Crossway - 2013

Giant
Craig - 2014
Propel - 2014
XTC Composite - 2005

Haro
Bridgeport 700 -

KHS
Various -

Merida
AM-4000 - 2009
AM-800 - 2012
Big.Nine - 2012-2017
Big.Seven - 2015
Carbon Fox - 2010
Crossway - 2010-2017
E-Spresso - 2015
ebig Tour - 2017
FLX - 2009
FLX 800 carbon - 2010
Hardy - 2011
Juliet - 2012-2017
Matts - 2011
Matts Lite 1000 - 2010
Matts Pro - 2010-2011
Matts Scandium - 2010-2011
Matts TFS - 2011-2013
Matts Trail - 2011-2012
Mission comp - 2010
Nine Team - 2012
Ninety Nine Carbon - 2012
Ninety Nine XT Edition - 2012-2013
Ninety Six - 2010-2011
Ninety Six FLX 800 Carbon - 2011
One Forty - 2011
One Twenty - 2010-2014
One Twenty Carbon - 2012
S-Presso - 2011-2017

Novara
Fusion - 2009-2010

Viper
E-Rock 27.5 - 2015

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x8mm Flat Head Screw
- KHS: Hanger #3180

KHS

XC24 - 2017

Attaches to frame with (2) M4x8 Flat Head Screws
Fasteners included
Replaces:
Canyon Hanger #8
Kona Hanger Type J
Marin Hanger 16

Note: This hanger has threaded holes for the fasteners.

K2
Mach - 2003
Mod - 2003
Mod - 2001-2002

Motobecane
Immortal Force -

Raleigh
Team - 2002-2004
Team Heritage - 2003

Ridley
Crosswind - 2006
Supercross - -

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- M4x14 Flat Head Screw

RIDLEY

Fenix SL Disc - 2017
Jane SL Aero plus Disc - 2018
Jane SL Disc - 2017-2018
Noah Aero plus Disc - 2019
Noah Fast Disc - 2019
Noah SL Aero plus Disc - 2018
Noah SL Disc - 2017-2018

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (2) M4x12mm Socket Head Screws, Split Lock Washer
- Orange: PHABAUK1001


Bombtrack

ARISE TOUR - 2020

Orange

324 - 2016-2018
327 - 2019-2021
329 - 2019-2021
Alpine 160 - 2014-2016
Alpine 160 Diva - 2014-2015
Alpine 6 - 2019-2021
Alpine 6 E - 2018-2019
Alpine 6 MK1 - 2018-2019
Alpine Five - 2015
Charge - 2019-2021
Five 29 - 2014
Five 29 - 2017-2019
Five Evo - 2021-2022
Four - 2016-2019
Phase MK1 - 2020-2021
Segment - 2016-2017
Stage 4 - 2019
Stage 5 - 2017-2020
Stage 6 - 2017-2021
Stage Evo - 2021-2022
Surge - 2019-2021
Surge 29 - 2020-2021
Switch 6 - 2020-2021

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x14mm Flat Head Screw
- Thru Axle Thread Pitch M12x1.5
- Bombtrack: BT-DH-023; KHS: Hanger #3236
- This hanger has M12x1.5 axle threads. DROPOUT-574 shares geometry, but has M12x1.75 axle threads.

Bombtrack

Cale AL - 2021-2022
Munroe Cargo - 2021-2022

KHS

4-Season 1000 - 2019-2020
4-Season 3000 - 2019-2020

Motobecane

Taz3 - 2020

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x14mm Flat Head Screw
- Da Bomb: DB17-1
- This hanger has M12x1.75 axle threads. DROPOUT-573 shares geometry, but has M12x1.5 axle threads.

Da Bomb

Sentinel 29 - 2021-2022

Orange

Clockwork 109 - 2018
Clockwork 127 - 2018

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (1) M4x14mm Flat Head Screw
- Thru Axle Thread Pitch M12x1.5
- Orange: PHAJCTW1020

Orange

- R9 - 2018-2019

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x16mm Flat Head Screw
- Orange: PHAJCUK1001

ORANGE

322 - 2013-2015
Alpine 160 - 2009-2013
Patriot - 2012-2013

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x20mm Flat Head Screw
- Orange: PHAJCUK1003

ORANGE

224-Evo - 2008-2012
Five - 2008-2013
Five - 2008-2013
Gyro - 2012-2014

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4x20mm Flat Head Screw
- Orange: PHABAUK1006

ORANGE

Big-T - 2007
Patriot - 2007

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Thru Axle Thread Pitch M12x1.5
- Litespeed: Hanger 1, American Bicycle Group: MP-D1014

Litespeed

Cherohala - 2018+
Gravel - 2018-2022
Pinhoti III - 2021+
T1SL Disc - 2017+
Ultimate G2 - 2022+
Ultimate Gravel - 2018+
Ultimate Road Disc - 2018+
Unicoi - 2018+
Watia - 2021+

Obed

GVR - 2022+

Canyon
Competition, Competition WRX - 2002
Elite WRX - 2002
Passione, Passione Record, Passione Record - 2002
Roadlite Elite, Ultimate - 2002
Roadmaster Pro, Ultimate - 2002
Speedmax 1000-3000 - 2002

DeRosa
Various -

Ellsworth
Roots - 2009-2013

Focus
Arriba - 2011-2012
Black Forest 29er 1.0-5.0 - 2011-2013
Black Hills - 2012
Corrente Tiagra - 2011-2012
FSL - 2011-2012
Jarita Series - 2012
Maleta - 2011-2012
Raven 29er 2.0-5.0 - 2011-2013

Fondriest
RP-TRE - 2009
TF1 - 2009
Tieffedue - 2009
IronHorse
Excelsior - 2006
Victory - 2007

Kettler
SixFifty 608 - 2013-2014

KHS
Flite 750 - 2013
Saguaro - 2012-2013
SixFifty 605 - 2014
Team 29 - 2013

Kona
Kona Kona - 2003-2004

Marin
Venezia - 2005

Orbea
Aletta - -
Aqua - 2008
Aqua TDF - 2008
Aqua TDI - 2008
Asphalt - 2010
Mitis - 2010
Most Carbon Frames - 2009

Planet X
Dirty Harry - -
Primus Mootry
Kluisberg - Pre-2008
Kluisberg-X - Pre-2008
Raleigh
Capri 3.0 - 2011
R800 - 2000

Salsa
Various -

Stevens
Alloy Cross - 2011-2013
Prestige Alloy - 2011-2013
Xenon - 2012

Univega
Alpina E - 2011
Alpina SL-5 - 2010
Alpina SL-7 - 2010
HT-300 - 2011
HT-530/ 510/ 500 - 2011
Terreno 100 - 2011
Terreno 200 - 2011
Terreno 300 - 2011
Terreno 400 - 2011
Terreno 500 - 2011
Terreno 700 - 2011
Terreno 900 - 2011
Terreno E - 2011

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Custom M12 Bolt (DROPOUT-FAST-05)
- Santa Cruz: 23-20090, 04-20895
- Thru Axle Thread M12x1.0
- For long chainstay. Includes DO bolt 26-15634. For short chainstay, please see DROPOUT-581.

Santa Cruz

Megatower V1 - 2019-2020
Tallboy V4 Carbon - 2019-2020
V10.7 - 2019-2020

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Custom M12 Bolt (DROPOUT-FAST-05)
- Santa Cruz: 23-20089, 04-20894
- Thru Axle Thread M12x1.0
- For short chainstay. Includes DO bolt 26-15634. For long chainstay, please see DROPOUT-580

Santa Cruz

Megatower V1 - 2019-2020
Tallboy V4 Carbon - 2019-2020
V10.7 - 2019-2020

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle
- 2x M4x12mm Flat Head Screw, 1x M4x6mm Set Screw
- KHS: Hanger #3238, Vitus: Hanger 10, Trifox: HMFM200


Botttecchia

Gardena 27.5 - 2016

Kestrel

MX5 Carbon - 2019

KHS

4 Season 5000 Carbon - 2019-2020
Prescott - 2016-2017
Team 29FS - 2017

On One

Maccatuskil - 2016-2019

Ribble

Hybrid Trail AL - 2020-2022

Trifox

MFM200 -

Viner

Super Prestige - 2016-2018

Vitus

Energie Carbon - 2016-2019
Energie Pro - 2016-2019
Rapide 290 Carbon - 2016-2019
