Derailleur Hangers

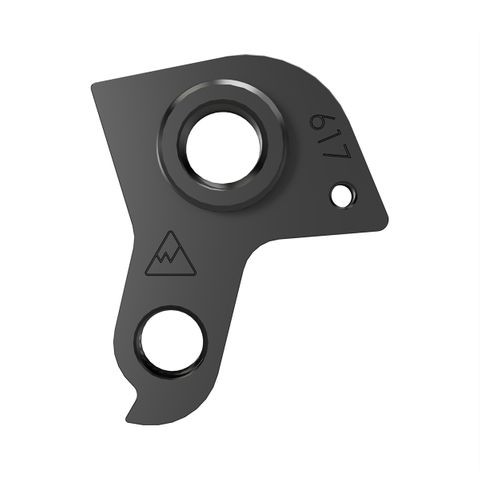

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
-Black anodized finish
- Thru Axle
- 2 x M4x14mm Flat Head Screw and M4x16mm Flat Head Screw
- Merida: DH-054, MUK 36

Merida

Mission CX - 2018-2019
Reacto Disc - 2018-2019
Scultura Disc - 2017-2019
Silex - 2018-2019

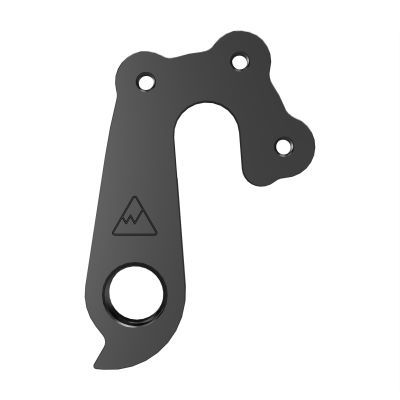

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (1) M4x12mm Flat Head Screw
- Thru Axle Thread: M12x1.5
- Fasteners Included
- Orbea: Hanger #51/X259

COMPATIBILITY:

ORBEA

Avant - 2017-2020
Avant - 2017-2020
Avant - 2017-2020
Orca Aero Disc - 2019-2021
Orca Disc - 2017-2020
Orca Disc - 2017-2020
Orca Disc - 2017-2020
Orca Disc - 2017-2020
Orca Disc - 2017-2020
Terra Al - 2019-2021
Terra OMP - 2017-2021

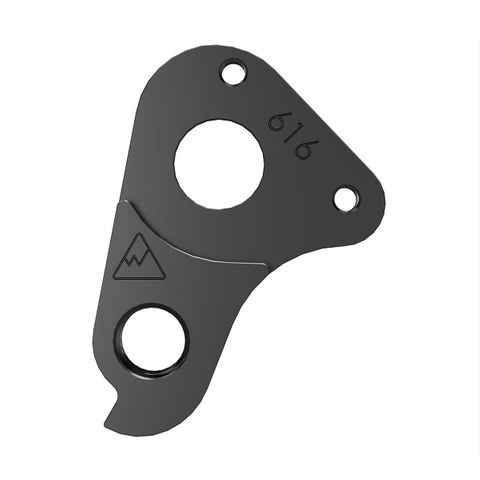

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle
- M4x8mm Flat Head Screw
- Kona: Hanger LL

Kona

Abra Cadabra - 2012-2013
Big Kahuna - 2012-2015
Cadabra - 2012-2013
Hei Hei - 2013-2015
Hei Hei 2-9 DL - 2012
Hei Hei 2-9 Supreme - 2012
Hei Hei DL - 2013-2015
Hei Hei Hei - 2014
Hei Hei Supreme - 2013-2015
Kahuna - 2012
King Kahuna - 2012-2015
Process - 2013
Process DL - 2013

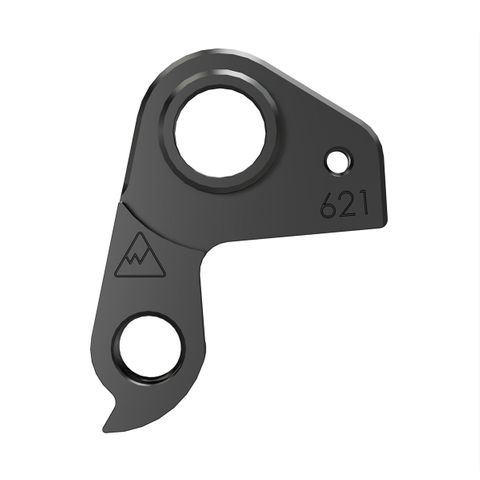

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with: (2) M8x12mm Low Profile Socket Head Screws
- Fasteners Included
- Santa Cruz: 23-14539

* DROPOUT-619 and DROPOUT-620 fit the same frames. DROPOUT-619 is for a 135/QR rear axle. DROPOUT-620 is for a 142mm thru axle.

Santa Cruz

Chameleon 5.0 - 2013-2014
Chameleon 6.0 - 2014-2016
Highball Al 1.0 - 2012-2015
Highball Al 2.0 - 2015-2017

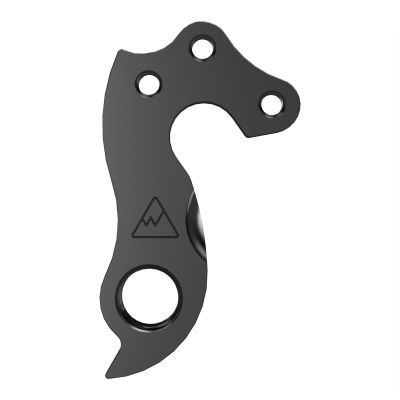

Attaches to frame with (2) M5x10 Flat Head Screws
Fasteners included

Pinarello
Prince (Aluminum model only) -

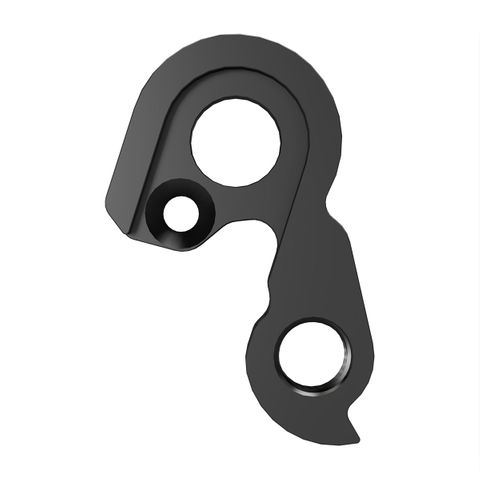

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle
- M4x16mm Flat Head Screw
- Cannondale: K33071

Fantic

XEF 1.9 Race - 2022
XF1 -
XMF - 2022
XTF - 2022
XXF - 2022

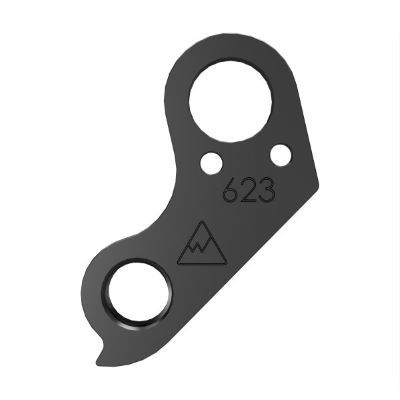

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with (1) M4x13mm Flat Head Screw w/ 6mm Diameter Head
Thru Axle Thread Pitch M12x1.5
Fuji: D054
DROPOUT-537 and DROPOUT-622 share similar geometry. 537 has M12x1.75 axle threads, while 622 has M12x1.5 axle threads. Please confirm which hanger you need prior to purchase.

Fezzari

Abajo Peak 2020+
Cascade Peak 2020+
Wiki Peak 2020+
Wire Peak 2020+

Colnago

C64 2021-2022
V2-R 2021-2022
Concept 2021-2022
V3Rs 2021-2022
G3-X 2021-2022
V3R 2021-2022

Bergamont

Beluga Speed 2007-2010
Dolce Alloy 2007-2013
Dolce CX 2010-2013
Platinum Speed 2007-2010
Prime Alloy 2014
Prime CX 2014
Prime Speed 2007-2010
Prime Speed Tour 2007-2008
Sweep 2011-2014
Vitess SL 2009-2011

Bergamont

Beluga Speed 2007-2010
Dolce Alloy 2007-2013
Dolce CX 2010-2013
Platinum Speed 2007-2010
Prime Alloy 2014
Prime CX 2014
Prime Speed 2007-2010
Prime Speed Tour 2007-2008
Sweep 2011-2014
Vitess SL 2009-2011

Product SKU DROPOUT-626
UPC 810124711252

Distributor Cost $11.35
MSRP $29.99

Bergamont

Allride Comp 2007-2009
Allride Pro 2007-2010
A-Ride 2007-2010
Beluga 2010
Beluga Allround 2007-2009
Beluga Disc 2010
Beluga Speed 2010
Beluga Sport 2007-2009
Berga monster 2009-2010
Blades 2009-2010
Blades 1 2009
Blades Dirt 2007-2009
Blades Disc 2009-2010
Contrail 2009-2013
Crosstec Disc 2007-2010
Deer Hunter 2007-2010
Endure 2007
Fastlane 2009-2012
Fluxus 2010
Fluxus Allround 2007-2009
Fluxus Sport 2007-2009
Horizon 2007-2010
lcee 2007-2009
lcee Disc 2009
Kiez 040 2011
Kiez Comp 2007-2009
Kiez Flow 2010
Kiez Pro 2007-2010
Kiez Team 2007-2014
Metric 2014
Metric FMN 2014
Platinum Alloy 2007-2013
Platinum Carbon 2008-2010
Platinum Disc 2010
Platoon Alu 2011
Platoon FMN 2009-2012
Prime Tee 2007-2010
Prime Tee Disc 2008-2010
Revox Alloy 2011-2014
Stalli on 2007-2009
Stallion Disc 2007-2009
Tattoo 2011-2014
Tattoo Ltd 2010-2014
Threesome 2007-2010
Vitess 2007-2010
Vitox 8.2 FMN 2011-2014
Vitox 8.3 FMN 2011-2014
Vitox 8.4 FMN 2011-2014
Vitox 9.1 2011-2014
Vitox 9.1 FMN 2011-2014

All Wheels Manufacturing replacement derailleur hangers are produced in Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (2) M4 x 8mm Flat Head Screw

Author

elan - 2019-2020

Bianchi

Magma 9.0 - 2022

Conway

MC - 2019+
ML - 2019+
MS - 2019+

Motobecane

Elite eAdventure Shimano - 2020+

Rock Machine

Avalanche E50 - 2020
Blackout 40 - 2017-2019
Blackout 60 - 2017-2019
Blackout ES 20 - 2018-2019
Blackout ES 40 - 2018-2019
Blizz 27 LTD - 2020
Catherine 10 - 2020
Catherine 30 - 2020
Catherine 40 - 2020
Catherine 90 - 2020
Catherine E70 - 2020
Crossride 300 - 2019-2020
Crossride 500 - 2019-2020
Crossride 700 - 2019-2020
Crossride 75 - 2019
Crossride 800 - 2019
Crossride E325 - 2020
Crossride E350 - 2018-2020
Crossride E375 Touring - 2020
Crossride E400 - 2020
Crossride E450 Touring - 2020
Crossride E500 - 2018-2020
Crossride E700 Touring - 2020
Heatwave 70 - 2020
Heatwave 90 - 2020
Manhattan 40 - 2019-2020
Manhattan 70 - 2019-2020
Manhattan 90 - 2019-2020
Manhattan E30 - 2020
Manhattan E50 Touring - 2020
Scento - 2018
Shuffle - 2018
Storm 60 - 2020
Storm 90 - 2020
Storm E60 - 2018-2020
Storm E70 - 2020
Storm E90 Touring - 2020
Thunder 27 HD KTD - 2020
Torrent 30 - 2020
Torrent 50 - 2020
Torrent E30 - 2018-2020
Torrent E70 Touring - 2020
Torrent E90 - 2020
Torrent JNR E30 - 2019-2020

Veloce

V100 - 2020+

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with (1) M4x12mm Flat Head Screw

Gazelle

Medeo T10 - 2020-2023
Medeo T10+ - 2020-2023
Medeo T9 - 2020-2023
Medeo T9 City - 2020-2023

Attaches to frame with (2) M3x10 Flat Head Screws
Fasteners included

Time
Most Road Bikes - 2005 and earlier

KTM
Lycan Master 2011-2012
Lycan Prestige 2011-2012
Myroon Comp 2010-2012
Myroon Elite 2009-2011
Myroon Master 2009-2012
Myroon Prestige XTR 2009-2013
Myroon Prime XO 2011
Phinx 3.0 2012-2013
Phinx 3.29 2012-2013
Race 1.29 2011-2012
Race 2.29 2011-2012
Race 3.29 2011
Race Action 2005-2013
Race Cross 2007-2012
Race Cross Comfort 2012
Race Line 2003-2012
Race Team 2010
Sedona Carbon 2009
Taser Elite 2011
Taser Master 2011
Taser Prestige 2011
Taser Prime XO 2011
Taser XX 2011
Toryn Comp 2011-2012
Toryn Elite 2011-2012
Toryn Master 2011-2012

Ideal
Hillmaster 27.5" - 2015
Hillmaster 29 - 2015
Pro-Rider - 2015
Strobe - 2015
Zig-Zag - 2015
LaPierre
Pro Race 100 - 2012
Pro Race 200 - 2010-2012
Pro Race 229 - 2012
Pro Race 300 - 2010-2012
Pro Race 400 - 2010-2012
Pro Race 500 - 2010-2012
Pro Race 529 - 2012
Pro Race 700 - 2010-2012
Pro Race 900 - 2010
Pro Race Team - 2011
Spicy 916 - 2009-2010
X-Control 700 - 2011
X-Control 710 - 2010
X-Control 900 - 2010
X-Control 910 - 2010-2011
X-Control Team - 2011
X-Flow 312L - 2012
X-Flow 412 - 2012
X-Flow 512 - 2012
X-Flow 612 - 2012
X-Flow 912 - 2012
Zesty 314 - 2012
Zesty 514 - 2011-2012
Zesty 714 - 2009-2012
Zesty 914 - 2009-2012
M2S
Cargo Scout - 2022-2023

Cube

Aerium C:62 Race 2016
Aerium C:62 SL 2016
Aerium C:62 SLT 2016
Aerium HPC 2008-2011
Aerium SHPC 2013
Aerium Super HPC Race 2014
Aerium Super HPC Race 2015
Aerium Super HPC SL 2014-2015
Aerium Super HPC SLT 2014-2015

Kuota

Kebel 2010
Khan 2016
Kharma 2010
Kharma Race 2010
Khydra 2016
Kiral 2016
Kobalt 2016
Korn 2010
Kredo Ultra 2010
Kross 2010
Kryon 2016
Kryon Disc 2016
Kull 2010

Stevens
lzoard Carbon 2013-2015
SLR 2009-2013
Vantage 2009-2011
Vantage 2014-2015
Xenon 2009-2010

Marcello
HP1 2015

Isaac
Element 2014
Kaon 2014

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with: (1) M5x8mm Socket Head Screw
- Thru Axle Pitch: M12x1.5
- Fasteners Included
- Kinesis: Dropout 19

DROPOUT-635 is compatible with a M12x1.5 thru axle. DROPOUT-636 is compatible with a M12x1.75 thru axle.


Cinelli

Nemo Tig Disc - ALL

Eddy Merckx

Hageland Disc - Various

Kinesis

GTD - Various
Tripster ATR Ti Vol.3 - Various
Tripster ATR Ti Vol.3 - Various
Tripster ATR Ti Vol.3 - Various
Tripster ATR Ti Vol.3 - Various
Tripster ATR Ti Vol.3 - Various
Tripster ATR Ti Vol.3 - Various

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Attaches to frame with: (1) M5x8mm Socket Head Screw
- Thru Axle Pitch: M12x1.75
- Fasteners Included
- Orange: PHAJCTW1024, Kinesis: Dropout 21, Vaaru: VC020

DROPOUT-635 is compatible with a M12x1.5 thru axle. DROPOUT-636 is compatible with a M12x1.75 thru axle.

Cinelli

Nemo Tig Disc - ALL

Kinesis

Fernweh - Various

Orange

T7 - Various
T9 - Various

Pipedream

Moxie Ti - 2018
The Full Moxie - Various

Vaaru

650 - Various

BMC

Fourstroke 01 2005
Fourstroke 02 2005
Fourstroke 03 2005
Fourstroke 04 2005
Fourstroke 05 2005
Fourstroke FS 01 2006-2007
Fourstroke FS 02 2006-2007
Fourstroke FS 03 2006-2007
Fourstroke FS 04 2006-2007
Fourstroke FS 05 2006
Fourstroke W 01 2006
Fourstroke W 02 2006
Golddigger 2004-2005
Shiver FSW 01 2007-2008
Shiver FSW 02 2007
Shiver SH 01 2009-2011
Speedfox SF 01 2010-2011
Speedfox SF 02 2010-2011
Speedfox SF 03 2010-2011
Trailfox TF 01 2007-2010
Trailfox TF 02 2007-2010
Trailfox TF 03 2009
W26 2005

Univega
HT-550 Pre 2005

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Thru Axle Tread: M12x1.75
- Attaches to frame with:
- (1) M16x1 Nut
- Fasteners Not Included

COMPATIBILITY:

KTM

Bark 10 - 2016
Bark 20 - 2016
Bark 30 - 2016
Bark 40 - 2016
Canic CXC - 2017
Fat Flea - 2017
Fat Rat - 2017
Kapoho 27 - 2017
Lycan 27 Prestige II XX-1 - 2017
Macina Lycan 271 - 2017
Macina Race 291 - 2017
Myroon 29 Elite 22 - 2016-2017
Myroon 29 Masta 12 - 2016-2017
Myroon 29 Prestige 22 - 2016-2017
Myroon 29 Prime 11 - 2016-2017
Revelator Sky - 2017
Scarp 29 Prestige 22 - 2017
Scarp 29 Prime 12 - 2017
Scrap 29 Sonic 12 - 2017
Ventura Vamos - 2017

All Wheels Manufacturing replacement derailleur hangers are produced in our Colorado shop to exacting tolerances.

- CNC machined 6061 aluminum
- Black anodized finish
- Attaches to frame with: (1) M5x10mm Custom Screw
- Fasteners Not Included
- Scott: 266778

COMPATIBILITY:

SCOTT

Contessa Speedster 15 - 2017-2020
Contessa Speedster 25 - 2017-2020
Contessa Speedster 35 - 2017-2020
Contessa Speedster 45 - 2017-2020

Attaches to frame with (1) M8 Chainring Bolt
Fastener Included

Redline
Conquest - 2009
Conquest - 2010
Conquest - 2011
Conquest - 2012
Conquest 24 - 2004-2011, 2013
Conquest 24 Disc - 2013
Conquest Cyclo Cross - 2004-2005
Conquest Sport - 2004-2011
Conquest Sport 20 - 2010
Conquest Sport 24 - 2010
Conquest Sport 24 - 2011
Metrosport - 2010
Metrosport - 2012-2013
