Bottom Bracket

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Angular Contact sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

*For use with BB30 WIDE 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).

*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

*For use with BB30 Wide 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).

*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Our solution for running a 30mm spindle crankset in a BSA threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature Enduro 6806 Ceramic Hybrid sealed bearings outboard of the BB shell. Fully serviceable.

Notes:

*For use with BB30 Wide 30mm diameter cranks with a spindle length of at least 104mm (BB30 Wide, BB30a, 386EVO, Rotor 3D+, SRAM BB30 Wide).

*Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!

*Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

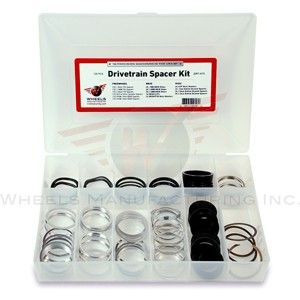

Wheels MFG Bottom Bracket/Drivetrain 120 piece spacer kit
•(20) 1.0mm FW Spacers •(10) 1.5mm FW Spacers •(10) 2.0mm FW Spacers •(10) NCS-4.5mm Cassette Spacers •(10) SHIM-.3MM BB30 Spacers •(10) SHIM-.5MM BB30 Spacers •(6) .7mm BB30 Shims •(6) 1.8mm BB30 Shims •(9) 2.5mm BB30 Shims •(4) BB30-CLIPs •(4) BB30/PF30 Wave Washers •(4) GXP Wave Washers •(4) .7mm Bottom Bracket Spacers •(4) 1.8mm Bottom Bracket Spacers •(9) 2.5mm Bottom Bracket Spacers

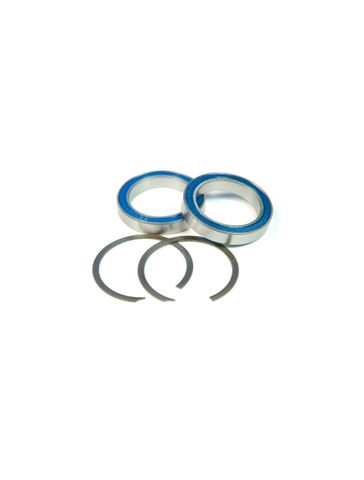

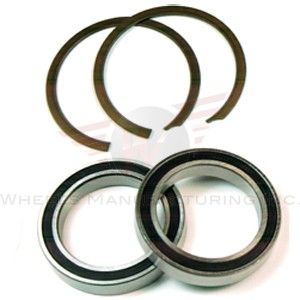

Service Kit includes SB-6806 sealed bearings and 2 retaining clips.

Fits standard BB30 frames

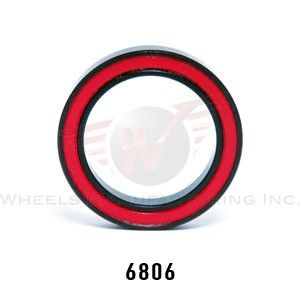

BB30 service kit for SRAM DUB cranks includes (2) Enduro 6806/29 ABEC-3 sealed bearings and 2 retaining clips.

Bearing Dimensions: OD: 42mm / ID: 29mm / Width: 7mm
Enduro ABEC-3 bearings
Use with SRAM DUB cranks

Note: SRAM DUB cranksets are not designed to work in 68mm or 73mm wide shells with inboard bearings. Use only if your frame is a direct-fit bearing system, and the BB shell width is 86.5mm or wider.

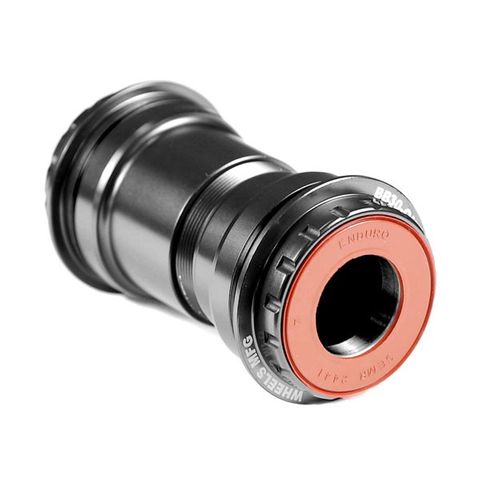

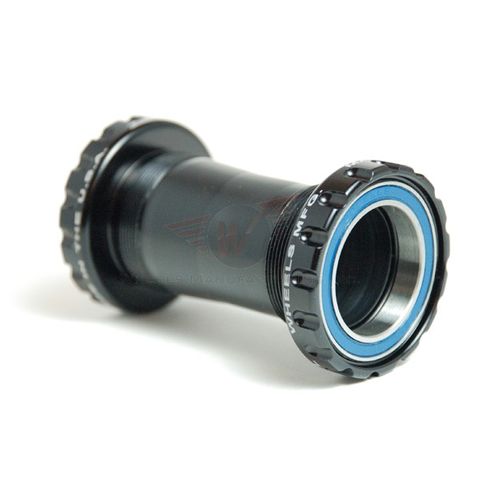

Wheels Manufacturing’s new BB30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24mm (Shimano, FSA, Etc.) cranks into BB30 frames without the need for any adapters.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm

Wheels Manufacturing’s new BB30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into BB30 frames without the need for any adapters.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm

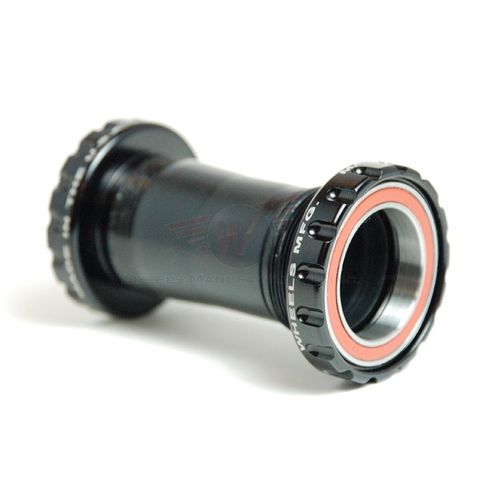

Wheels Manufacturing’s new BB30 to Outboard bottom bracket is designed for installing 24mm (Shimano, FSA, Etc.) cranks into BB30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm

Wheels Manufacturing’s new BB30 to Outboard bottom bracket is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into BB30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mm

The BBMULTI-SHIM kit adapts Shimano or similar 24mm cranks to virtually any BB30/PF30/BB30a frame, including mountain bikes, 2x10 systems, narrow-shell road bikes, road triples, etc. For use only with bottom bracket shell widths from 68mm to 83mm.

This kit includes 2 adapter shims and a 14-piece assortment of left and right side spacers.

Simply tap the adapters into the 6806 bearing in the BB shell or cups, then install the cranks using the included spacers to adjust chainline, or to take up any side-to-side movement in the crank.

Machined engineering-grade Delrin.

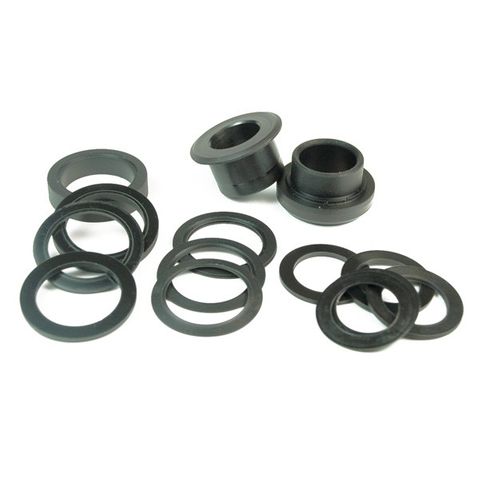

The BBUNIV-SRAM kit adapts SRAM/Truvativ cranks to virtually any BB/PF30/BB30a frame, including mountain bikes, 2x10 systems, narrow-shell road bikes, road triples, etc. For use only with bottom bracket shell widths from 68mm to 83mm.

This kit includes 2 adapter shims and a 15-piece assortment of left and right side spacers.

Simply tap the adapters into the 6806 bearing in the BB shell or cups, then install the cranks using the included spacers to adjust chainline, or to take up any side-to-side movement in the crank.

Machined engineering-grade Delrin.

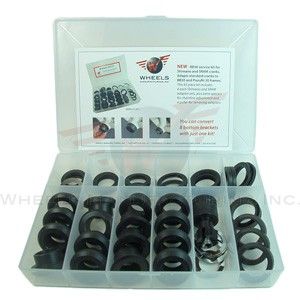

BB30/PF30 Universal Service Kit for Shimano and SRAM cranks

8 bikes worth of adapters in one kit!
Introducing our new system for adapting Shimano 24mm and SRAM/Truvativ 24/22mm cranks to virtually any BB30 or Pressfit 30 frame, including mountain bikes, 2x10 systems, narrow-shell road bikes, road triples, etc.

(8) SHIMANO adapter (24mm ID, Shimano right or left; SRAM right only)
(4) SRAM-LEFT adapter (22mm ID, SRAM left only)
(4) SRAM-RIGHT adapter (24mm ID, Shimano right or left; SRAM right only)
(12) 0.7mm spacer – right (24mm ID, Shimano right or left; SRAM right only)
(4) 1.8mm spacer - right (24mm ID, Shimano right or left; SRAM right only)
(4) 2.5mm spacer – right (24mm ID, Shimano right or left; SRAM right only)
(8) 1.0mm spacer - left (30mm ID, SRAM)
(4) 2.5mm spacer - left (30mm ID, SRAM)
(4) 5mm spacer - left (30mm ID, SRAM)
(4) 10mm spacer - left (30mm ID, SRAM)
(8) Wave washer
(1) Removal tool for pulling adapters out of bearings

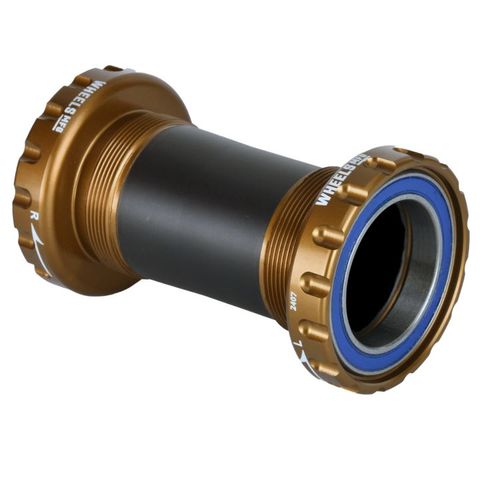

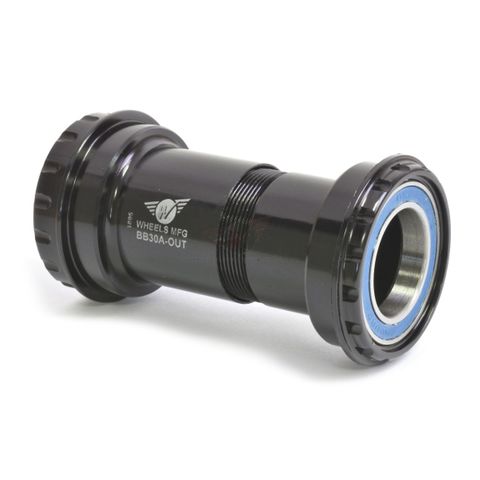

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately.**

- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in BB30A (42mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

- Bottom Bracket/Frame Interface: Cannondale BB30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 42mm
- Over Bearing Width: 91mm in 73mm wide shell*
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch

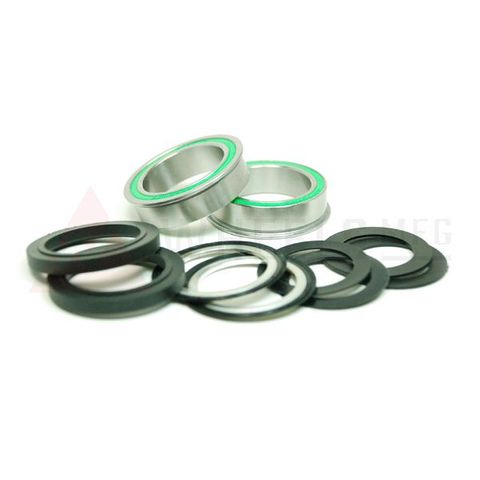

Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 28/30mm spindle Praxis - Compatible cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
(1) - 28mm spacer inse

BB86 TO 30MM FLANGED, DUAL ROW PRESSFIT 86/92 BOTTOM BRACKET

Expand your choice of cranks for use in BB86/BB92/BB91/BB71-41/BB107 frames. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks (FSA BB386EVO, Rotor 3d+, RaceFace Next SL, e.thirteen) cranks in your BB86/92 frame. These bearings fit directly in frames with 41mm ID smooth bore bottom bracket shells.You must use 30mm spindle cranksets with spindle lengths longer than 104mm

Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Enduro silicone seals

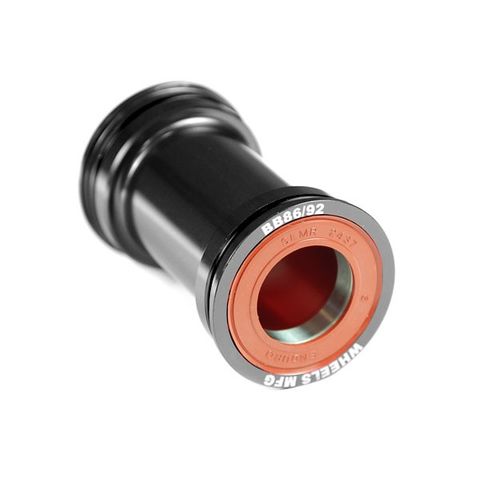

BB86/92 THREAD TOGETHER ANGULAR CONTACT BB FOR 24MM (SHIMANO) CRANKS - BLACK

Directly replaces all OEM BB86 products. Use with 24mm (Shimano, FSA, Etc.) cranks. Enduro ABEC 5 Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.


Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).


Weight: 98g
Made in the USA
Machined, anodized black aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Fits bottom bracket shell widths from 86mm to 92mm
Use with 24mm (Shimano, FSA, Etc.) cranks

BB86/92 THREAD TOGETHER ANGULAR CONTACT BB FOR 24/22MM (SRAM) CRANKS - BLACK

Directly replaces all OEM BB86 products. Use with 24/22mm (SRAM, Truvativ, Etc.) cranks. Enduro ABEC 5 Angular Contact sealed bearings. Double lip seals on all bearings with high fill rate top quality grease for maximum durability. Machined aluminum is superior in function and durability to plastic. Fully serviceable.


Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).


Weight: 98g
Made in the USA
Machined, anodized black aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Fits bottom bracket shell widths from 86mm to 92mm
Use with 24/22mm (SRAM, Truvativ, Etc.) cranks

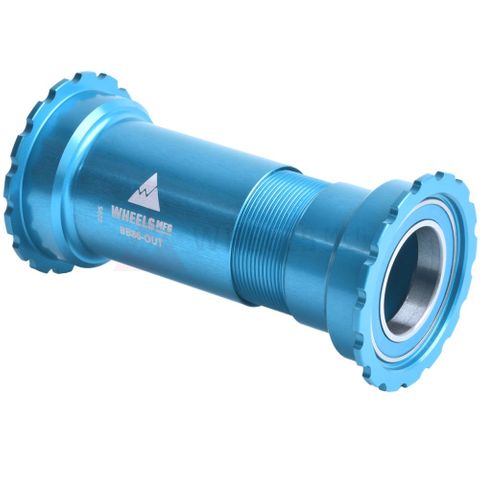

Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.

Notes:

* Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
** Wheels Mfg BB86 Outboard BB for use with 24/22mm spindle cranks will not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2). If your Quarq spider has an ID less than 49.5mm, it will not fit over our BBRIGHT-OUT cup.
*** The new Quarq DZero powermeter spiders will work with Wheels Mfg BB86-OUT BBs

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: SRAM / Truvativ GXP
Crank Spindle Diameter: 22/24mm

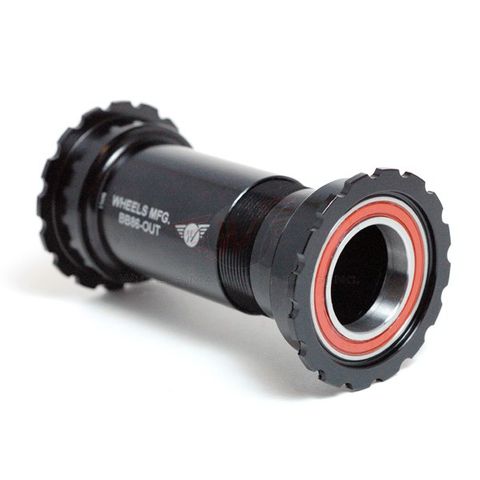

Our new BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Bearings: Enduro ZERØ Ceramic Hybrid
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mm

Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 29mm (SRAM DUB) spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals

Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
Bottom Bracket Shell Width: 86.5mm - 132mm
Bottom Bracket Shell I.D.: 41mm
Flange OD: 42mm
Crank Spindle Diameter: 29mm (DUB)
Over Bearing Width: 92mm in 86.5mm wide shell*

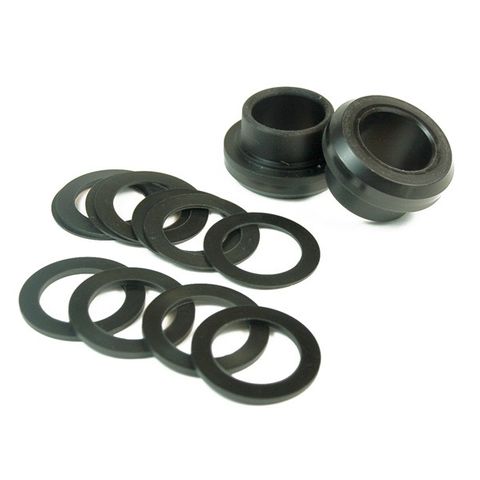

Wheels MFG BBRIGHT, BB30A & PF30A ADAPTER FOR 24MM SPINDLE

A new solution for adapting Shimano cranks to BBRight-standard frames

Compatible with 2011-2012 Cervelo models R3, R3 Team, S5, S5 Team, S5 VWD, and R5 VWD (not compatible with R5ca direct-fit bb)

Also adapts Cannondale BB30a and PF30a frames to 24mm spindle cranks (Shimano, FSA, etc.).

Includes eight 0.7mm shims for fine-tuning chain line

Machined engineering-grade Delrin. 48g/pr
