Bottom Bracket

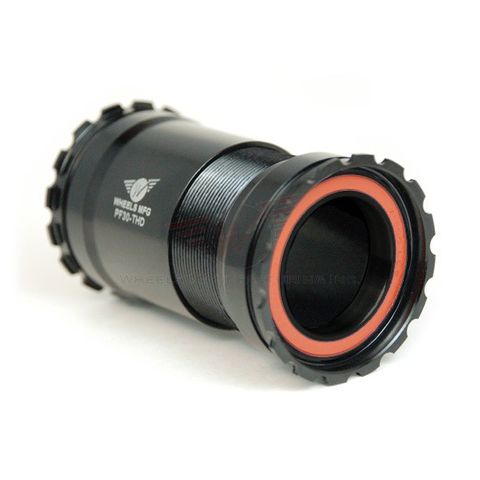

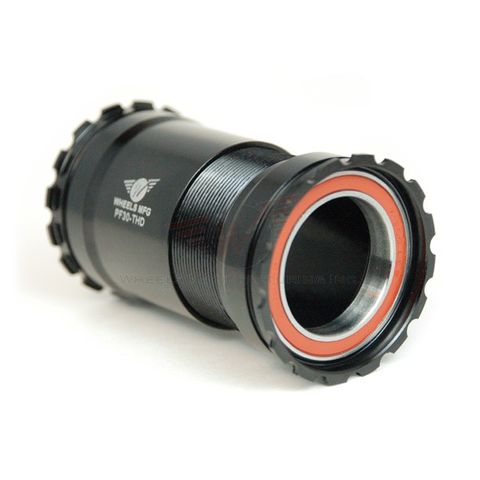

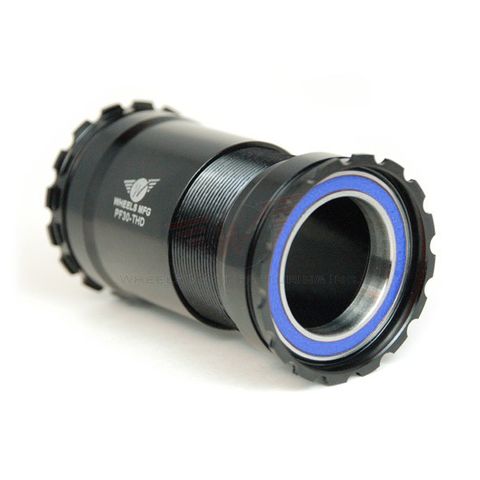

New PF30 bottom bracket with threaded cups. Don't rely on questionable frame tolerances. Our threaded cups ensure a tight, noise-free bottom bracket with proper bearing alignment.

Direct replacement for SRAM, FSA, and other PressFit 30 bottom brackets!

Made in the USA
Anodized black, machined aluminum shell
6806 (30mm ID) Enduro ABEC 5 "ZERØ" Ceramic Hybrid bearings
Dual silicone seals keep the contamination out for longer life
Adaptable BB to fit PressFit 30 specific frames (46mm ID) with shell widths from 61mm to 86.5mm
Will accept current 30mm spindle cranksets, as well as 24mm and 24/22mm cranksets using Wheels Mfg. adapter shims
Packaged for retail display


Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

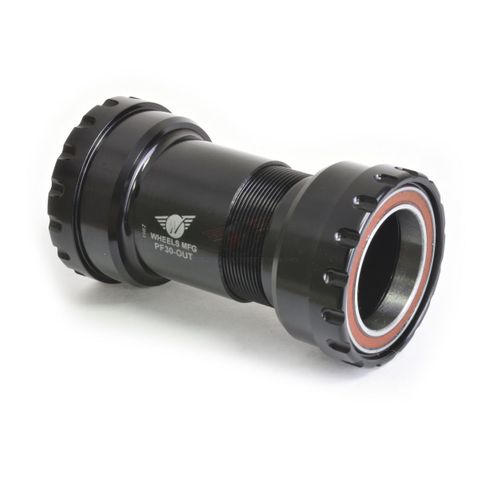

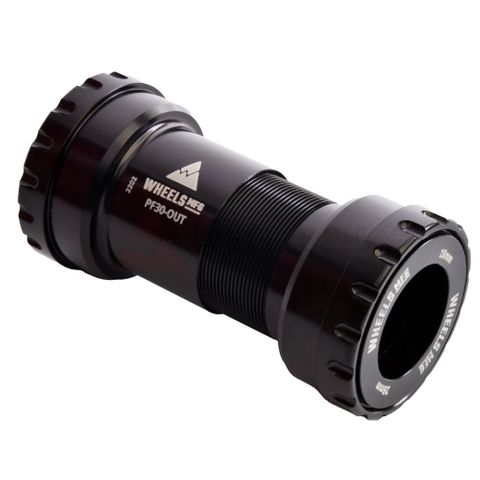

By popular demand, we've added this PF30 with outboard bearing BB for use with 30mm spindle cranksets when used in PF30 frames. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

** Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

Bearings: Enduro Angular contact
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 83mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch

* Specialized Carbon OSBB with 61mm shell width will need additional 3.5mm cup spacers.

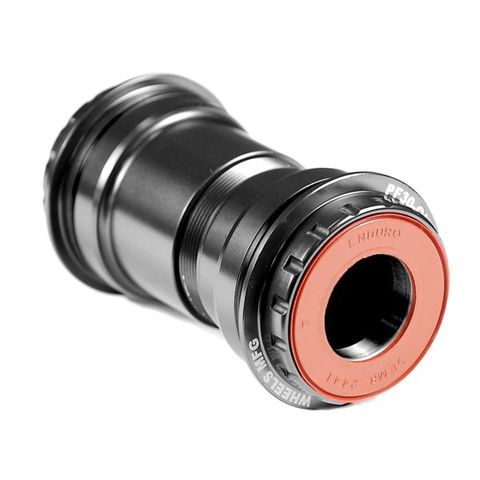

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without the need for any adapters.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro ABEC 5 angular contact bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 5 angular contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm

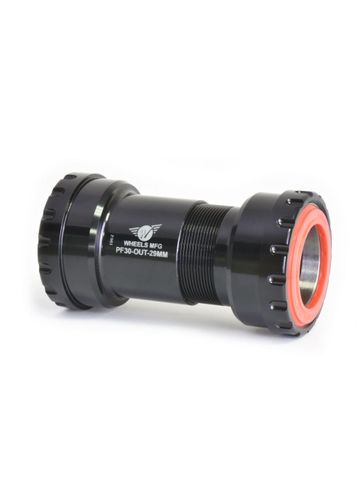

PF30 bottom bracket with outboard bearings for use with M30 28/30mm spindle Praxis - comptiable cranksets. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

 Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 28/300mm
Tool Pattern: 48.5mm x 16 notch

By popular demand, we've added this PF30 with outboard bearing BB for use with 30mm spindle cranksets when used in PF30 frames. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

** Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 83mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch

* Specialized Carbon OSBB with 61mm shell width will need additional 3.5mm cup spacers.

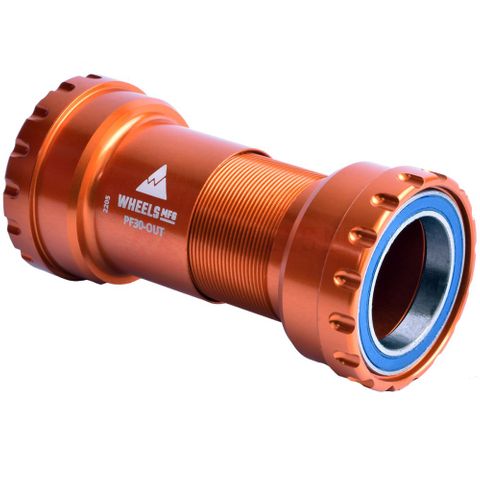

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket is designed for installing 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket with Enduro Ceramic Hybrid bearings is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.

Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro Ceramic Hybrid sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm

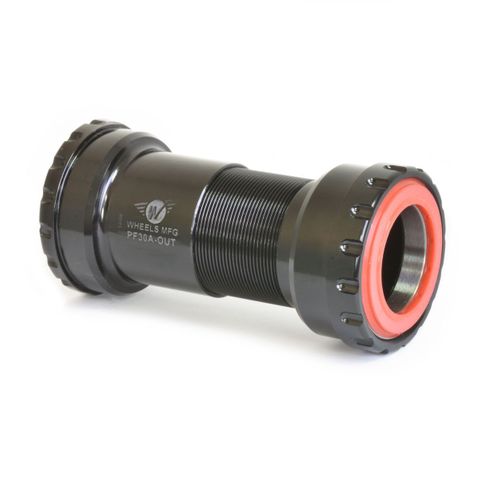

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing SRAM DUB Compatible cranks in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames.

Bottom Bracket Includes:

BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer

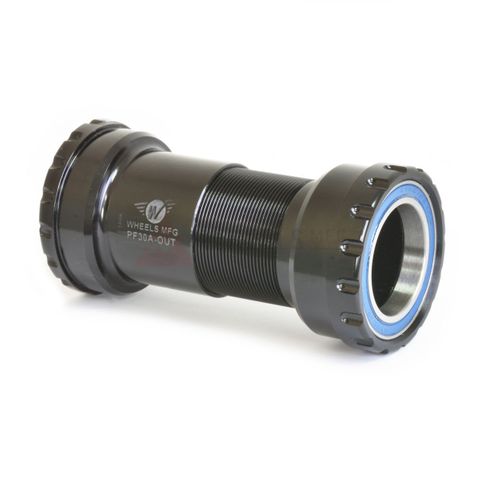

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

**Note: FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! Please purchase our FSA 24.07x37 ceramic hybrid bearings separately. **

- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 24.00mm
- Tool Pattern: 44mm x 16 notch

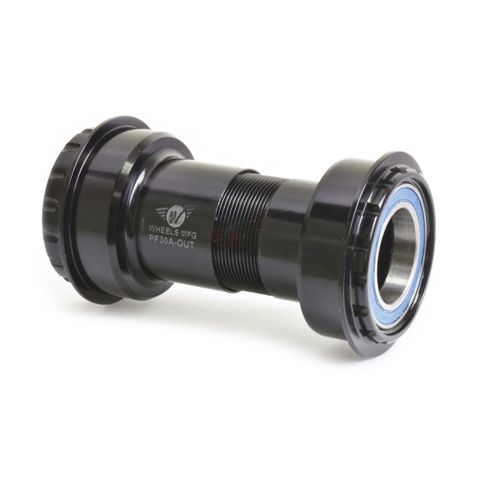

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.

- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 22/24mm
- Tool Pattern: 44mm x 16 notch

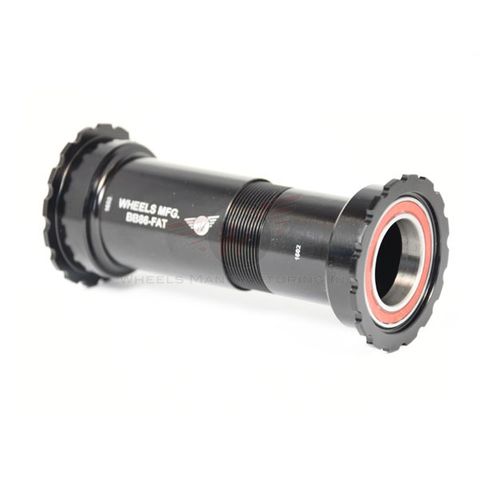

PRESSFIT 41MM ANGULAR CONTACT FAT BIKE BB FOR 24MM (SHIMANO) CRANKS - BLACK

BB86 threaded BB for Fat Bike PF41.

Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

PRESSFIT 41MM ANGULAR CONTACT FAT BIKE BB FOR 24/22MM (SRAM) CRANKS - BLACK

BB86 threaded BB for Fat Bike PF41.

Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

PRESSFIT 41MM ABEC-3 FAT BIKE BB FOR 24/22MM (SRAM) CRANKS - BLACK

BB86 threaded BB for Fat Bike PF41.

Machined cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.

This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter bottom bracket shell, with a width of 121mm or 132mm.

Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).

Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: SRAM / Truvativ GXP
Crank Spindle Diameter: 22/24mm

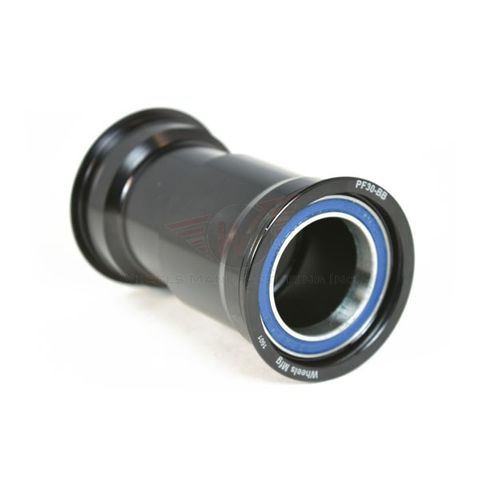

Wheels MFG Pressfit 30 Bottom Braket

- Economical and reliable BB to fit Pressfit 30-specific frames (46mm ID)
- Machined aluminium cups with 6806 (30mm ID) sealed bearings and exterior seal system
- Adaptable for 61mm to 86.5mm shell widths
- Will accept current 30mm spindle cranksets, as well as 24mm cranksets using Wheels Mfg. adapter shims
- Bearings: Enduro ABEC-3
- Bottom Bracket/Frame Interface: PF30, BB386EVO, Specialized Carbon OSBB, BBRight™ Press Fit

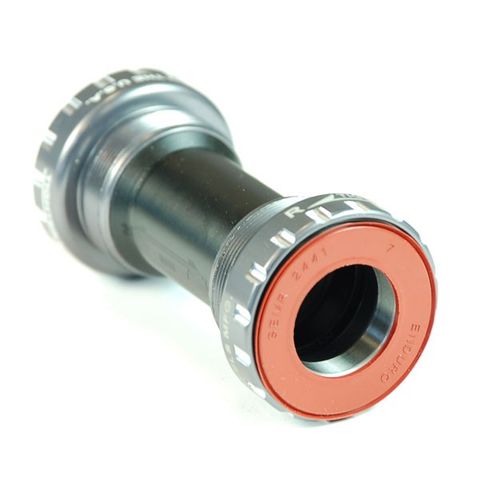

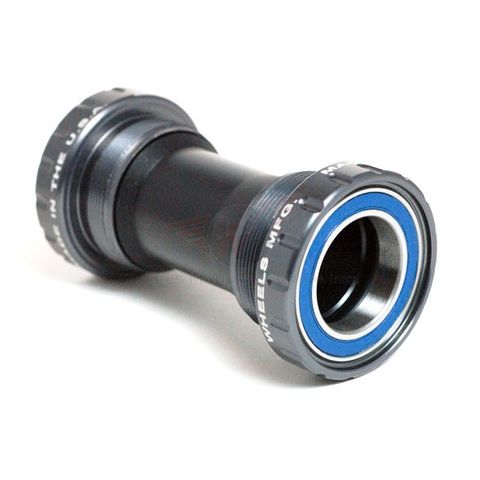

Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 3 sealed bearings. Compatible with 24/22mmmm (SRAM, Truvativ, Etc.) cranks. Fully serviceable.

Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm spindle (SRAM, Truvativ, Etc.) cranks

Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks

Wheels Manufacturing’s standard outboard bottom bracket features Enduro ABEC 5 angular contact bearings. Compatible with 24/22mm (SRAM, Truvativ) cranks.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm spindle (SRAM, Truvativ) cranks

T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have internal bearings, and can be used in BB shells with widths from 68mm to 132mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

T47 threaded BB cups for T47 frames and 24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

T47 threaded BB cups for T47 frames and 22/24mm diameter spindle cranks. Cups have internal bearings, and are typically used in BB shells with widths wider than 73mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

** Notes:

Wheels Mfg T47 internal bearing BB for use with 24/22mm spindle cranks may not work with Quarq SRAM/GXP cranksets (Elsa, Riken, SRAM Red 22, SRAM S975, SRAM S2275, CinQo Saturn, Saturn2) when used in BB shells with widths of 86.5mm and wider. If your Quarq spider has an ID less than 49.5mm, your crank may rub on the BB cup.
Compatible with Quarq DZero powermeter spiders with GXP spindles except Eagle MTB.

T47 threaded BB cups for T47 frames and 30mm diameter spindle cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
