Forks

Surly Steamroller Fork 700c 1-1/8" Threadless Black

· CroMoly tubing, flat crown, brazed construction
· Accepts tires up to 700c x 38mm, drilled for standard-reach brake
· No eyelets
· 9mm Brake Bolt to Crown Length
- Axle to Crown Length (mm): 375 mm
- Fork Rake (mm): 38 mm
- Steerer Tube Length (mm): 300 mm

Specifications

Axle to Crown Length: 380 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Material: Steel
Maximum Tyre Clearance (Fork): 650b x 48mm
Offset: 44 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 360 mm
Steerer Type: Straight
Weight: 1134 g
Wheel Size: 650b

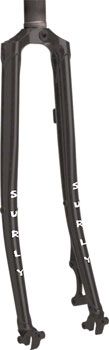

Our Straggler fork is very much like our Cross-Check fork…it’s a lugged and brazed CroMoly fork with room for 700c tires up to 50mm wide. Both feature fender and rack mount eyelets at the dropouts, mid-blade threaded rack mounts and threaded eyelets on the sides of the crown for accessories. Both deliver a resilient ride and are finished in black powdercoat. The Straggler fork is equipped with a 51mm I.S. disc caliper mount and no accommodation for rim brakes.

Axle-to-crown: 400mm
Offset: 44mm
Steerer: 350mm, 1-1/8 straight
Tire Clearance: 50mm (w/o fender) Weight: 2.5 lb (1.15kg) uncut

The Troll fork is just like the one that comes with the Troll frame.

Disc or rim brake compatible
Compatible with disc brakes and rack simultaneously
Fits 26" wheels with clearance for a 3.0" tire
Non-Suspension Corrected Length

Axle to Crown Length: 420 mm
Steerer Tube Length (mm): 310 mm
Rotor Size (Fork): 180

The No.7 Road fork is a thoroughly modern design, compatible with road bikes that utilize tapered steerer tubes. Features include a 12mm thru-axle for precise handling, clearance for high-volume road tires and internal cable routing. Flat mount disc brake capability offers clean caliper fitment, and backwards compatibility with post mount brakes.

- Axle to Crown Length: 367 mm
- Brake Mount (Fork): Flat Mount 160 , Flat Mount 140
- Front Axle: 12mm Thru x 100mm
- Offset: 45 mm
- Steerer Type: Tapered
- Steerer Tube Length (mm): 300 mm
- Weight: 460 g
- Maximum Tyre Clearance: 28mm

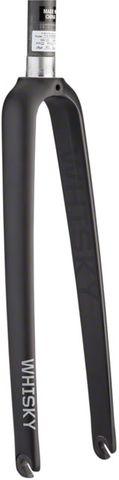

The No.7 Road fork is a thoroughly modern design, compatible with road bikes that utilize tapered steerer tubes. Features include 9mm x 100mm QR dropouts and brake mount for short-reach caliper rim brakes, to easily accommodate standard road wheels. The fork offers low weight, precise handling and tire clearance for up to 700 x 28c tires.

- 9mm x 100mm spacing
- For use with short reach caliper rim brakes
- 700 x 28c max recommended tire size
- ASTM Condition 1 - For use on paved surfaces
- Includes Whisky Parts Co. compression plug

Axle to Crown Length: 367 mm
Brake Mount (Fork): Short Reach Caliper (39mm - 49mm)
Front Axle: 9mm x 100mm
Offset: 45 mm
Steerer Type: Tapered
Steerer Tube Length (mm): 300 mm
Weight: 395 g

Whisky No. 7 Road Plus Fork, QR, Straight Steerer, Fender Mounts, Matte Black

The No.7 road fork features full unidirectional carbon construction

- Mid-Reach Caliper rim brake compatible
- 35c max recommended tire size
- ASTM Condition 2 - For off-road riding and jumps less than 12"
- No rider weight limit
- 5 year Whisky warranty

29er Fork

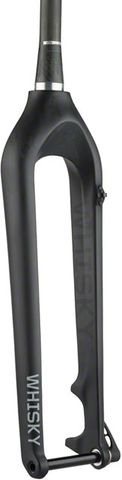

The No.9 Thru Axle Mountain fork features full unidirectional carbon construction with tapered steerer tube and thru-axle dropouts for strength and predictable steering.

ASTM Condition 3 - For rough off-road riding and jumps less than 24"
Custom DT RWS Skewer and compression plug included
15mm thru-axle, 100mm spacing
No rider weight limit
Axle to Crown Length: 483 mm
Brake Mount (Fork): Post Mount 160
Color: Matte Carbon
Crown Race: 40
Defined Color: Black
Front Axle: 15mm Thru x 100mm
Maximum Tire Clearance (Fork): 3.0"
Offset: 51 mm
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 300 mm
Steerer Type: Tapered
Weight: 730 g
Wheel Size: 29"

The Whisky No.9 CX Flat Mount fork is a lightweight, forward-compatible front-end upgrade, ideal for cyclocross, singletrack, gravel, or commuting. Redesigned, thoroughly tested, and dialed in for rough, off-road riding, it features the flat-mount disc brake standard, easy fender mounts, 12mm thru-axle dropouts, and internal brake routing for a refined, clean design. The fork provides big tire clearance, precise handling and tracking capabilities, and a comfortable ride quality that Whisky forks are known for.

- 12mm thru-axle, 100mm spacing
- Designed for flat-mount disc brakes
- 700c x 42mm or 650b x 50mm max recommended tire size
- Fender eyelets on outside of fork leg for easy mounting
- ASTM Condition 3 – For rough off-road riding and jumps less than 24
- Includes thru-axle and Whisky Parts Co. compression plug
- 45mm Offset
- Axle to Crown 395mm

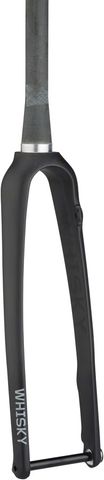

The Whisky No.9 Road thru-axle fork is designed from the ground up to offer a modern road fork experience. Big tire clearance, flat mount brake capability, and internal cable routing all add up to a clean look, and capable performance. Featuring hidden fender mounts, this fork carries through with Whisky’s promise of refined, versatile performance.

- 1-1/4” Tapered steer tube
- 12mm thru-axle, 100mm spacing
- Designed for flat mount disc brakes
- Hidden, removable fender mounts
- Includes thru axle and Whisky Parts Co. compression plug
- Suggested max rider weight 250lbs
- Offset 45mm
- Axle-to-Crown 367mm
- Max Tyre 700 x 32

The No.9 Road Plus fork is an all-road fork designed for versatility with lots of clearance for big tires. Features include a tapered steerer tube and 12mm thru-axle for precise handling, while hidden and removable fender mounts make this fork all season capable. Flat mount disc brake capability offers clean caliper fitment, and backwards compatibility with post mount brakes.

- 12mm thru-axle, 100mm spacing
- Designed for flat mount disc brakes
- Hidden, removable fender mounts
- Clearance for 700x38c or 650x47c max tire sizes
- ASTM Condition 2 - For off-road riding and jumps less than 6"
- Includes thru axle and Whisky Parts Co. compression plug
- Adaptor required for post mount brakes, sold separately
- Steerer Tube Length (mm): 350 mm
- Axle to Crown Length: 383 mm
- Weight: 440grams
- Offset: 51mm
