WHEELS MFG BB/CASSETTE SPACER

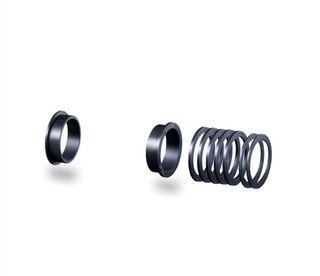

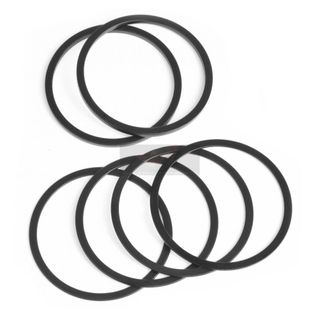

Aluminum spacer for ISO/English or BSA threaded bottom brackets. Spacers fit between bottom bracket cup and frame. Great for fine tuning bottom bracket shells or improving chainline.
Outer Diameter: 40.7mm
Inner Diameter: 34.9mm
Thickness: 0.7mm
Machined aluminum
Anodized Black
Sold 1 spacer per bag
Aluminum spacer for ISO/English or BSA threaded bottom brackets. Spacers fit between bottom bracket cup and frame. Great for fine tuning bottom bracket shells or improving chainline.
Outer Diameter: 40.7mm
Inner Diameter: 34.9mm
Thickness: 1.8mm
Machined aluminum
Anodized Black
Sold 1 spacer per bag
Aluminum spacer for ISO/English or BSA threaded bottom brackets. Spacers fit between bottom bracket cup and frame. Great for fine tuning bottom bracket shells or improving chainline.
Outer Diameter: 40.7mm
Inner Diameter: 34.9mm
Thickness: 2.5mm
Machined aluminum
Anodized Black
Sold 1 spacer per bag
Webshops and Bike shops
Related Products
-
Description
Service Kit includes SB-6806 sealed bearings and 2 retaining clips.
Fits standard BB30 frames -
Description

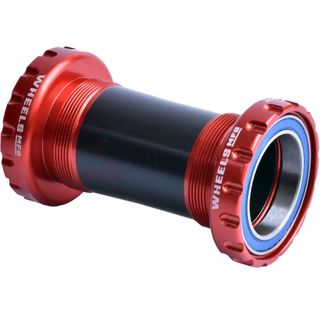

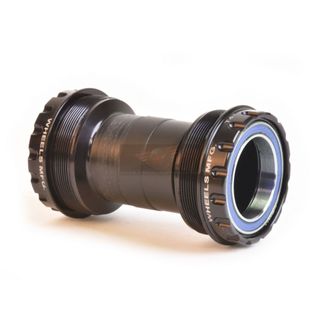

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket is designed for installing 24mm (Shimano, FSA, Etc.) cranks into PF30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm -
Description
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 24x fits 68mm and 73mm shell widths with 24mm spindles.
It’s a silky smooth, long-lasting bottom bracket built around King’s legendary, angular-contact bearings, either steel or ceramic. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- A Fit Kit is required for use
- Engineered, manufactured and assembled in Portland, Oregon USA
- Uses Chris King bottom bracket cup tool for installation -
Description

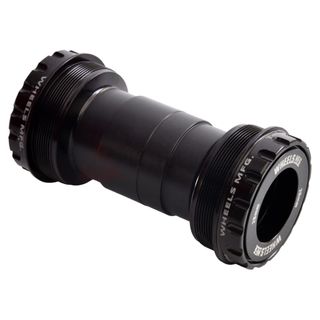

The solution for running a 30mm spindle crankset in a Italian threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
- For use with 30mm diameter cranks with a spindle length of at least 106mm when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
- Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH! -
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum.
