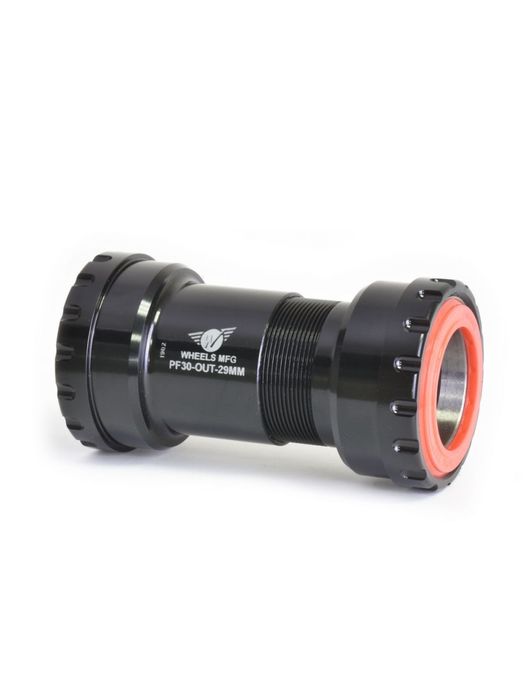

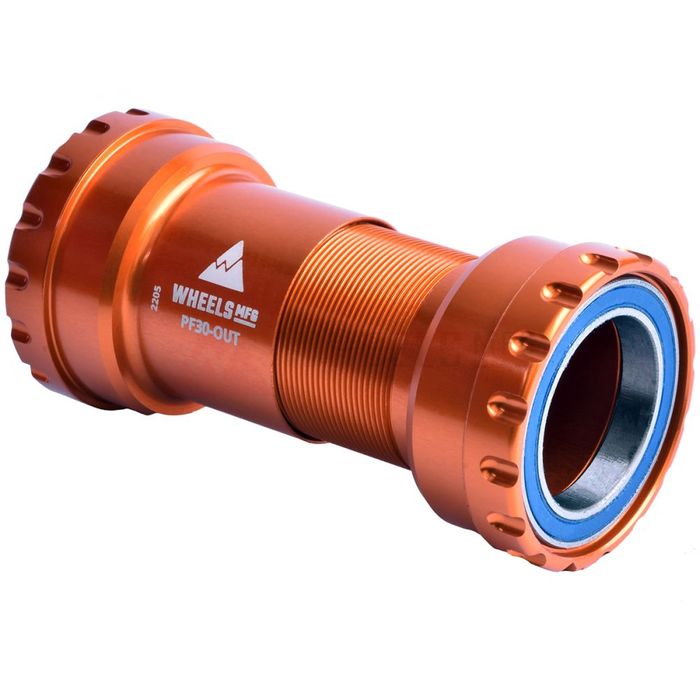

WHEELS MFG PF30 OUTBOARD SRAM DUB
By popular demand, we've added this PF30 with outboard bearing BB for use with 29mm spindle SRAM DUB cranksets when used in PF30 frames. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16 notch
By popular demand, we've added this PF30 with outboard bearing BB for use with 29mm spindle SRAM DUB cranksets when used in PF30 frames. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16 notch
Webshops and Bike shops
Related Products
-
Description
By popular demand, we've added this PF30 with outboard bearing BB for use with 29mm spindle SRAM DUB cranksets when used in PF30 frames. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16 notch -
Description

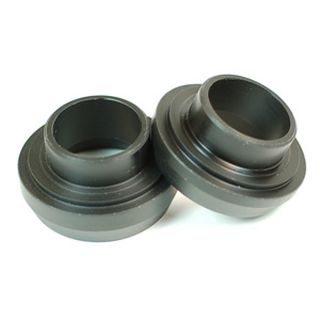

For DUB mountain cranks there are a few extra fitments notes to be aware of.
If you have a 68mm BB shell and a THREADFIT30, BSA bottom bracket you will need two of these 2.5mm Cup Spacers. -
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum. -
Description
The Blackbearing bottom bracket range has been specifically developed to withstand the most extreme conditions.
The BBlock technology (built in 2 threadable parts) allows a better alignment of the casing in its assembly offering several advantages:
- minimizes possible cracks
- greater protection to the bearing extending its useful life
- an easier replacement of the bearing.
CNC machined aluminum. -
Description
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 24i fits 86mm and 92mm shell widths with 24mm spindles.
All our bottom brackets come with King’s legendary, angular-contact bearings. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
The Fit Kit for our ThreadFit™ T47 24i is available here.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- Engineered, manufactured and assembled in Portland, Oregon USA
- A Fit Kit is required for use
- Uses Chris King bottom bracket cup tool for installation
