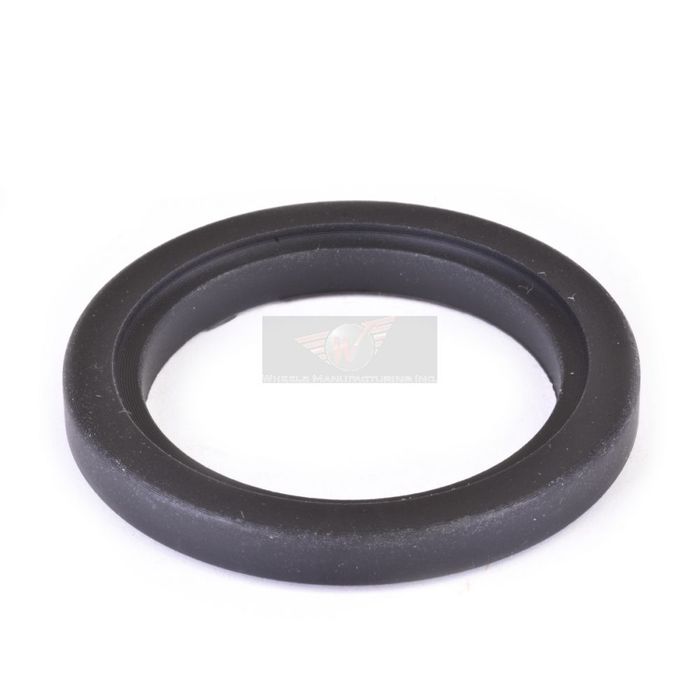

WHEELS MFG BB30 SPINDLE SPACER
Used to adjust crank chainline or take up any slack when using 30mm spindle cranks.
Inner Diameter: 30mm
Outer Diameter: 41.5mm
Thickness: 5mm
Sold Individually

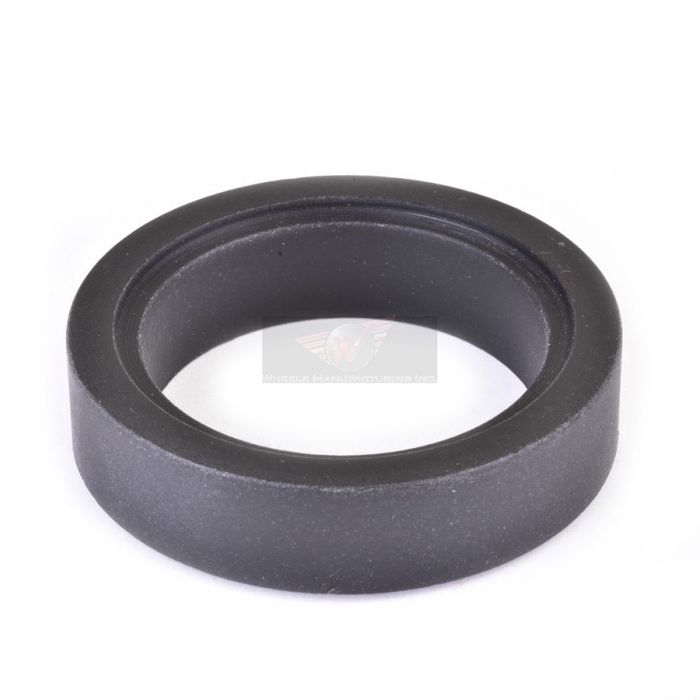

Used to adjust crank chainline or take up any slack when using 30mm spindle cranks.
Inner Diameter: 30mm
Outer Diameter: 41.5mm
Thickness: 10mm
Sold Individually
Webshops and Bike shops
Related Products
-
Description
Wheels MFG BBright reducer to Sram 24-22mm step axle cranks
For adapting SRAM cranks to BBRight-standard frames
Compatible with 2011-2012 Cervelo models R3, R3 Team, S5, S5 Team, S5 VWD, and R5 VWD (not compatible with R5ca direct-fit bb)
Note: This adapter is not compatible with the FSA BBRight bottom bracket
Includes eight 0.7mm shims for fine-tuning chain line
Machined engineering-grade Delrin. 48g/pr -
Description

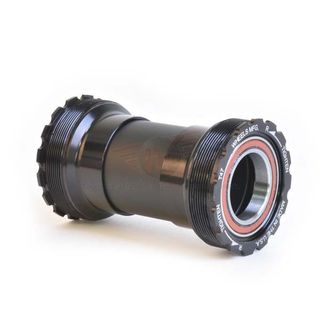

New PF30 bottom bracket with threaded cups. Don't rely on questionable frame tolerances. Our threaded cups ensure a tight, noise-free bottom bracket with proper bearing alignment.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Direct replacement for SRAM, FSA, and other PressFit 30 bottom brackets!
Made in the USA
Anodized black, machined aluminum shell
6806 (30mm ID) Enduro Angular Contact bearings
Dual silicone seals keep the contamination out for longer life
Adaptable BB to fit PressFit 30 specific frames (46mm ID) with shell widths from 61mm to 86.5mm
Will accept current 30mm spindle cranksets, as well as 24mm and 24/22mm cranksets using Wheels Mfg. adapter shims
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29). -
Description
The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames without the need for any adapters.
- Bottom Bracket/Frame Interface: Cannondale PF30A
- Bottom Bracket Shell Width (mm): 73mm
- Bottom Bracket Shell I.D.: 46mm
- Crank Spindle Diameter: 22/24mm
- Tool Pattern: 44mm x 16 notch
