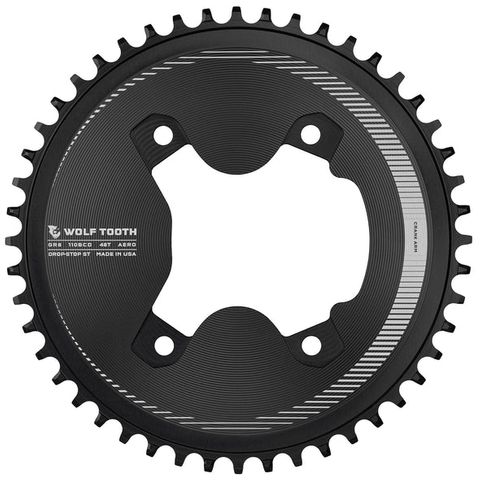

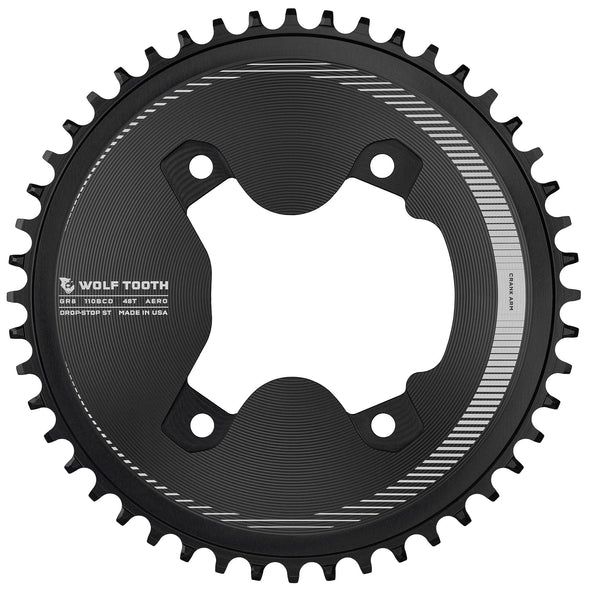

WOLF TOOTH AERO 110 ASYMMETRIC GRX CHAINRINGS
Designed for racing, and for those looking to optimize each detail in pursuit of speed, Wolf Tooth Aero Chainrings are strong, lightweight, and profiled to mate perectly with your crankset for a clean, integrated look. Taking advantage of 1x drivetrain systems and wider-range rear cassettes, Aero Chainrings are available in sizes 46T to 52T to provide similar overall range to standard 2x drivetrain configurations. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop ST is specifically for the Shimano 12-speed Hyperglide+ chain, which is used by GRX 12-speed.
Compatibility
- Aero chainrings available in sizes 46T - 52T. Sizes 36T - 44T are non-aero.
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop ST is designed for Shimano 12-speed Hyperglide+ chains
- Wolf Tooth’s patented Drop-Stop wide/narrow tooth profile provides the ultimate chain retention and mud-shedding ability
- Use Drop-Stop B for all SRAM Eagle, SRAM Road and Transmission (T-Type) Flattop chains, 9, 10, and 11spd chains or 12spd KMC, Connex, Wippermann, Campagnolo.
Designed for racing, and for those looking to optimize each detail in pursuit of speed, Wolf Tooth Aero Chainrings are strong, lightweight, and profiled to mate perectly with your crankset for a clean, integrated look. Taking advantage of 1x drivetrain systems and wider-range rear cassettes, Aero Chainrings are available in sizes 46T to 52T to provide similar overall range to standard 2x drivetrain configurations. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop ST is specifically for the Shimano 12-speed Hyperglide+ chain, which is used by GRX 12-speed.
Compatibility
- Aero chainrings available in sizes 46T - 52T. Sizes 36T - 44T are non-aero.
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop ST is designed for Shimano 12-speed Hyperglide+ chains
- Wolf Tooth’s patented Drop-Stop wide/narrow tooth profile provides the ultimate chain retention and mud-shedding ability
- Use Drop-Stop B for all SRAM Eagle, SRAM Road and Transmission (T-Type) Flattop chains, 9, 10, and 11spd chains or 12spd KMC, Connex, Wippermann, Campagnolo.
Designed for racing, and for those looking to optimize each detail in pursuit of speed, Wolf Tooth Aero Chainrings are strong, lightweight, and profiled to mate perectly with your crankset for a clean, integrated look. Taking advantage of 1x drivetrain systems and wider-range rear cassettes, Aero Chainrings are available in sizes 46T to 52T to provide similar overall range to standard 2x drivetrain configurations. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop ST is specifically for the Shimano 12-speed Hyperglide+ chain, which is used by GRX 12-speed.
Compatibility
- Aero chainrings available in sizes 46T - 52T. Sizes 36T - 44T are non-aero.
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop ST is designed for Shimano 12-speed Hyperglide+ chains
- Wolf Tooth’s patented Drop-Stop wide/narrow tooth profile provides the ultimate chain retention and mud-shedding ability
- Use Drop-Stop B for all SRAM Eagle, SRAM Road and Transmission (T-Type) Flattop chains, 9, 10, and 11spd chains or 12spd KMC, Connex, Wippermann, Campagnolo.
Webshops and Bike shops
Related Products
-
Description
Elliptical Direct Mount Chainrings for SRAM Cranks STANDARD / 6mm Offset FLATTOP
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- Also compatible with Cane Creek eeWing cranksets.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum. -
Description
Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
- Fits 110 BCD Asymmetric 4-bolt Shimano cranks
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703, and Tiagra 4700
- Sizes 38T and larger are compatible with Dura Ace 9100, Ultegra 8000 and 105 R7000 but a slight modification is required due to a change in the crank arm profile. The 36T chainring will not work for this modification. Click here to review the process for the modification, which takes about 5 minutes to perform.
- Wolf Tooth inventory of SH110 chainrings all have the notch cut to fit the R7000, R8000, & R9100. Note: The 36 tooth chainring can not be modified, it is not be compatible.
- Confirmed modification fit with Dura Ace 9100 power meter in size 42t or larger
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline 47.5mm -
Description

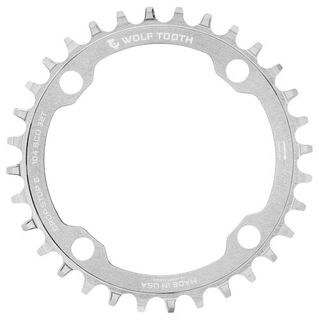

104 BCD is the most common bolt pattern on double and triple cranksets and happens to be the first product ever made my Wolf Tooth Components. The Drop-Stop® tooth design is the best performing and longest lasting wide/narrow chainrings on the market.
- Fits any 104 BCD crankset
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
- Drop-Stop B
Compatible with all 9,10,11spd chains
12spd Chains: SRAM Road & Transmission (T-Type) Flattop chains
SRAM Eagle
KMC
Connex
Wipperman
Campagnolo -
Description
Riders running SRAM Transmission w/ Race Face Cinch cranksets with a Boost 136/137mm spindle use a Cinch direct mount 0mm offset chainring.
These chainrings are for Race Face Cinch cranks such as Turbine, Next SL, Sixc & Aeffect, any Race Face Cinch system crankset.
The Wolf Tooth Cinch chainrings feature our patented Drop-Stop® tooth profiles for the best wear life, chain retention and mud clearance. We have optimized tooth profiles for SRAM T-Type Transmission.
Drop-Stop B is optimized for SRAM 12 spd Transmission (T-type) and Road Flattop chains but is compatible with all chains that work with Drop-Stop A. -
Description
Designed for gravel and road racing, and for those looking to optimize each detail in pursuit of speed, Wolf Tooth Aero Chainrings are strong, lightweight, and profiled to mate perfectly with your crankset for a clean, integrated look. Taking advantage of 1x drivetrain systems and wider-range rear cassettes, Aero Chainrings are available in sizes 46T to 50T to provide similar overall range to standard 2x drivetrain configurations. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. Drop-Stop B is optimized for SRAM Eagle and Flattop chains.
Wolf Tooth Aero 107 BCD Chainrings for SRAM Cranks are designed to pair seamlessly with the SRAM AXS 107 BCD Power Meter Spider.
- Fits SRAM AXS 107 BCD Power Meter Spider and SRAM 107 BCD Spider
- Drop-Stop technology prevents dropped chains. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris while reducing friction.
- SRAM Cranks that use the non-power meter 107 BCD spider also use the SRAM 8-bolt interface, which is compatible with Wolf Tooth Aero Direct Mount Chainrings for SRAM 8-Bolt, which we recommend for a cleaner, lighter weight setup.
Compatibility:
- Designed for 107 BCD Power Meter Spider. Fits standard 107 BCD spiders.
- Chainline is determined by crank model. See manufacturer specs for chainline.
- Use Drop-Stop B for all SRAM Eagle, SRAM Road and Transmission (T-Type) Flattop chains, 9, 10, and 11spd chains or 12spd KMC, Connex, Wippermann, Campagnolo.
