BOMBTRACK T47 SPINDLE ADAPTER
For use with all BOMBTRACK T47 30 mm Bottom Brackets.

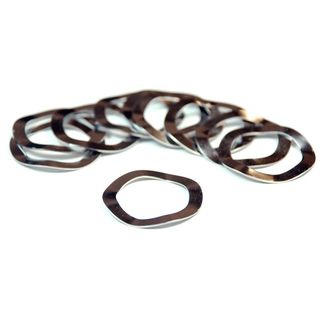

Includes: 1x2.5mm, 4x0.5mm + wave washer
For use with all BOMBTRACK T47 30 mm Bottom Brackets.
Includes: 2x2.5mm, 2x1mm, 4x 0.5mm washers
Webshops and Bike shops
Related Products
-
Description
IRD BB Cups Italian Pair
- Retrofit IRD QB-55 or QB-75 bottom brackets to work with Italian threaded frames
- Fits on Sugino CBB-F103
- May work with Tange-Seiki, and other BB brands as well -
Description
Wheels Manufacturing standard outboard bottom bracket features Enduro ABEC 5 Angular Contact sealed bearings. Compatible with 24mm (Shimano, FSA, Etc.) cranks. Fully serviceable.
In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Weight: 98g
Road (68mm Shell width) - Grey anodized, machined aluminum cups
Mountain (73mm Shell width) - Black or Red anodized, machined aluminum cups
Enduro ABEC 5 Angular Contact sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano, FSA, Etc.) cranks -
Description

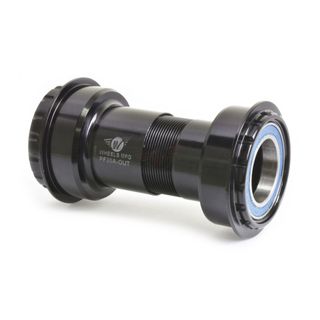

Wheels Manufacturing’s new PressFit 30 to Outboard bottom bracket is designed for installing 24/22mm (SRAM, Truvativ, Etc.) cranks into PF30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24/22mm (SRAM, Truvativ, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 46mm -
Description
The solution for running a 30mm spindle crankset in a Italian threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
- For use with 30mm diameter cranks with a spindle length of at least 106mm when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
- Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH! -
Description
Our BB86/92 thread together bottom bracket is a technical advancement of our well-loved slip fit BB86 bottom brackets. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Directly replaces all OEM BB86/92 bottom brackets. Overall width is still the same as all other BB86 bottom brackets.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Bearings: Enduro ABEC-3
Bottom Bracket/Frame Interface: BB86, BB92
Bottom Bracket Shell Width (mm): 86mm, 92mm, 89.5mm
Bottom Bracket Shell I.D.: 41mm
Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
Crank Spindle Diameter: 24mm
