WOLF TOOTH PREMIUM INTERNAL HEADSET FOR ENVE IN-ROUTE
Wolf Tooth Premium Internal Headsets for ENVE IN-Route System are designed and machined in Minnesota headquarters with aircraft-grade 6061 aluminum. They are designed to have an ultra-low stack height, to be lightweight, and durable. Wolf Tooth headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. Available in a variety of colors. Premium Headsets with Enduro stainless steel bearings carry a lifetime warranty.
COMPATIBILITY
- Designed for the ENVE IN-Route System with a 44mm straight headtube and a 1-1/8” to 1.5” tapered steerer tube (FITS ONLY ENVE In-Route System)
- Use top cap and split spacers provided with ENVE stems and one-piece cockpits.
- Use the compression plug that comes with your fork.
- Sold as a complete upper and lower EC44 Headset.

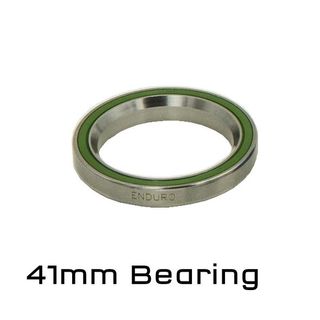

- Enduro stainless steel bearings included.
- Two 0.5mm spacers are included to dial in headset compression if necessary.
TECH SPECS
Material: 6061 Aluminum
Dimensions:
- Total Stack Upper Headset - 15.8mm
- Total Stack Lower Headset - 12.25mm
- For Headtube Internal Diameter - 44mm
- Cup External Diameter - 56.5mm
WEIGHTS:
Upper Headset - 69g
Lower Headset - 47g
Complete Headset - 116g
FEATURES
- Premium Enduro stainless steel bearings.
- Available in seven Wolf Tooth anodized colors to match other Wolf Tooth components.
- Designed with the Wolf Tooth triple-sealed system present on all other Wolf Tooth headsets:
- Internal o-ring top cap seal prevents water intrusion around the steerer tube.
- Custom-molded upper cup lip seal provides additional protection for the upper bearing.
- Custom molded dual-lip seal on the crown race to protect lower bearing in the toughest conditions.
Made in the USA
