WOLF TOOTH RIPSAW PEDAL
The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.
- One size: 118mm long x 102mm wide
- Twelve stainless steel, rear-loading grip pins on each side
- Six extra 4.5mm grip pins included
- Replacement parts and service guides available via Wolf Tooth Right to Repair
- Five-year warranty
- Exceeds all ISO safety standards
- Machined and assembled at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes 6 extra grip pins.
Compatibility
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
The new Ripsaw Aluminum Pedals feature a slim, lightweight design with a slight convex profile. The large, asymmetric aluminum platform provides strong foot support for all-mountain riding, while the minimal convex profile is just 7mm thick at the leading edge. These are designed for cyclists who prefer a mid-foot riding position, where the ball of the foot is in front of the pedal spindle and the arch of the foot aligns with the convex arch in the center of the pedal. Inside Ripsaw Aluminum Pedals is a 17-4 stainless steel axle, three sealed cartridge bearings, and one igus bushing with a custom radial seal to protect internal components from trail debris and dirt.
- One size: 118mm long x 102mm wide
- Twelve stainless steel, rear-loading grip pins on each side
- Six extra 4.5mm grip pins included
- Replacement parts and service guides available via Wolf Tooth Right to Repair
- Five-year warranty
- Exceeds all ISO safety standards
- Machined and assembled at Wolf Tooth in Minnesota, USA
Recommended
- Apply WT-G Precision Bike Grease to the pedal threads before installing pedals on crankarms.
- Pins can be removed for desired grip by using a 3mm hex tool.
- Includes 6 extra grip pins.
Compatibility
- Fits all standard cranks with 9/16-20 tpi right- and left-hand threads – some kid’s bikes and vintage bikes may have smaller incompatible threads.
Webshops and Bike shops
Related Products
-
Description
MKS Sylvan Track Silver Pedal
Replica design of the classic Campagnolo track pedal. Aluminum body, CrMo spindle. These are very nice, with excellent road clearance. (Track pedals are a minimalist variation on traditional clip-and-strap type pedals, with a cutaway outer portion for better clearance.)
Bearings can be serviced/adjusted in the traditional manner.
The classic. Good for all kinds of riding, especially urban fixed, because of its clearance. Cheap and strong.
Width from arm = 89 mm Weight = 340 grams/pair. -
Description
Track pedals with strong, high-polish alloy bodies. The smoothest loose ball bearing pedals on the market. Fully rebuildable. CrMo spindle. 297 grams. NJS-approved.
-
Description

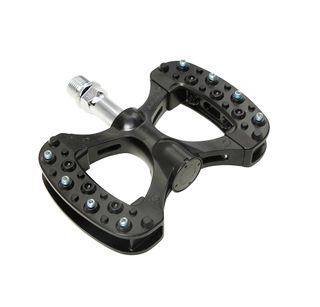

The original mountain bike pedals are back, resurrected by Blue Lug and MKS. If you don't like the pins digging into the soles of your shoes, these are a great, grippy but non-pinny option. Like our old RMX pedal, but with some MTB pedigree.
