WOLF TOOTH PACK HANGER ALIGNMENT TOOL
Quick Release Adapter - add on part to allow the Thru Axle Kit to be used on quick release bikes
Quick Release Kit - works on 5mm quick release bikes
The Pack Hanger Alignment Tool allows quick adjustments to be made to the derailleur hanger while on the trail or in the workshop. Alignment fixes are quick and intuitive, as you only need to adjust the hanger handle until it is parallel with the indicator rod. By using the bike's axle for reference, you don't need to be concerned with the wheel for making adjustments to the hanger. This new tool has included options for QR and thru axle. And for simple and durable storage, the components of this tool also nest inside of the handle.
- Quick, easy deployment at the trailhead or workshop with all components ready to go inside the handle.
- Tightening knob employs a clever rock-to-lock thread engagement that saves time while installing and removing.
- Alignment is made by a simple, intuitive process of lining up the handle to the indicator rod. No turning the wheel or dodging spokes required.
Thru Axle Kit - works on 12mm thru axle bikes
The Pack Hanger Alignment Tool allows quick adjustments to be made to the derailleur hanger while on the trail or in the workshop. Alignment fixes are quick and intuitive, as you only need to adjust the hanger handle until it is parallel with the indicator rod. By using the bike's axle for reference, you don't need to be concerned with the wheel for making adjustments to the hanger. This new tool has included options for QR and thru axle. And for simple and durable storage, the components of this tool also nest inside of the handle.
- Quick, easy deployment at the trailhead or workshop with all components ready to go inside the handle.
- Tightening knob employs a clever rock-to-lock thread engagement that saves time while installing and removing.
- Alignment is made by a simple, intuitive process of lining up the handle to the indicator rod. No turning the wheel or dodging spokes required.
Thru Axle and Quick Release Kit - works on 12mm thru axle and 5mm quick release bikes
The Pack Hanger Alignment Tool allows quick adjustments to be made to the derailleur hanger while on the trail or in the workshop. Alignment fixes are quick and intuitive, as you only need to adjust the hanger handle until it is parallel with the indicator rod. By using the bike's axle for reference, you don't need to be concerned with the wheel for making adjustments to the hanger. This new tool has included options for QR and thru axle. And for simple and durable storage, the components of this tool also nest inside of the handle.
- Quick, easy deployment at the trailhead or workshop with all components ready to go inside the handle.
- Tightening knob employs a clever rock-to-lock thread engagement that saves time while installing and removing.
- Alignment is made by a simple, intuitive process of lining up the handle to the indicator rod. No turning the wheel or dodging spokes required.
Webshops and Bike shops
Related Products
-
Description
SRAM Predictive Steering Bearing Open Bore adapter, also referred to as a drift, is used to press sealed bearings in to SRAM Predictive Steering front hubs. The adapter is machined with a 37mm OD, and a machined step at 27.5mm that slips in to the center of the sealed bearing. Compatible with our PRESS-1 or PRESS-4 sealed bearing press to press in the bearing.
Installs: 27.5X37 bearing
Inner Step Outer Diameter: 27.3mm
Outer Diameter: 36.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations) -
Description

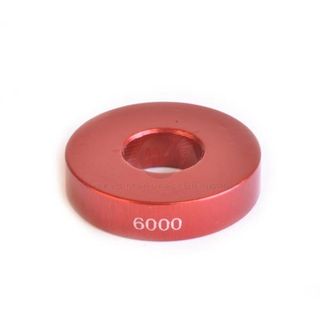

Our 6000 open bore adapter, also referred to as a drift, is used to press 6000 sealed bearings.
Installs: 6000 bearing
Outer Diameter: 21.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Thickness: 8mm
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations) -
Description
Our 6904 over axle adapter is used to press 6904 sealed bearings into hub shells or suspension components. An over axle adapter is necessary when the bearing slides over the axle before it is pressed into the hub shell or suspension component. In addition to the adapter, you often need spacers to clear the end of the axle and allow enough clearance for the press to fully push in the bearing.
Installs: 6904 bearing
Outer Diameter: 37.8mm
Thickness: 7mm
Thru Hole Diameter: 20.2mm
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (multiple adapters required for some installations) -
Description
This ultralight hex and bottom bracket wrench has a 1-inch hex at one end and an external BB cup spline at the other end (also often used for centerlock rotors). The 1-inch hex end features magnets that quickly couple with our steel hex insert tools. The side of the tool has a chainline measurement ruler.
We travel a lot with our bikes and are always looking for the leanest way to have everything we need to build or service a bike without packing 50 lbs of tools. To help with this, we developed some very specific "Pack Tools" that are high quality but weight conscious for those who perform mobile wrenching, travel with their bike, or just want one set of tools that can be thrown in when heading to the trail.
** Includes the wrench only. Steel inserts are not included but can be purchased separately or as a set.
- 1-inch hex drive interface compatible. Magnets inset allow quick coupling and decoupling of steel inserts.
- 16 notch 44 mm bottom bracket tool (or center lock rotor tool) compatible
