CHRIS KING HUB TOOLS

Related Products

•

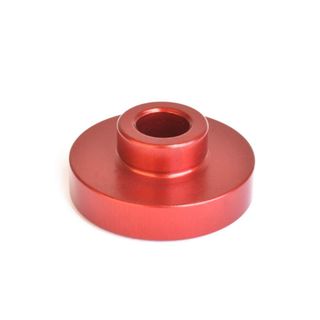

  Wheels MFG 6003 Over Axle Adapter

  Description

  Our 6003 over axle adapter is used to press 6003 sealed bearings into hub shells or suspension components. An over axle adapter is necessary when the bearing slides over the axle before it is pressed into the hub shell or suspension component. In addition to the adapter, you often need spacers to clear the end of the axle and allow enough clearance for the press to fully push in the bearing.

  Installs: 6003 bearing
  Outer Diameter: 34.8mm
  Thickness: 7mm
  Thru Hole Diameter: 17.2mm
  Compatible with PRESS-1 or PRESS-4 handles
  Machined, red anodized aluminum
  Sold individually (multiple adapters required for some installations)

  $18.00 (RRP)

  Qty:
•

  Wheels MFG 609 Bearing Extractor

  Description

  Individual extractor for removing 609 & 9227 sealed bearings with 9mm inside diameter.

  These bearing extractors grip the inside race of a sealed bearing, allowing the bearing to be tapped out of the hub shell or frame component. Insert the extractor into the bearing, tighten one side with a matching wrench, and the collet expands to grip the inside of the bearing. Tap the extractor & bearing out together with a punch and hammer.

  All extractors are size specific! If attempting to remove a bearing of a different size than the extractor, you will permanently damage or break the extractor. If the extractor is smaller than the bearing, try using a shim between the extractor and the bearing to get the tightest fit before tightening the extractor bolt.

  $72.00 (RRP)

  Qty:
•

  Wheels MFG 6806 Bearing Extractor

  Description

  Individual extractor for removing 6806 sealed bearings with 30mm inside diameter.

  These bearing extractors grip the inside race of a sealed bearing, allowing the bearing to be tapped out of the hub shell or frame component. Insert the extractor into the bearing, tighten one side with a matching wrench, and the collet expands to grip the inside of the bearing. Tap the extractor & bearing out together with a punch and hammer.

  All extractors are size specific! If attempting to remove a bearing of a different size than the extractor, you will permanently damage or break the extractor. If the extractor is smaller than the bearing, try using a shim between the extractor and the bearing to get the tightest fit before tightening the extractor bolt.

  $74.00 (RRP)

  Qty:
•

  Wheels MFG Ultimate Benchtop Mat

  Description

  You probably know that it's important to keep your workbench clean and organized, but it can be tough to do this when you're working on bikes. Parts and tools tend to scatter everywhere, and before you know it your bench is covered in grease, grime and you are missing half the parts.

  Wheels Manufacturing has the perfect solution - the Ultimate Bike Benchtop Mat. This mat is designed specifically for keeping your workbench clean and organized while you work on your bike. The mat has an extra large work area, compartments for parts, tools, and components, so everything is within reach and easy to find. Plus, the mat has useful tools built in like metric and imperial rulers, ball bearing and sealed bearing gauges which make it easier to identify the parts you need when working on your bike. Don't go another day without this essential tool in your cycling arsenal.

  - Built in gauge to easily and accurately identify outside and inside diameter of sealed bearings.
  - Identifying ball bearing has never been easier with this ramped gauge that lets ball bearings roll into their identifying slot.
  - Convenient metric and imperial ruler to quickly measure components

  Benchtop mat details:

  - Durable rubber-like PVC construction. Cleans easily and looks great on any bench
  - Overall size 20”x12-¾” (Larger than other mats on the market)
  - 12”x9.5” raised work area
  - Imperial Ruler 0-12in
  - Metric Ruler 0-48cm
  - 4 sloped pockets
  - 5 deep pockets
  - Sealed bearing gauge
  - Ball bearing gauge (1/8, 5/32, 3/16, 7/32, 1/4, 5/16)

  $140.00 (RRP)

  Qty:
•

  Juice Lubes Dirty Little Scrubber Chain

  Description

  The Dirty Little Scrubber goes heavy on clean chains and crisp shifts and light on mess, spills and faff. Slap it on your chain whenever you wash your whip and watch your drivetrain transform from ghastly to glorious in a few spins of the cranks.

  Best paired with our Dirt Juice Boss Chain Cleaner liquid, this dirty duo will strip your chain of grease and grime in seconds, ready for a quick rinse and a fresh coat of lube.

  Please note: The Dirty Little Scrubber is not compatible with wide track or BMX type chains.

  Quick and easy to use no hands chain cleaner.
  The Dirty Little Scrubber hangs on the lower chain and a hook bar swings up behind the jockey wheel so when you back pedal the cranks, the cleaner stays in place. The fact that you dont have to hold the cleaner with one hand brings 3 main advantages
  1) It finds its own position of least resistance, so you dont get annoying chain suck when back pedalling the cranks - this is assuming that you have it in a gear that backpedals freely in the first place!? With hand held cleaners, it is all too easy to twist or tilt the cleaner which inhibits the free movement of the chain through the cleaner.
  2) You can use one hand to the hold the bike up and the other hand to turn the crank, so you dont need a workstand to hold the bike steady
  3) Because it is easier and more convenient to use, you are more likely to clean your chain more regularly which will increase the lifespan of your drive train and keep it operating more smoothly which makes your riding more enjoyable!!

  Expected Date:

  10 January 2025

  $39.66 (RRP)

  Notify When in Stock
