CHRIS KING NTS 34-39 1-1/8">1.5" TAPERED
Chris King NoThreadSet Green Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

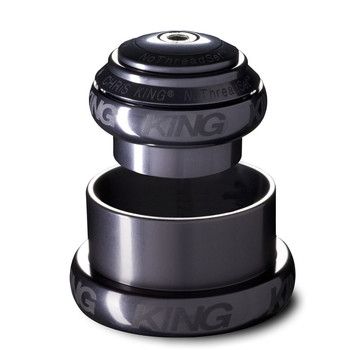

Chris King NoThreadSet Pewter Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

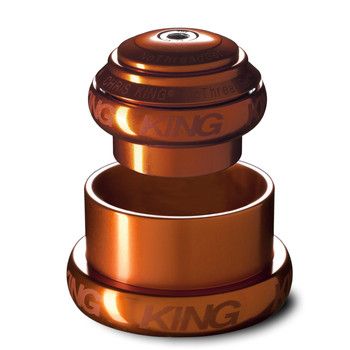

Chris King NoThreadSet Mango Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

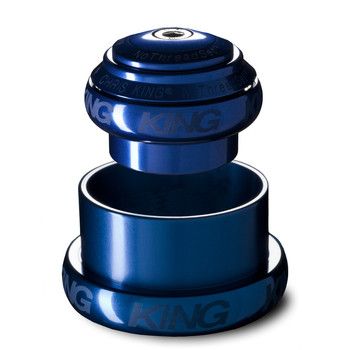

Chris King NoThreadSet Navy Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

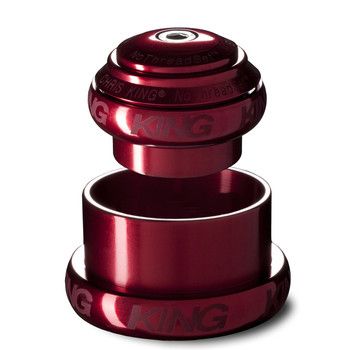

Chris King NoThreadSet Red Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

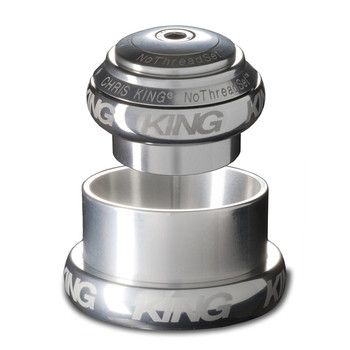

Chris King NoThreadSet Silver Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce

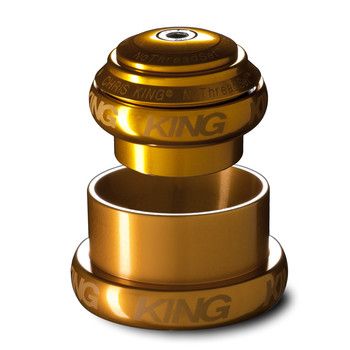

Chris King NoThreadSet Gold Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce
Webshops and Bike shops
Related Products
-
Description
Chris King NoThreadset Gold 1.5" (49mm headtube) Sotto Voce Logo Griplock
-
Description
Internal upper, external lower headset designed for frames with 44mm straight head tubes with 1-1/8" to 1.5" tapered steerers.
Sealed steel bearings.
Alloy construction.
Black.
Common head tube size for steel mtb frames. -
Description
EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.

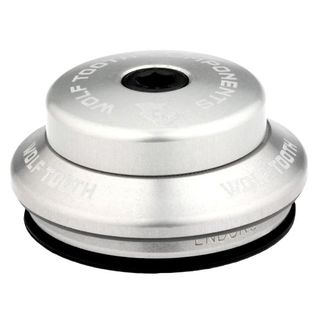

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. -
Description
Chris King i2 Jet Tapered 44/56mm headtube ( 1-1/8"/1.5" tapered fork)
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
This Chris King® Inset™ headset is a low-stack threadless headset for newer model frames with oversized head tubes. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
This Inset™ headset fits bikes from a number of manufacturers. As long as your bike doesn’t require an integrated headset and matches precise specifications (see specification chart below) this Inset™ headset will perform beautifully on your bike.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
You can buy with confidence from our Local Authorised webstores and retail outlets. They will provide Fast, Free, Reliable Shipping Australia wide.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Headset Type: Inset 2 Threadless GripLock™ InSet™
Weight: 170 grams
Warranty: 10 years
Steer tube OD: 1-1/8”
Upper head tube bore ID (tolerances): 44.0 mm (+0, -.05)
Lower head tube bore ID (tolerances): 55.95 mm (+0, -.05)
Upper cup minimum ream depth: 8 mm
Lower cup minimum ream depth: 11 mm
Fork crown seat OD: 39.8 mm
Press fit tolerance: .1 mm
Upper stack height: 8.2 mm
Lower stack height: 4.2 mm
Stem cap screw torque: 6-15 in. lbs -
Description

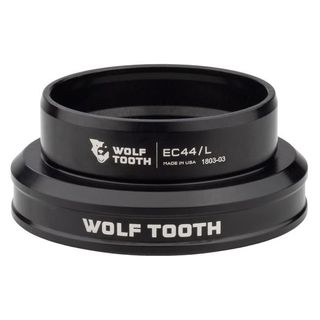

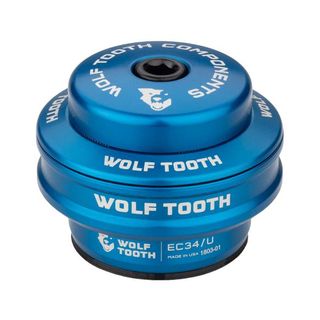

EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.

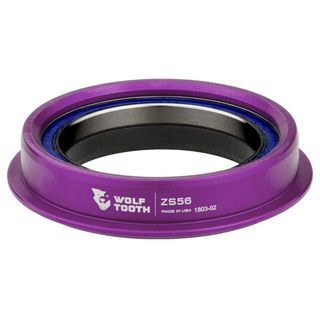

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.

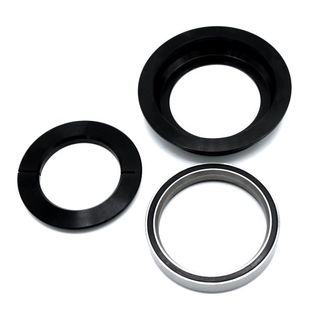

A crown race adapter (sold separately)will allow you to use forks with smaller 1-1/8" or 1-1/4" steerer tubes with a larger 1-1/2" bottom headset cup
