SURLY ENDURO BOTTOM BRACKET

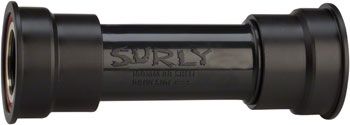

Surly OD Enduro Press Fit Bottom Bracket 121-132mm
· PF cups are 41mm in diameter
· Bearing I.D. is 24mm
· OD bottom bracket comes with telescoping center sleeve for added durability
· High quality double labyrinth sealed stainless Enduro bearings with corrosion resistant coating
· 3 additional 1mm spacers are provided to help with chain line and crank arm clearance
BB Shell Width (mm): 100 mm
BB/Frame Interface: English
Defined Color: Black
Spindle Interface Type: Surly OD , Shimano Hollowtech II
Webshops and Bike shops
Related Products
-
Description

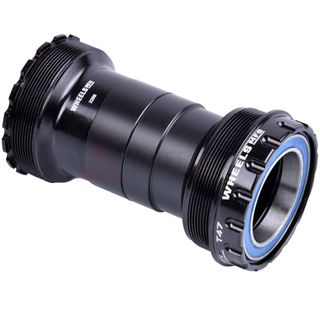

T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
Bearings: Enduro ABEC-3
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16-notch -
Description
Chris King bottom brackets utilize Fit Kits to ensure that cranks mate perfectly with our precision bearings, extend product life, and reduce the potential for noise. Fit Kits will also allow you to use one bottom bracket with a wide array of cranks, if you happen to change you cranks in the future.
Fit Kit #6 (PBB086) for SRAM GXP cranks.
For use with ThreadFit™ 24, ThreadFit™ T47 24i, ThreadFit™ T47 24x
68mm, 73mm, 73mm SB+, 86.5mm, 92mm, and 92mm SB+ BB shells. -
Description
For DUB mountain cranks there are a few extra fitments notes to be aware of.
If you have a 68mm BB shell and a THREADFIT30, BSA bottom bracket you will need two of these 2.5mm Cup Spacers. -
Description
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 30i will fit 68mm, 73mm, 83mm, 86mm, and 92mm shell widths with 30mm spindles.
All our bottom brackets come with King’s legendary, angular-contact bearings, either steel or ceramic. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- A Fit Kit is required for use
- Engineered, manufactured and assembled in Portland, Oregon USA
- Uses Chris King bottom bracket cup tool for installation -
Description
Tange-Seiki LN 3922 JIS cartridge bottom bracket features ultra-smooth sealed cartridge bearings, solid boron steel spindle and steel cups.
- 73mm English-threaded (1.370" x 24 tpi)
- JIS square taper
- steel cups & sleeve
- requires Park Tool BBT-22 for installation & removal
- crank arm bolts are not includedExpected Date:02 February 2025POA
