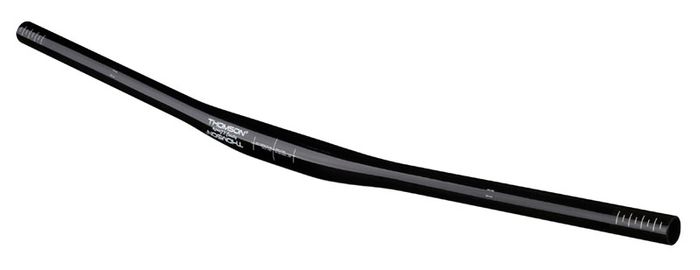

THOMSON XC CARBON HANDLEBAR
A flat bar with an off center clamp area allowing a flat riding position and reversible for an 8mm drop for 29 inch bikes. 8° of backsweep for comfort. 730mm (29?) in width for plenty of leverage.
Bars are made with three different fiber types with different tensile strength and tensile modulus, including High Strength carbon fibers. This helps to allocate stiffness and flex where needed.
Bars are molded with an EPS mandrel inside to avoid wrinkles inside the layup during molding. Most other bars are molded over inflated nylon bladders.
All carbon fiber material is produced by Toray and uses tailor made nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber to Boeing and Airbus.
1.5K woven impact ends help prevent damage to uni directional fibers from shortening the bar or impact with the ground.
Weight 185g
*NOT SUITABLE FOR BAR ENDS
Webshops and Bike shops
Related Products
-
Description
Alternative MTB handlebar similar to our Clarence Bar, but with a little more backsweep in the grip and a wider straight section in the middle (for attaching accessories). Multiple hand positions for comfort.
• 6061 T6 Aluminum
• 710mm width
• 12mm rise
• 40° bend at the grip
• 135mm staight section at the center
• 31.8mmPOA -
Description
Road bar with a round compact bend and shallow drop. Shape makes it easy to get into a natural position in the drops and brake levers are within easy reach.
- 6061-T6 aluminum
- Drop: 130mm
- Reach: 75mm
- 31.8mm center
- Single groove
- Black finish
- 46cm
. -
Description
Soma HwyOne Road Bar 31.8 Black
Road bar with a round compact bend and shallow drop. Shape makes it easy to get into a natural position in the drops and brake levers are within easy reach.
- 6061-T6 aluminum
- Drop: 130mm
- Reach: 75mm -
Description
750mm wide and offers 15mm of rise together with a 5° backsweep and 8° upsweep. Built for strength with enough flex built in for all day comfort. Strong enough for All Mountain/Freeride, light enough for racing.
Bars are made with three different fiber types with different tensile strength and tensile modulus, including High Strength carbon fibers. This helps to allocate stiffness and flex where needed.
Bars are molded with an EPS mandrel inside to avoid wrinkles inside the layup during molding. Most other bars are molded over inflated nylon bladders.
All carbon fiber material is produced by Toray and uses tailor made nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber to Boeing and Airbus.
1.5K woven impact ends help prevent damage to uni directional fibers from shortening the bar or impact with the ground.
Weight 215g
*NOT SUITABLE FOR BAR ENDS. -
Description
Designed to combine what’s good about drop bars with the benefits of a riser, the Truck Stop Bar offers welcome relief to the road-weary traveler. Just like with a standard drop bar, you’ll have multiple hand positions at your disposal so you can stay comfortable and in control for the long haul down the Big Slab. And if it’s a more relaxed, upright riding position you’re after, 30mm of rise will get you there. So, if you’ve accidentally or intentionally cut your steer tube too short, here’s your chance at redemption. Also suitable for taller riders who’ve exhausted all other options for rise, it comes in three widths of 42, 45, and 48cm. Lightweight aluminum construction, CB radio not included.
Specifications:
Material: Aluminum
Clamp Diameter: 31.8mm
Width: 42cm, 45cm, or 48cm
Rise: 30mm
Sweep Angle: 12 degreesPOA
