CHRIS KING PRESSFIT BB CONVERSION KIT
Fits:
• Press Fit 30 BB Shells
• 73mm Wide BB Shells
• 24mm>22mm Mountain Cranksets
• Common Cranks*: SRAM mtn, Zinn mtn, Bontrager mtn, TruVativ mtn
Fits:
• Press Fit 30 BB Shells
• 68mm Wide BB Shells
• 24mm>22mm Mountain Cranksets
• Common Cranks*: SRAM mtn, Bontrager mtn, TruVativ mtn, Zinn mtn
Webshops and Bike shops
Related Products
-
Description

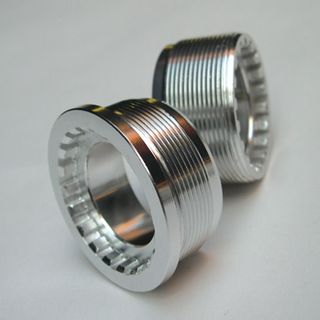

IRD BB Cups English Pair
- Retrofit IRD QB-55 or QB-75 bottom brackets to work with Englisg threaded frames
- Fits on Sugino CBB-F103
- May work with Tange-Seiki, and other BB brands as well -
Description
Used to adjust crank chainline or take up any slack when using 24mm (Shimano, FSA, etc.) or 24/22mm (SRAM/TruVativ) Spindle Cranks in any BB30/PF30/BB86/92 or similare crank system.
- 24mm I.D. for use with cranks like Shimano HollowTech II, GXP, FSA
- 30mm I.D. for use with BB30 cranks
- 10 spacers per bag
- Machined engineering-grade Delrin. -
Description
Wheels MFG Bottom Bracket/Drivetrain 120 piece spacer kit
•(20) 1.0mm FW Spacers •(10) 1.5mm FW Spacers •(10) 2.0mm FW Spacers •(10) NCS-4.5mm Cassette Spacers •(10) SHIM-.3MM BB30 Spacers •(10) SHIM-.5MM BB30 Spacers •(6) .7mm BB30 Shims •(6) 1.8mm BB30 Shims •(9) 2.5mm BB30 Shims •(4) BB30-CLIPs •(4) BB30/PF30 Wave Washers •(4) GXP Wave Washers •(4) .7mm Bottom Bracket Spacers •(4) 1.8mm Bottom Bracket Spacers •(9) 2.5mm Bottom Bracket Spacers -
Description

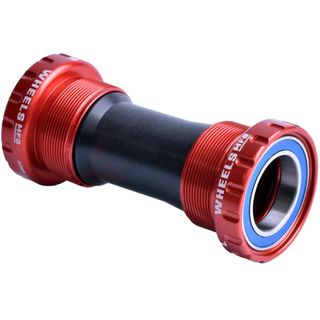

T47 threaded BB cups for T47 frames and 22/24mm spindle diameter SRAM GXP cranks. Cups have outboard bearings, and are typically used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 24mm ID wave washer
Drive Side Bearing: Enduro ABEC-3
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 22/24mm
Over Bearing Width: 91.2mm in 68mm wide shell*
Tool Pattern: 44mm x 16-notch -
Description
T47a (asymmetrical) threaded BB cups for T47a frames and 24mm diameter spindle compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
- Cervelo T47a 79mm shell width
- Factor T47a 77.5mm shell width
- Felt T47a 77mm shell width
