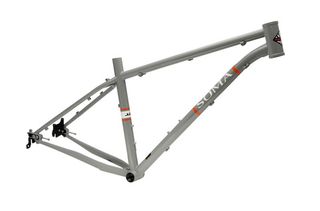

SOMA JUICE FRAME GREY
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray
Webshops and Bike shops
Related Products
-
Description
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray -
Description
The Juice is our trail/XC hardtail frame for 29? wheels. This updated version features tough Broski Sliding Dropouts that allow you to go single-speed or geared or even run hub gears and slightly more modern geometry. Also new is internal seat tube dropper post routing. A modified chainstay allows fitting even some double cranks with “plus size” 2.8? wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version.
– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end
– Geometry is optimized for 100mm travel 29? forks and will handle 120mm forks great, too
– Disc brakes only (ISO tabs)
– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)
– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal
– S-bend seatstays and chainstays
– Rear rack and fender eyelets
– CNC-machined 44mm headtube: Will take 1-1/8? steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly
– 31.6mm post size/31.8mm frt. der. size/34.9mm seat collar/73mm bottom bracket (English threads); 400mm+ post recommended
– 135mm spacing for traditional QR hubs. Old school, yes, but upgradable to 142 x 12mm Thru-Axle with new inserts.
– Recommended tire size: 29? x 2.4? (or 27.5 x 2.8”)
– Color: Battleship Gray -
Description
The Lowside is the bike that gets you across town for a quick rip on singletrack, then over to the bar for a night out. It’s the bike you turn to when you’re not entirely sure what the night has in store. It’s the bike to grab when you want to have just much fun riding to the trail as you do from the trail itself. Singlespeeding is an integral part of Surly’s DNA, and the Lowside continues the tradition, by taking a simpler approach to trail riding.
- 100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
- Singlespeed “specific” (derailleur hanger but no Trip Guides)
- Dropper post routing
- Gnot-Boost rear spacing
- Front and rear Surly thru-axles included
- Designed for 26” x 3” or 27.5” x 2.8” tire clearancePOA -
Description

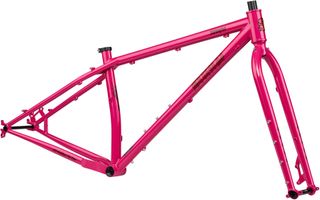

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to Sulry's computing machine (Thor) it can be set up in approximately 487 different configurations!
