TANGE BMX HEADSET MX320
The classic high end alloy Tange-Seiki MX-320 headset remade but now with sealed bearing for super smooth and awesome rattle free operation but with a total high-end Old School look.
- Loose proof mechanism
- Sealed cartridge bearing
- Top lock nut, adjusting cone, upper & lower cup are made by A6061T6 light alloy
- Bigger lower cartridge bearing for more durable with sealed mechanism
- 32.7mm cup size to fit old 1" BMX frames, does not fit 1" road and mountain bike frames.
- 26.4mm bearing race
The classic high end alloy Tange-Seiki MX-320 headset remade but now with sealed bearing for super smooth and awesome rattle free operation but with a total high-end Old School look.
- Loose proof mechanism
- Sealed cartridge bearing
- Top lock nut, adjusting cone, upper & lower cup are made by A6061T6 light alloy
- Bigger lower cartridge bearing for more durable with sealed mechanism
- 32.7mm cup size to fit old 1" BMX frames, does not fit 1" road and mountain bike frames.
- 26.4mm bearing race
The classic high end alloy Tange-Seiki MX-320 headset remade but now with sealed bearing for super smooth and awesome rattle free operation but with a total high-end Old School look.
- Loose proof mechanism
- Sealed cartridge bearing
- Top lock nut, adjusting cone, upper & lower cup are made by A6061T6 light alloy
- Bigger lower cartridge bearing for more durable with sealed mechanism
- 32.7mm cup size to fit old 1" BMX frames, does not fit 1" road and mountain bike frames.
- 26.4mm bearing race
The classic high end alloy Tange-Seiki MX-320 headset remade but now with sealed bearing for super smooth and awesome rattle free operation but with a total high-end Old School look.
- Loose proof mechanism
- Sealed cartridge bearing
- Top lock nut, adjusting cone, upper & lower cup are made by A6061T6 light alloy
- Bigger lower cartridge bearing for more durable with sealed mechanism
- 32.7mm cup size to fit old 1" BMX frames, does not fit 1" road and mountain bike frames.
- 26.4mm bearing race
Webshops and Bike shops
Related Products
-
Description
Chris King NoThreadSet Red Tapered 34/49mm Headtube (1-1/8"/1.5" tapered fork) Griplock Sotto Voce
-
Description
EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.

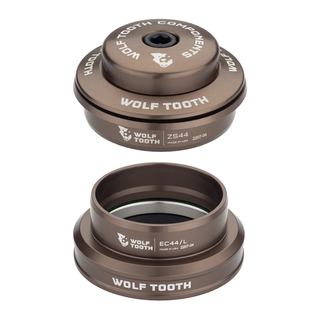

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.
Compatibility
- Stack height designation for EC headsets includes 10mm cup
- Any frame that uses an external cup headset with a 34mm upper head tube inner diameter and 34mm
- Uppers and lowers sold separately. -
Description
IS headsets are for frames with molded-in internal bearing cups.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.
Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.
Compatibility
- Any frame that uses IS (Integrated Standard) headsets with 41mm upper and 52mm lower outer bearing diameter
- Uppers and Lowers sold separately -
Description
ZS headsets are for frames with internal bearing cups that are pressed into the frame.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.
Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. -
Description
Chris King i2 Tapered 44/56mm headtube ( 1-1/8"/1.5" tapered fork)
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
This Chris King® Inset™ headset is a low-stack threadless headset for newer model frames with oversized head tubes. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
This Inset™ headset fits bikes from a number of manufacturers. As long as your bike doesn’t require an integrated headset and matches precise specifications (see specification chart below) this Inset™ headset will perform beautifully on your bike.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
You can buy with confidence from our Local Authorised webstores and retail outlets. They will provide Fast, Free, Reliable Shipping Australia wide.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Headset Type: Inset 2 Threadless GripLock™ InSet™
Weight: 170 grams
Warranty: 10 years
Steer tube OD: 1-1/8”
Upper head tube bore ID (tolerances): 44.0 mm (+0, -.05)
Lower head tube bore ID (tolerances): 55.95 mm (+0, -.05)
Upper cup minimum ream depth: 8 mm
Lower cup minimum ream depth: 11 mm
Fork crown seat OD: 39.8 mm
Press fit tolerance: .1 mm
Upper stack height: 8.2 mm
Lower stack height: 4.2 mm
Stem cap screw torque: 6-15 in. lbs
