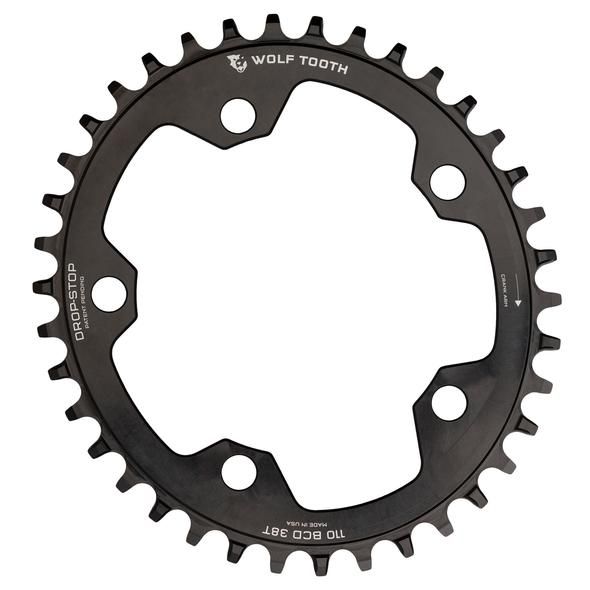

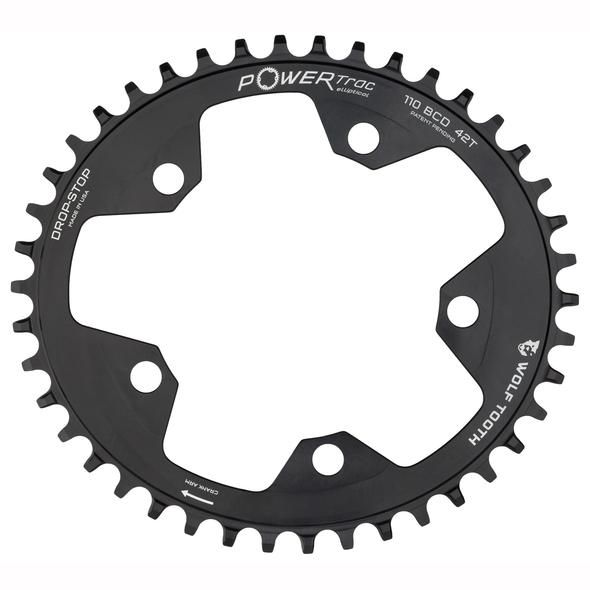

WOLF TOOTH 110 ELLIPTICAL FLAT TOP CHAINRINGS
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
Compatibility
These rings are for use with 110 BCD 5 arm cranksets.
Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
Not compatible with Campy CX10/11.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
Compatibility
These rings are for use with 110 BCD 5 arm cranksets.
Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
Not compatible with Campy CX10/11.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
Compatibility
These rings are for use with 110 BCD 5 arm cranksets.
Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
Not compatible with Campy CX10/11.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
Webshops and Bike shops
Related Products
-
Description

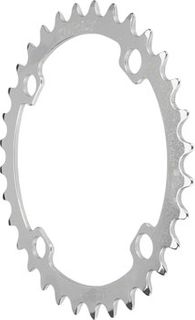

Enter the Surly Stainless Steel chainring,you can now have an all-steel drivetrain that will love you long time. Stainless, as it’s name implies, is a rust and corrosion-resistant alloy steel that is known for it’s toughness.
- No ramps or shift gates
- use of Surly rings with 9 and 10 speed chains will have a tight fit and require a short break in period
- Chain Compatibility: 3/32"
- Material: 304 Stainless
- Ring Position: Middle , SinglePOA -
Description
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
Wolf Tooth was first to market with Cyclocross 1x specific chainrings because we saw Cyclocross as the perfect use for our Drop-Stop® technology. Since their release, the uses for these rings has expanded beyond Cyclocross to commuting, gravel riding, and even full on-road applications with the giant 52t rings!
- Fits 130 BCD 5 arm cranksets
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- These rings are for use with 130 BCD 5 arm cranksets.
- Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
- Not compatible with Campy CX10/11.Expected Date:20 January 2025 -
Description
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.Expected Date:20 January 2025 -
Description

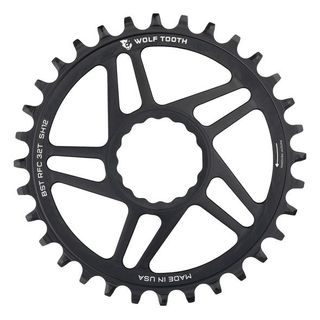

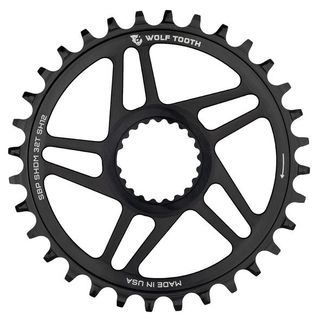

These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle.
- Note that these chainrings are NOT compatible with SRAM 8-bolt direct mount cranksets.
- Also compatible with Cane Creek eeWings cranksets??
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- 0mm offset for 55mm chainline required for SRAM Transmission with Boost spacing -
Description

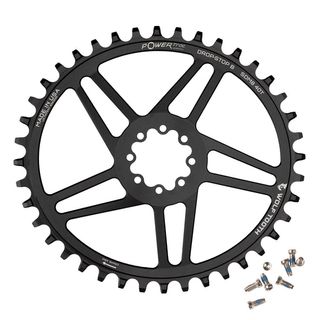

The Wolf Tooth Direct Mount Chainrings for Bosch E-Bike Motors are compatible with all Boost and Super Boost bikes that use the Bosch Gen 4 E-Bike Motor. This continues the Wolf Tooth product line of Drop-Stop chainrings for e-bike motors. Direct Mount Chainrings for Bosch E-Bike Motors are machined with 7075-T6 aluminum at Wolf Tooth in Minnesota, USA.
Compatibility:
- Chainring is compatible with all Boost and Super Boost bikes that use the Bosch Gen 4 e-bike motor
- Drop-Stop B tooth profile is compatible with almost all 9-, 10-, 11-, and 12-speed chains, including SRAM Transmission T-Type
- Drop-Stop ST tooth profile is compatible with Shimano HG+ 12-speed chains and KMC 12-speed chains.
- 55mm chainline
Available in two different tooth profiles for optimal performance based on your chain type. Use Drop-Stop ST for use with Shimano 12-speed Hyperglide+ and 12spd KMC chains. Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop Road or Transmission (T-Type), KMC, Connex or Wippermann chains.
