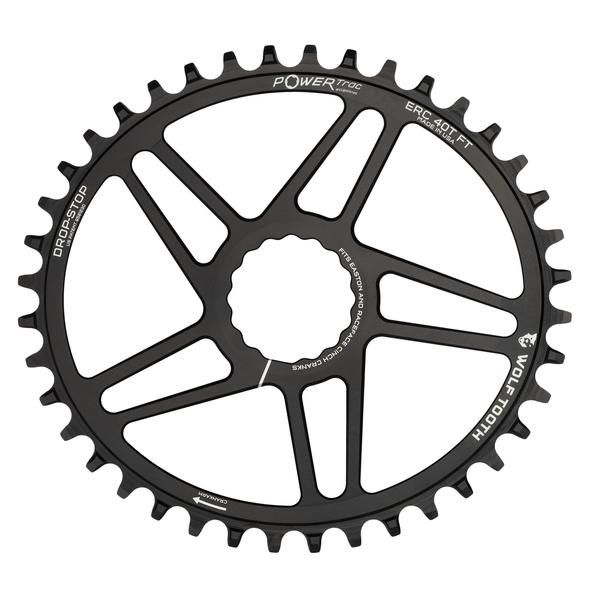

WOLF TOOTH ELLIPTICAL EASTON CINCH DIRECT MOUNT FLAT TOP CHAINRINGS
Webshops and Bike shops
Related Products
-
Description
Wolf Tooth was first to market with Cyclocross 1x specific chainrings because we saw Cyclocross as the perfect use for our Drop-Stop® technology. Since their release, the uses for these rings has expanded beyond Cyclocross to commuting, gravel riding, mountain bikes with 5-arm crank power meters, and even full on-road applications with the giant 50t rings.
Compatibility
- These rings are for use with 110 BCD 5 arm cranksets.
- Drop-Stop B is for all 9,10,11 speed chains and SRAM Eagle, Road, Transmission Flattop 12speed chains.
- Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.
- Chainline - varies - these rings can be mounted in either the big or small ring position on a double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring) -
Description
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
Wolf Tooth was first to market with Cyclocross 1x specific chainrings because we saw Cyclocross as the perfect use for our Drop-Stop® technology. Since their release, the uses for these rings has expanded beyond Cyclocross to commuting, gravel riding, and even full on-road applications with the giant 52t rings!
- Fits 130 BCD 5 arm cranksets
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- These rings are for use with 130 BCD 5 arm cranksets.
- Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
- Not compatible with Campy CX10/11. -
Description

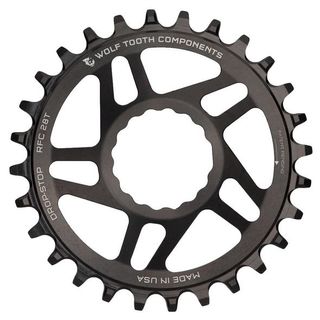

Direct Mount Chainrings for Race Face Cinch for Shimano 12spd Hyperglide+ Chain BOOST / 3mm Offset
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Any Race Face Cinch™ system crankset.
- Compatible with Shimano 12-speed Hyperglide+ chains
- Shimano 12 speed HG+ drivetrains use a 52mm Boost chainline for both 148mm Boost and 142mm standard rear hub spacing -
Description
Our new Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the latest SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 0mm offset is for SRAM XX1 SL cranks with DUB spindles to move the chainline from 52mm to 55mm.
