WOLF TOOTH ELLIPTICAL RACE FACE CINCH DIRECT MOUNT CHAINRINGS

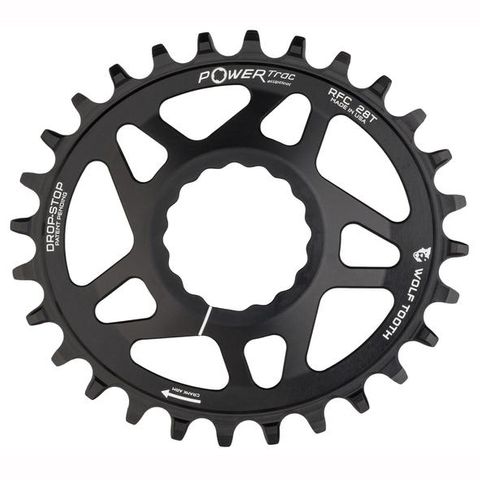

Elliptical Direct Mount Chainring for Race Face Cinch Standard / 6mm Offest (142mm)
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- For 142mm rear hub spacing
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offest
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Both standard (142mm rear hub spacing) and Boost (148mm hub spacing) offsets available.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost)

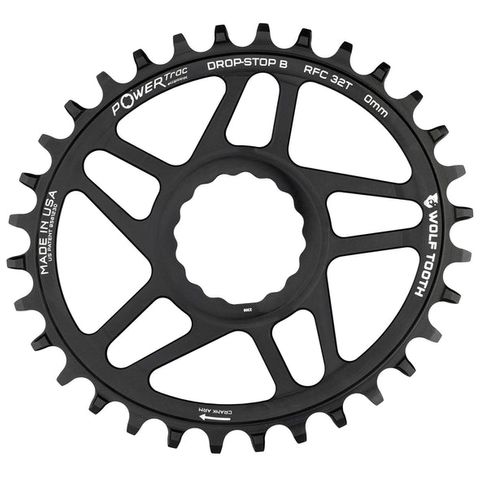

Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offset, Drop-Stop B
Riders running SRAM Transmission w/ Race Face Cinch cranksets with a Boost 136/137mm spindle use a Cinch direct mount 0mm offset chainring.
Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm (Boost) offset chainring.
Drop-Stop B Compatibility:
- Any Race Face Cinch™ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Boost (148mm hub spacing)
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle, SRAM 12 spd Transmission (T-type) and Road Flattop chains)
- Chainline 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Standard / 6mm Offest
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Both standard (142mm rear hub spacing) and Boost (148mm hub spacing) offsets available.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offest
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Both standard (142mm rear hub spacing) and Boost (148mm hub spacing) offsets available.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offset, Drop-Stop B
Riders running SRAM Transmission w/ Race Face Cinch cranksets with a Boost 136/137mm spindle use a Cinch direct mount 0mm offset chainring.
Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm (Boost) offset chainring.
Drop-Stop B Compatibility:
- Any Race Face Cinch™ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Boost (148mm hub spacing)
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle, SRAM 12 spd Transmission (T-type) and Road Flattop chains)
- Chainline 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offest
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Both standard (142mm rear hub spacing) and Boost (148mm hub spacing) offsets available.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost)
Elliptical Direct Mount Chainring for Race Face Cinch Boost / 3mm Offset, Drop-Stop B
Riders running SRAM Transmission w/ Race Face Cinch cranksets with a Boost 136/137mm spindle use a Cinch direct mount 0mm offset chainring.
Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm (Boost) offset chainring.
Drop-Stop B Compatibility:
- Any Race Face Cinch™ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Boost (148mm hub spacing)
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle, SRAM 12 spd Transmission (T-type) and Road Flattop chains)
- Chainline 52mm (Boost)
Riders running SRAM Transmission w/ Race Face Cinch cranksets with a Boost 136/137mm spindle use a Cinch direct mount 0mm offset chainring.
Riders using a Cinch crankset with a Super Boost 151mm spindle use a Cinch direct mount 3mm (Boost) offset chainring.
Drop-Stop B Compatibility:
- Any Race Face Cinch™ system crankset (including Next SL, Sixc, Turbine, Aeffect)
- Boost (148mm hub spacing)
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle, SRAM 12 spd Transmission (T-type) and Road Flattop chains)
- Chainline 52mm (Boost)
