WOLF TOOTH ELLIPTICAL RACE FACE CINCH DIRECT MOUNT 12SPD SHIMANO CHAINRINGS
Elliptical Direct Mount Chainrings for Race Face Cinch for Shimano Hyperglide+ 12spd Chain BOOST / 3mm Offset
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Any Race Face Cinch™ system crankset.
- Compatible with Shimano 12-speed Hyperglide+ chains
- Shimano 12 speed HG+ drivetrains use a 52mm Boost chainline for both 148mm Boost and 142mm standard rear hub spacing
Elliptical Direct Mount Chainrings for Race Face Cinch for Shimano Hyperglide+ 12spd Chain BOOST / 3mm Offset
The new Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Any Race Face Cinch™ system crankset.
- Compatible with Shimano 12-speed Hyperglide+ chains
- Shimano 12 speed HG+ drivetrains use a 52mm Boost chainline for both 148mm Boost and 142mm standard rear hub spacing
Webshops and Bike shops
Related Products
-
Description
These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- 9, 10, 11, & 12spd Eagle - These chainrings are designed to work with all 9 speed, 10 speed, and 11 speed chains. They also work with 12 speed Eagle and 12 speed KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain or SRAM 12 speed Flattop chain.
- Standard: 47mm chainline, 6mm offset for cyclocross and road cranks
- Standard: 49mm chainline, 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 -
Description
Looking for a 1X chainring for your new Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.
Compatibility
- These rings fit on the Shimano XT M8000, SLX M7000 or Deore M6000 1x or 2x cranksets
- Not compatible with Deore triple (3x) cranksets!
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most Boost bikes. See this explanation for details.
- Standard crank chainline - (48 mm for 26-28T), (49 mm for 30-34T) and (50 mm for 36-38T)
- Boost crankset chainline - (52 mm for 30-34T) and (53 mm for 36-38T)
- 10mm bolts are optimized for mounting this ring -
Description
We designed these bolts to be the best on the market. These are 6 mm long so they work perfectly with any bolt on single chainring that does not have threaded standoffs.
- Any of our bolt-on Drop-Stop® chainrings with through holes
- Works with other brands single chainrings as well
Material: 7075-T6 aluminum
Size: M8 x.75 x 5
Torque spec: 7-8 NM tightening torque with light grease on threads only
Made in the USA -
Description
The Wolf Tooth 107 BCD Chainring for SRAM Cranks is compatible with most new SRAM 1x road cranks that use the 107 BCD spider, including the SRAM AXS Power Meter Spider. This chainring uses the patented Wolf Tooth Drop-Stop B Wide/Narrow tooth profile that is optimized for drop bar bikes.
- Fits 107 BCD for SRAM Cranks
- Drop-Stop technology prevents dropped chains. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris while reducing friction.
- Cranks that use the 107 BCD spider also use the SRAM 8-bolt interface, which is compatible with Wolf Tooth Direct Mount Chainrings for SRAM 8-Bolt
Compatibility
- Fits 107 BCD spiders.
- Chainline is determined by the crank model. See manufacturer specs for chainline.
- Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop, Campagnolo, KMC, Connex or Wippermann chains -

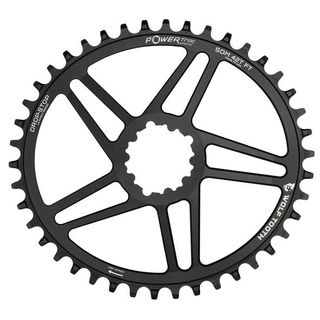

Description
Oval Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
