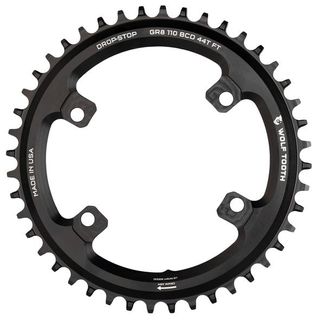

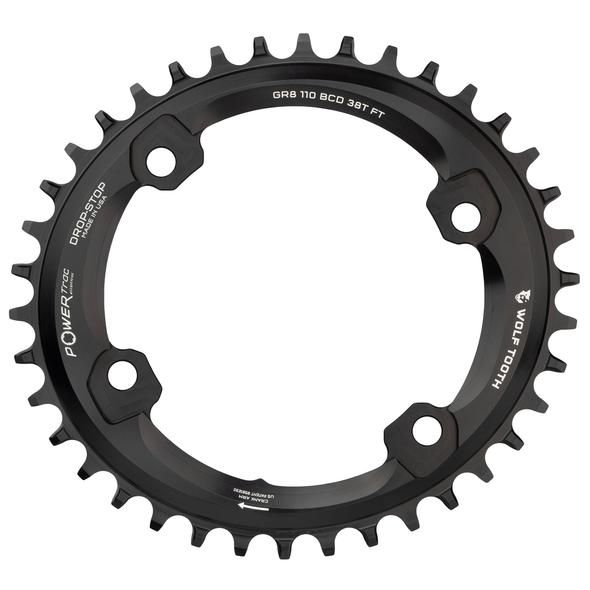

WOLF TOOTH ELLIPTICAL 110 ASYMMETRIC 4-BOLT SHIMANO GRX CHAINRINGS
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. The newly updated tooth profile works with SRAM Flattop chain in addition to other 9, 10, 11, and 12 spd chains (except Shimano HG+ 12 speed chain).
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® FT tooth profile is compatible with SRAM Flattop chain
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. The newly updated tooth profile works with SRAM Flattop chain in addition to other 9, 10, 11, and 12 spd chains (except Shimano HG+ 12 speed chain).
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® FT tooth profile is compatible with SRAM Flattop chain
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. The newly updated tooth profile works with SRAM Flattop chain in addition to other 9, 10, 11, and 12 spd chains (except Shimano HG+ 12 speed chain).
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® FT tooth profile is compatible with SRAM Flattop chain
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability
Webshops and Bike shops
Related Products
-
Description

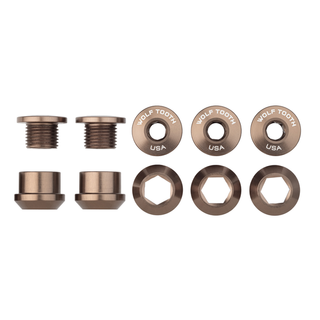

We designed these bolts to be the best on the market. These are 6 mm long so they work perfectly with any bolt on single chainring that does not have threaded standoffs.
- Any of our bolt-on Drop-Stop® chainrings with through holes
- Works with other brands single chainrings as well
Material: 7075-T6 aluminum
Size: M8 x.75 x 5
Torque spec: 7-8 NM tightening torque with light grease on threads only
Made in the USA -
Description
These chainrings fit only the Shimano XTR M9000 and M9020 cranksets (race and trail respectively). They have an asymmetrical 96 mm BCD with built-in threaded standoffs to provide the ideal 1X chainline.
- Use only the stock Shimano XTR chainring bolts (M7)
- You will not use the stock bolt caps when mounting this ring. The stock bolts will thread into the chainring's standoffs from the outside of the crankset.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most boost bikes.
- Chainline - 49mm for 30-34t
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum. -
Description

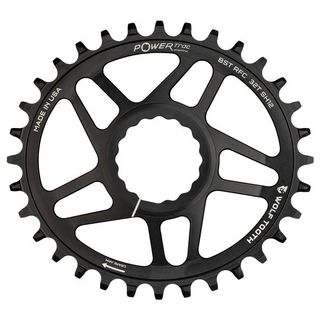

Elliptical Direct Mount Chainrings for SRAM Cranks STANDARD / 6mm Offset FLATTOP
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- Also compatible with Cane Creek eeWing cranksets.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum. -
Description
Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
- Fits 110 BCD Asymmetric 4-bolt Shimano cranks
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- Compatible with Dura Ace 9000, Ultegra 6800, 105 5800, Tiagra 4703, and Tiagra 4700
- Sizes 38T and larger are compatible with Dura Ace 9100, Ultegra 8000 and 105 R7000 but a slight modification is required due to a change in the crank arm profile. The 36T chainring will not work for this modification. Click here to review the process for the modification, which takes about 5 minutes to perform.
- Wolf Tooth inventory of SH110 chainrings all have the notch cut to fit the R7000, R8000, & R9100. Note: The 36 tooth chainring can not be modified, it is not be compatible.
- Confirmed modification fit with Dura Ace 9100 power meter in size 42t or larger
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline 47.5mm
