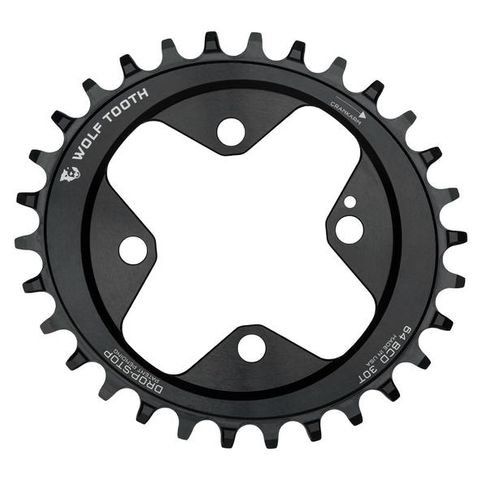

WOLF TOOTH ELLIPTICAL 64 BCD CHAINRINGS
- These rings fit any crankset that has a 64 BCD "small ring" position. This includes standard 104 BCD cranksets, the M960 Shimano XTR crankset, the 96 BCD Triple cranksets (e.g. M782) and some others.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- Chainline (approximate as BB centering and cranksets vary) - 47mm on a triple and 48mm on a double crankset
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
Webshops and Bike shops
Related Products
-
Description
Wheels MFG C/ring Inner 5.3mm Spacer(20)
5.3mm chainring spacer for inner position. Machined to close tolerances out of 6061 aluminum. Excellent for improving chain line, or for replacing missing spacers.
Inner Diameter: 8mm
Thickness: 5.3mm
20/bag -
Description

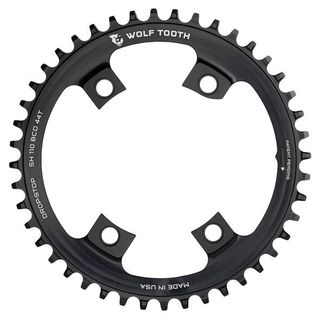

Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- All sizes compatible with Dura Ace 9000, Ultegra 6800, 105 5800, RS510, Tiagra 4700 or 4703, Sora R3000 or R3030, and Claris R2000 or R2030 cranks.
- 38-50t are compatible with 105 R7000, Ultegra R8000, and Dura-Ace R9100. The 36t chainring is NOT compatible with these cranks.
- NOT compatible with Dura-Ace R9200, Ultegra R8100, and 105 R7100 Cranks
- Size 42t and larger will work with the Dura Ace 9100 power meter
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.
- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline 47.5mm
- Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
- Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings -
Description
These chainrings are for Shimano GRX cranks. They feature our patented Drop-Stop® design for the best wear life, chain retention, and mud clearance. The newly updated tooth profile works with SRAM Flattop chain in addition to other 9, 10, 11, and 12 spd chains (except Shimano HG+ 12 speed chain).
Compatibility
- Shimano GRX cranksets including RX600 and RX810
- Drop-Stop® FT tooth profile is compatible with SRAM Flattop chain
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile provides the ultimate chain retention and mud shedding ability -
Description
Looking for a SRAM XO1, X1, GX, and NX chainring with the proven chain retention of our patented Drop-Stop® chainrings? Wolf Tooth has what you need in these beautifully machined 94 BCD bolt-on chainrings.
- Fits any 94 BCD SRAM crankset
- Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- These rings fit any SRAM crankset with a 94 BCD.
Note that we also offer SRAM Direct Mount chainrings for Standard and BB30 Short Spindle cranksets and some stainless steel versions.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Chainline - 49mm -
Description
Elliptical Direct Mount Chainrings for SRAM Cranks STANDARD / 6mm Offset
- 9, 10, 11, & 12spd Eagle - These chainrings are designed to work with all 9 speed, 10 speed, and 11 speed chains. They also work with 12 speed Eagle and 12 speed KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain or SRAM 12 speed Flattop chain.
- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- Also compatible with Cane Creek eeWing cranksets.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
