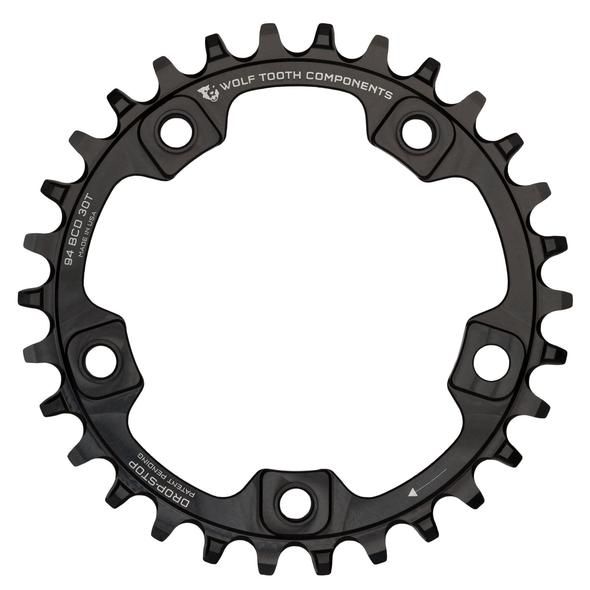

WOLF TOOTH 94 BCD 5-BOLT CHAINRINGS
This 94 BCD 5-bolt ring will serve all your Vintage crankset and Surly crankset needs.
- Fits any 94 BCD 5-bolt crankset
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Four of the holes are threaded and one is a normal through bolt hole (done for Surly compatibility). Use a stock 10mm chainring bolt for the fifth, hidden arm.
- These rings fit any 94 BCD 5 bolt crankset
- For Plus size bike applications with the Surly OD crankset, e.g. Instigator and Krampus, you will need to use the stock spacers (Spacer Kit QBP Part number CR8609) that came with your 1x setup. You will also need some 16mm bolts which can be purchased from Problem Solvers.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provides a great chainline on most boost bikes.
- Chainline (approximate as BB centering and cranksets vary)
Webshops and Bike shops

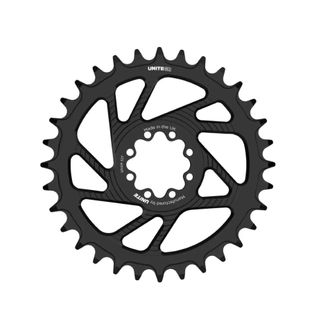

Related Products
-
Description
10, 11, & 12spd Eagle and Flattop - These chainrings are designed to work with all 10 speed, and 11 speed chains. They also work with 12 speed SRAM Flattop, SRAM Eagle and KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
Compatibility
These rings are for use with 110 BCD 5 arm cranksets.
Crank arm clocking arrow will be rotated 180 degrees from normal on cranksets that have 4 bolts visible and 1 hidden bolt behind the crank arm like for SRAM.
Do NOT fit on the cranksets for Shimano DA 9000 / Ultegra 6800
Not compatible with Campy CX10/11.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability -
Description
Direct Mount Chainrings for Shimano Cranks for Shimano 12spd Hyperglide+ Chain BOOST / 3mm Offset
The Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Shimano XTR M9100, XT M8100, and SLX M7100 series 12 speed cranksets.
- Compatible with Shimano 12-speed Hyperglide+ chains
- Boost crankset, models M9100, M8100, M7100, MT610 - will use a Boost ring with Boost rear hub spacing (148mm) -
Description

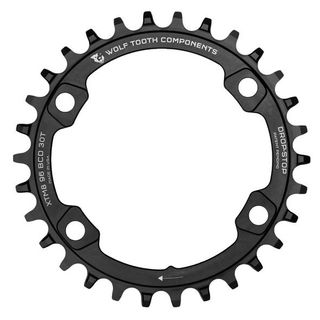

Looking for a 1X chainring for your Shimano compact triple crankset - models M782, M672, M622, or M612 – with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in this beautifully machined chainring with threaded standoffs that proved and ideal chainline.
- Fits any 96 BCDShimano Symmetric 4-bolt crankset
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- These rings fit any 96 BCD Shimano Symmetric bolt pattern crankset, and here are instructions on how to measure your BCD.
- Compatible with the following Shimano crankset models: M782, M672, M622, M612
- Not compatible with XTR M9000 or XT M8000
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
- Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
- If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention)
- Chainline - 49mm. Provides a great chainline on most boost bikes. -
Description
Looking for a 1X chainring for your new Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.
Compatibility
- These rings fit on the Shimano XT M8000, SLX M7000 or Deore M6000 1x or 2x cranksets
- Not compatible with Deore triple (3x) cranksets!
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most Boost bikes. See this explanation for details.
- Standard crank chainline - (48 mm for 26-28T), (49 mm for 30-34T) and (50 mm for 36-38T)
- Boost crankset chainline - (52 mm for 30-34T) and (53 mm for 36-38T)
- 10mm bolts are optimized for mounting this ring -
Description
Direct Mount Chainrings for SRAM 3-Bolt Cranks BOOST / 3mm Offset Drop-Stop B
Drop-Stop B is optimized for SRAM T-Type Transmission and compatible with many other chains. (They do not work with Shimano 12 speed Hyperglide+ chain)
Compatibility
- Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle.
- NOT compatible with SRAM 8-bolt direct mount cranksets.
- Also compatible with Cane Creek eeWings cranksets??
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- There are 3 offsets:
Boost: 0mm offset for 55mm chainline required for SRAM Transmission
Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
BB30: 0mm offset for BB30 short spindle cranks for 49mm chainline
Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
Fat bikes: If your fat bike has a 170/177 rear hub spacing, use the standard 6mm offset
Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.
