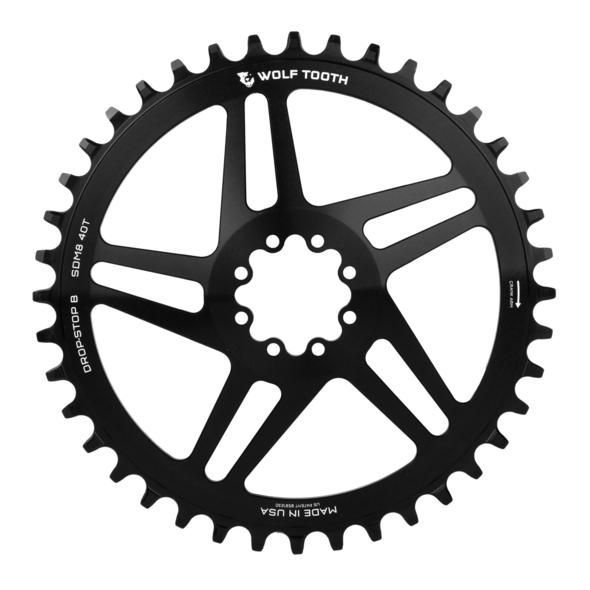

WOLF TOOTH SRAM 8-BOLT GRAVEL/ROAD CHAINRINGS
Direct mount chainrings for SRAM cranks with 8-bolt mounting replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet.
Compatibility
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8 bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud-shedding ability
- 6mm offset
- Chainline 45mm
Webshops and Bike shops
Related Products
-
Description
These chainrings fit only the Shimano XTR M9000 and M9020 cranksets (race and trail respectively). They have an asymmetrical 96 mm BCD with built-in threaded standoffs to provide the ideal 1X chainline.
Read more
- Use only the stock Shimano XTR chainring bolts (M7)
- You will not use the stock bolt caps when mounting this ring. The stock bolts will thread into the chainring's standoffs from the outside of the crankset.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most boost bikes.
- Chainline - 49mm for 30-34t
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum. -
Description
Elliptical Direct Mount Chainring for Race Face Cinch Standard / 6mm Offest (142mm)
Read more
Compatibility
- Any Race Face Cinch(TM) system crankset (including Next SL, Sixc, Turbine, Aeffect)
- For 142mm rear hub spacing
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
- Chainline 49mm (standard), 52mm (Boost) -
Description
This 94 BCD 5-bolt ring will serve all your Vintage crankset and Surly crankset needs.
Read more
- Fits any 94 BCD 5-bolt crankset
- Drop-Stop technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Four of the holes are threaded and one is a normal through bolt hole (done for Surly compatibility). Use a stock 10mm chainring bolt for the fifth, hidden arm.
- These rings fit any 94 BCD 5 bolt crankset
- For Plus size bike applications with the Surly OD crankset, e.g. Instigator and Krampus, you will need to use the stock spacers (Spacer Kit QBP Part number CR8609) that came with your 1x setup. You will also need some 16mm bolts which can be purchased from Problem Solvers.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provides a great chainline on most boost bikes.
- Chainline (approximate as BB centering and cranksets vary) -
Description
The Wolf Tooth 107 BCD Chainring for SRAM Cranks is compatible with most new SRAM 1x road cranks that use the 107 BCD spider, including the SRAM AXS Power Meter Spider. This chainring uses the patented Wolf Tooth Drop-Stop B Wide/Narrow tooth profile that is optimized for drop bar bikes.
Read more
- Fits 107 BCD for SRAM Cranks
- Drop-Stop technology prevents dropped chains. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris while reducing friction.
- Cranks that use the 107 BCD spider also use the SRAM 8-bolt interface, which is compatible with Wolf Tooth Direct Mount Chainrings for SRAM 8-Bolt
Compatibility
- Fits 107 BCD spiders.
- Chainline is determined by the crank model. See manufacturer specs for chainline.
- Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd SRAM Eagle, SRAM Flattop, Campagnolo, KMC, Connex or Wippermann chains -
Description
This is a CAMO Chainring ONLY. A CAMO Spider is required to complete this system.
Read more
Drop-Stop B for SRAM 12 spd Transmission (T-type) and Road Flattop chains, all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains.
