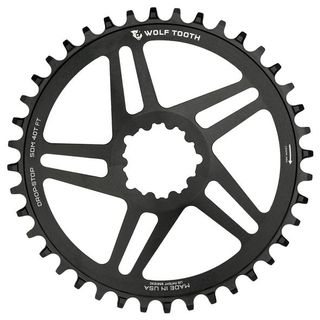

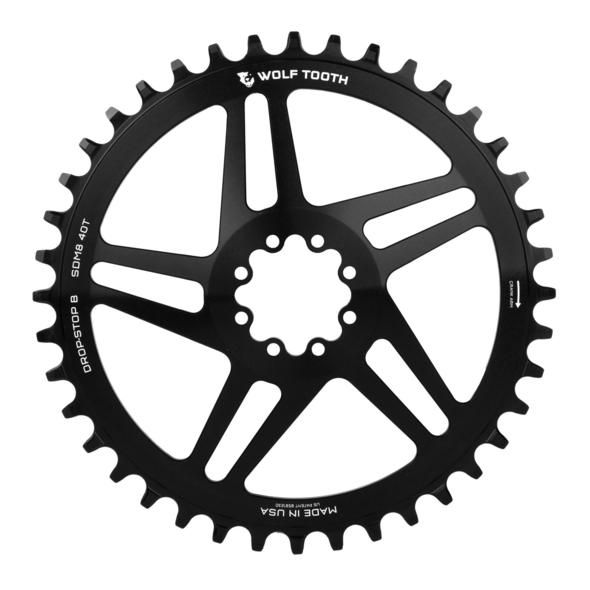

WOLF TOOTH SRAM 8-BOLT MTB CHAINRINGS
Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

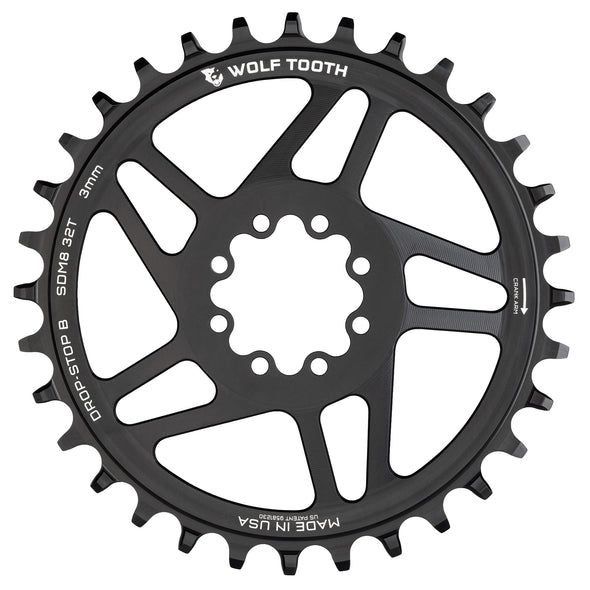

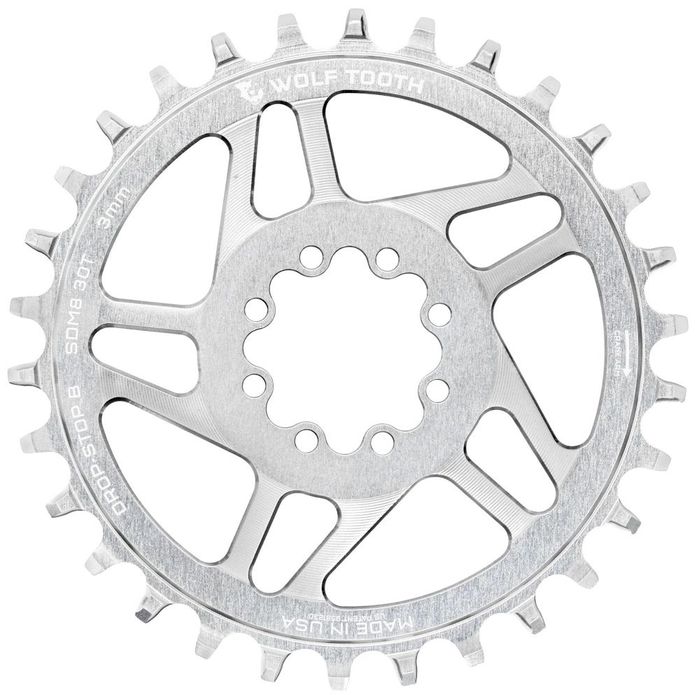

The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.
Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.
Our new Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the latest SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.

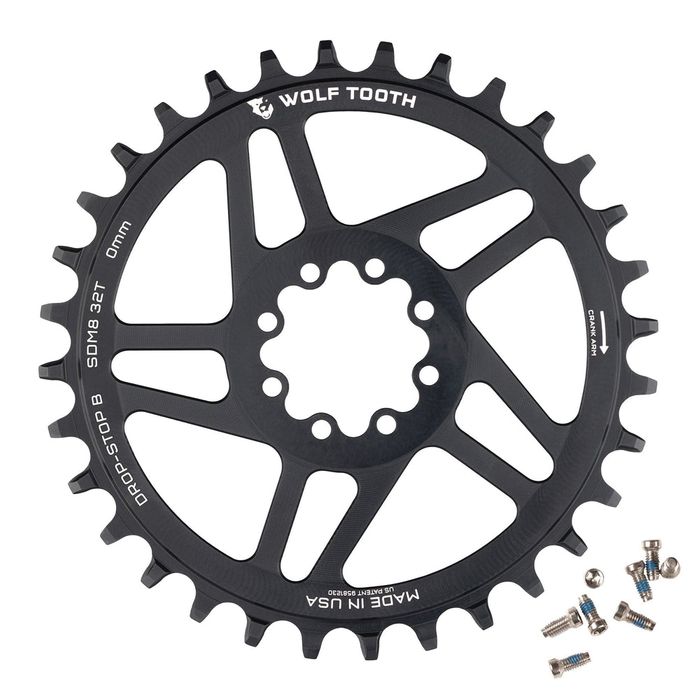

The 0mm offset is for SRAM XX1 SL cranks with DUB spindles to move the chainline from 52mm to 55mm.
Webshops and Bike shops
Related Products
-
Description
Wheels MFG C/ring Mid 0.6mm spacer (20)
chainring spacer for middle position. Machined to close tolerances out of 6061 aluminum. Excellent for improving chain line, or for replacing missing spacers.
Inner Diameter: 10mm
Thickness: 0.6mm
20/bag -
Description
We designed these bolts to be the best on the market. These single chainring optimized bolts have a 4 mm hex socket on the bolt and a 6 mm hex socket on the nut so no spanner is needed. These are 6 mm long so they work perfectly with any bolt on single chainring that does not have threaded standoffs.
Compatibility
- Any of our bolt-on Drop-Stop® chainrings with through holes 110 BCD and 130 BCD
- Works with other brands single chainrings as well
Material: 7075-T6 aluminum
Size: M8 x.75 x 5
Torque spec: 7-8 NM tightening torque with light grease on threads only
Made in the USA -
Description
Elliptical Direct Mount Chainrings for SRAM Cranks STANDARD / 6mm Offset
- 9, 10, 11, & 12spd Eagle - These chainrings are designed to work with all 9 speed, 10 speed, and 11 speed chains. They also work with 12 speed Eagle and 12 speed KMC chain. They do not work with Shimano 12 speed Hyperglide+ chain or SRAM 12 speed Flattop chain.
- These direct mount chainrings will replace your existing chainring and spider, which is attached via 3 bolts on the back side of the spider near the spindle. You will use these same 3 bolts to attach the Wolf Tooth SDM® chainring. Note that the SRAM 12spd Red and Force AXS use a different 8 bolt mounting interface that is not compatible with these chainrings.
- Also compatible with Cane Creek eeWing cranksets.
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the POWER and TRACTION benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone,” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical POWER: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring. Similarly in the “Recovery Zone” (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing EFFICIENCY in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better TRACTION. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum. -
Description

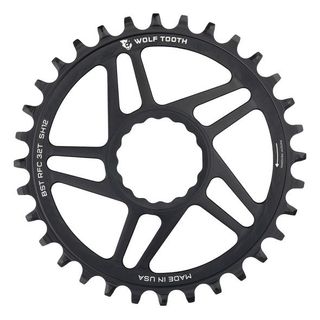

Direct Mount Chainrings for Shimano Cranks for Shimano 12spd Hyperglide+ Chain BOOST / 3mm Offset
The Shimano XTR, XT, and SLX 12spd Hyperglide+ chain works differently than other products on the market so Wolf Tooth engineers developed a completely new tooth profile to provide optimal chain retention and durability when using this new chain technology.
- The new HG+ chain interacts with the chainring much differently than a traditional wide/narrow design. Wolf Tooth engineers spent the time to understand how the system works and design a new tooth profile that is optimized for this system.
- Engineered proprietary tooth profile maintains the quiet and smooth performance of the HG+ drivetrain with legendary Wolf Tooth chain retention.
- Prevents premature ring and chain wear that can come from non-optimized profiles.
Compatibility
- Shimano XTR M9100, XT M8100, and SLX M7100 series 12 speed cranksets.
- Compatible with Shimano 12-speed Hyperglide+ chains
- Boost crankset, models M9100, M8100, M7100, MT610 - will use a Boost ring with Boost rear hub spacing (148mm) -
Description
These rings fit any 104 BCD crankset
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle, SRAM Flattop chains)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
Quarq power meter compatible with sizes 34t and 36t. Filing required for 32t fitment onto some older Quarq Power meters. No modifications are required for the DUB Quarq Power meter.
- Chainline (approximate as BB centering and cranksets vary) - 48mm on 3x cranksets and 49mm on 2x
- Threaded to use M8 chainring bolts (no nuts required)
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
