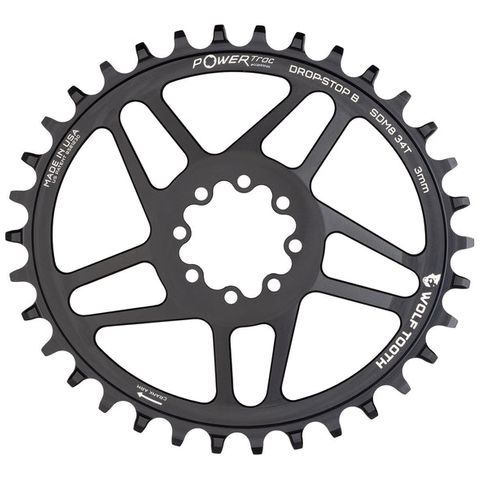

WOLF TOOTH OVAL SRAM 8-BOLT MTB CHAINRINGS
Oval Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
Oval Direct Mount Chainrings for SRAM 8-Bolt Mountain Cranks are optimized for the new SRAM Transmission mountain groupsets and T-Type chains. These are for folks who have the SRAM T-Type Transmission groupset that want a different chainring size beyond stock offering or upgrade to a Made In USA option with an optimized tooth profile for better performance.
The 3mm offset is for SRAM MTB cranks with DUB WIDE spindles that are already at the 55mm chainline required for SRAM T-Type Transmission groupsets.
More power, better traction, less shifting. Wolf Tooth oval chainrings use our proprietary PowerTrac design that has all the benefits of oval, but without the funky, uneven pedal stroke. Ride one once and you’ll wonder why you waited so long to try oval.
Webshops and Bike shops
Related Products
-
Description
Wolf Tooth was first to market with Cyclocross 1x specific chainrings because we saw Cyclocross as the perfect use for our Drop-Stop® technology. Since their release, the uses for these rings has expanded beyond Cyclocross to commuting, gravel riding, mountain bikes with 5-arm crank power meters, and even full on-road applications with the giant 50t rings.
Compatibility
- These rings are for use with 110 BCD 5 arm cranksets.
- Drop-Stop B is for all 9,10,11 speed chains and SRAM Eagle, Road, Transmission Flattop 12speed chains.
- Stock 2x bolts will not work. You will need bolts like our 6mm bolts which are optimized for single ring mounting.
- Chainline - varies - these rings can be mounted in either the big or small ring position on a double cranksets. The most common mounting is in the big ring position because of chainstay clearance. The ring centerline is ~2mm from the ring's mounting face so they usually sit about 2mm closer to the frame than the stock big ring (depends on the stock ring)Expected Date:12 December 2024 -
Description
This is a CAMO Spider ONLY. A CAMO Chainring is required to complete this system.
This is a spider for use with the Cannondale cranksets that have a removable spider.
M4 (minus 4mm - Ai offset)
- For use on Cannondale bikes with the Ai (asymmetric integration) offset rear triangle AND all Cannondale 27.5 Plus bikes
- For use on 2x Fat CAAD (a 166mm spindle) -
Description
Looking for a 1X chainring for your new Shimano XT, SLX or Deore crankset with the proven chain retention of our Drop-Stop® chainrings? Wolf Tooth has what you need in the form of a beautifully machined asymmetrical 96 mm BCD that provides the ideal 1X chainline of 49mm.
Compatibility
- These rings fit on the Shimano XT M8000, SLX M7000 or Deore M6000 1x or 2x cranksets
- Not compatible with Deore triple (3x) cranksets!
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Provide a great chainline on most Boost bikes. See this explanation for details.
- Standard crank chainline - (48 mm for 26-28T), (49 mm for 30-34T) and (50 mm for 36-38T)
- Boost crankset chainline - (52 mm for 30-34T) and (53 mm for 36-38T)
- 10mm bolts are optimized for mounting this ring -
Description
Direct Mount Chainrings for SRAM 3-Bolt Cranks BOOST / 3mm Offset Drop-Stop B
Drop-Stop B is optimized for SRAM T-Type Transmission and compatible with many other chains. (They do not work with Shimano 12 speed Hyperglide+ chain)
Compatibility
- Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle.
- NOT compatible with SRAM 8-bolt direct mount cranksets.
- Also compatible with Cane Creek eeWings cranksets??
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- There are 3 offsets:
Boost: 0mm offset for 55mm chainline required for SRAM Transmission
Boost: 3mm offset for 52mm chainline or Transmission compatibility with Super Boost bikes
BB30: 0mm offset for BB30 short spindle cranks for 49mm chainline
Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
Fat bikes: If your fat bike has a 170/177 rear hub spacing, use the standard 6mm offset
Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.
