Tange Passage 1 27.0mm Satin
Description
Tange Passage 1" 27.0mm steel
The Tange-Seiki Passage 1" threaded headset is constructed of steel and features 5/32" ball bearings.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:TGHS-TE36DX4S
Tange Terious DX4 1-1/8 Silver 34mm ID
Lightweight and strong duraluminum light alloy construction$50.00 (RRP) -
Stock Code:WTHSEC34U-5MM-BLKStock Code:WTHSEC34U-5MM-BLUStock Code:WTHSEC34U-5MM-GLDStock Code:WTHSEC34U-5MM-GRNStock Code:WTHSEC34U-5MM-ORGStock Code:WTHSEC34U-5MM-PRPStock Code:WTHSEC34U-5MM-REDStock Code:WTHSEC34U-5MM-RSIL

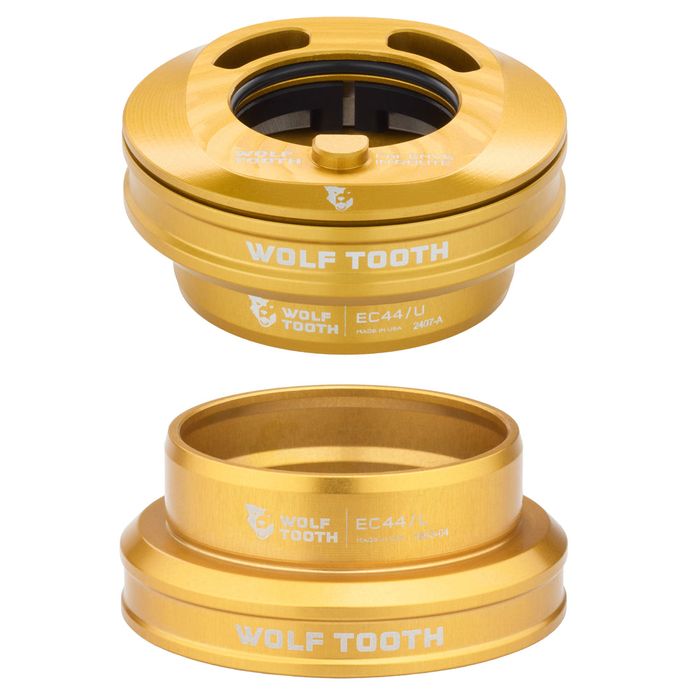

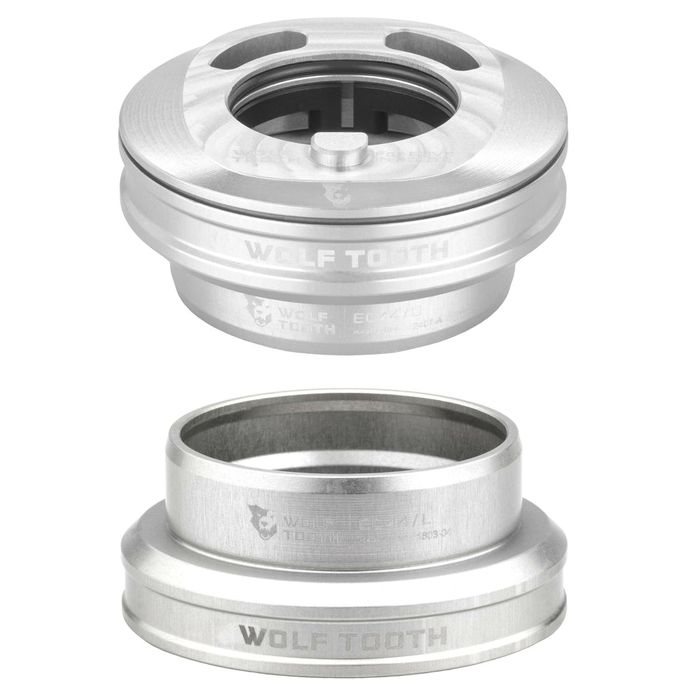

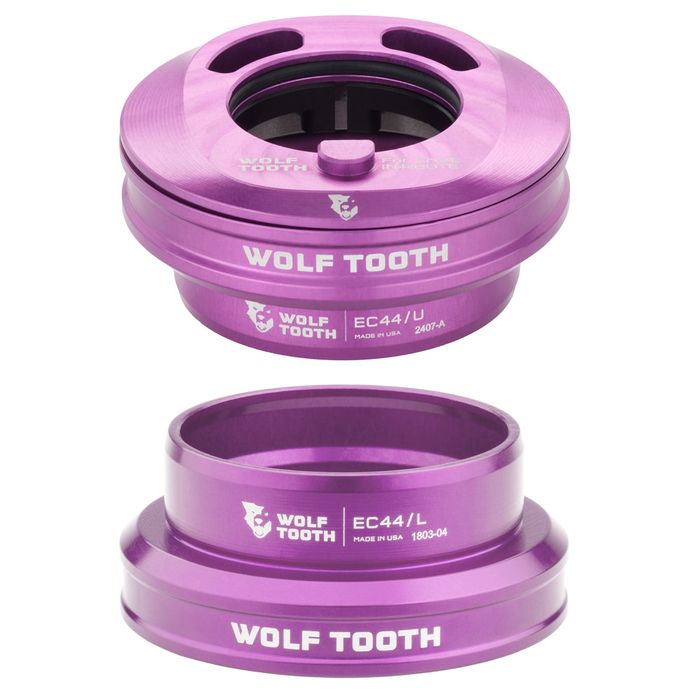

EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.
Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.
Compatibility
- Stack height designation for EC headsets includes 10mm cup
- Any frame that uses an external cup headset with a 34mm upper head tube inner diameter and 34mm
- Uppers and lowers sold separately.$128.00 (RRP)$128.00 (RRP)$128.00 (RRP)$128.00 (RRP)$128.00 (RRP)$128.00 (RRP)$128.00 (RRP)$128.00 (RRP) -
Stock Code:CKHS-BAB1Stock Code:CKHS-BAB2Stock Code:CKHS-BAR1Stock Code:CKHS-BAS1Stock Code:CKHS-BAT2Stock Code:CKHS-BAY1Stock Code:CKHS-BAM2
Chris King i2 Tapered 44/56mm headtube ( 1-1/8"/1.5" tapered fork)
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
This Chris King® Inset™ headset is a low-stack threadless headset for newer model frames with oversized head tubes. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
This Inset™ headset fits bikes from a number of manufacturers. As long as your bike doesn’t require an integrated headset and matches precise specifications (see specification chart below) this Inset™ headset will perform beautifully on your bike.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
You can buy with confidence from our Local Authorised webstores and retail outlets. They will provide Fast, Free, Reliable Shipping Australia wide.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Headset Type: Inset 2 Threadless GripLock™ InSet™
Weight: 170 grams
Warranty: 10 years
Steer tube OD: 1-1/8”
Upper head tube bore ID (tolerances): 44.0 mm (+0, -.05)
Lower head tube bore ID (tolerances): 55.95 mm (+0, -.05)
Upper cup minimum ream depth: 8 mm
Lower cup minimum ream depth: 11 mm
Fork crown seat OD: 39.8 mm
Press fit tolerance: .1 mm
Upper stack height: 8.2 mm
Lower stack height: 4.2 mm
Stem cap screw torque: 6-15 in. lbs$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP) -
Stock Code:CKHS-BCB1Stock Code:CKHS-BCB2Stock Code:CKHS-BCR1Stock Code:CKHS-BCS1Stock Code:CKHS-BCT2Stock Code:CKHS-BCBYStock Code:CKHS-BCY1Stock Code:CKHS-BCP1Stock Code:CKHS-BCM2Stock Code:CKHS-BCZ2
Every Chris King headset is built with our heat-treated bearings, and surgical-grade steel races machined simultaneously to ensure they are perfectly matched. As Chris King bearing tracks age and burnish, they actually get smoother, and all headsets are fully serviceable for years upon years of demanding riding.
The Chris King InSet™ 7 combines seamless design and legendary quality in a 44mm headset with an external lower cup that is a precision headset option for your 1.5” tapered steerer fork. Our InSet™ 7 is equipped with our exclusive built-in-house bearings and our patented GripLock® system for precise fit and function.
- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Legendary made-in-house bearings
- Patented GripLock® retention design for dependable headset adjustment (US Patent 8662517)
- Responsibly lightweight
- Designed specifically for a 44mm straight headtube and a 1-1/8” to 1.5” tapered steerer tube$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$390.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP) -
Stock Code:WTHS-IS42U-SPEC-3MM-BLK
Wolf Tooth headsets are machined here in our Minnesota shop with aircraft-grade 6061-T6 aluminum. They are designed to be lightweight, strong, and durable. Our headsets have three levels of industry-leading custom sealing to protect bearings from the elements and prolong the life of the headset. This has a stack height of 3mm and is available in a variety of colors to match other Wolf Tooth anodized color options. These IS headsets are made exclusively for Specialized frames with molded-in internal bearing cups. Like all Wolf Tooth Premium Headsets with Enduro stainless steel bearings, the Premium IS Headset for Specialized has a lifetime warranty.
Compatibility
- Any Specialized bike that uses an IS (Integrated Standard) headset with 42mm upper bearing diameter.
- Uppers and lowers sold separately.
- Enduro stainless steel sealed bearings included on both the upper and lower.
- Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
- Some bikes, like the Stumpjumper EVO, have an adjustable headset that resembles a ZS headset where an upper cup is pressed into the frame. Our bearing will fit into that cup and our top cap will fit neatly on top.
Known Compatible Specialized Bike Models:
Aluminum Mountain Bikes (except pre-2017 Chisel HT aluminum)
Camber Carbon | 2014
Chisel Alloy HT (Smartweld HT) | 2017-2021
Enduro 29 Carbon | 2014
Enduro Carbon | 2017, 2020
Epic Carbon | 2014
Epic FSR | 2021
Epic FSR Carbon | 2018
Epic HT | 2017, 2020
Fatboy Carbon | 2015
Fuse Carbon | 2017
Stumpjumper | 2021
Stumpjumper Carbon | 2019
Stumpjumper EVO | 2021
Stumpjumper FSR Carbon | 2016
Turbo Levo
$101.45 (RRP)Add To Cart
