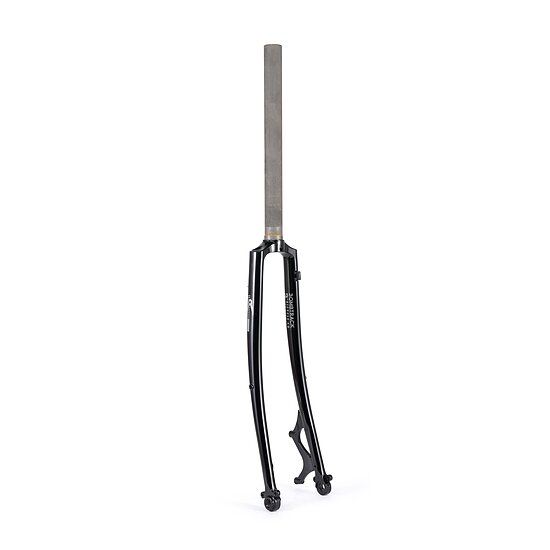

Bombtrack BT-FK-002 Arise Geared Fork
Description
- 4130 CroMo
- Thru Axle 12 mm x 100 mm, 1.5 thread pitch
- Rack / fender mounts
- Internal hub dynamo cable routing
- Fork max tyre clearance w/o fender 700C x 42C
- Axle to Crown 390mm
- Fork Offset 55mm
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLFK-FK0916
The Disc Trucker Fork. The classic Long Haul Trucker fork is now available in a disc brake option. Fear not the loaded descent.
· 100% CroMoly steel construction, curved blades, powdercoated
· Extensive mounting options with threaded eyelets in four locations: double eyelet dropouts, mid-blade, and a pair drilled into the fork crown
· 51mm IS disc brake mount
· 26" has clearance for a 2.1" tire
Specifications
Axle to Crown Length: 376 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Material: Steel
Maximum Tire Clearance (Fork): 45 mm
Offset: 45 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 400 mm
Steerer Type: Straight
Weight: 955 g
Wheel Size: 26"POA -
Stock Code:SAFK-FK0511
Crafted of Salsa Classico CroMoly, the CroMoto Grande delivers a great 29er ride. Suspension corrected for 80mm travel forks.
Axle to Crown Length: 468 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 9mm x 100mm
Material: Chromoly Steel
Wheel Mount Center Offset (mm): 0
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Type: Straight
Steerer Tube Length (mm): 260 mm
Weight: 1080 g
Wheel Size: 29"
Rotor Size (Fork): 180
Maximum Tire Clearance (Fork): 3.8POA -
Stock Code:SMFK23288
The MCX TA is a monster cross/gravel carbon fork with clearance to fit 29 x 2.0" tires and 27.5" x 2.1" tires. Extra long 350mm steerers fit most 62+cm frames
(The MCX also comes in a configuration for standard QR hubs. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)
– Axle to crown: 406mm
– Rake: 50mm
– 15mm thru axle
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 870g (Including thru-axle and uncut steerer)
– Matte Black finish$630.00 (RRP)Add To Cart
-
Stock Code:WSFK-FK7903
LONG TRAVEL FORK
For carving XC courses, going the distance on gravel roads, or roaming along bikepacking routes, the Whisky No.9 MTN Fork brings a new dimension to your mountain bike. The full unidirectional carbon construction paired with tapered steerer tube and thru-axle dropouts, delivers reliable strength and predictable steering.
- Lighter and stiffer than a suspension fork, it’s long enough to replace forks with 120 mm to 130 mm of travel
- 500mm axle to crown for use with modern trail bike geometry and fork travel
- Boost 110 mm spacing with clearance for up to a 29 x 3.0" or 27.5 x 3.0" tires
- Full internal routing for a dynamo light cable
- Two sets of Three-Pack mounts
- Whisky No.9 Thru Bolt and compression plug included
- Not compatible with Torque Cap equipped hubs
- Axle to Crown Length: 500 mm
- Brake Mount (Fork): Post Mount 160
- Offset: 51 mm
- Steerer Type: Tapered
- Steerer Tube Length (mm): 280 mmPOA -
Stock Code:BTFK-4055822521666
With the experience we gathered with the popular Bombtrack EXT V1 and V2 forks, and the collective feedback from customers we have developed a new gravel / adventure fork from the ground up. A lot of time and effort went into the development where we carefully chose every detail and feature according to what we learnt from the riders needs and expectations in a carbon gravel and adventure fork which we proudly think is the most feature-packed to date.
MATERIAL: Full UD carbon fiber
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 53 mm
AXLE TO CROWN: 410 mm
BRAKE: Flat Mount 160, rotor size 160 - 180 mm
INTERNAL ROUTING: Brake hose / Dynamo cable
MOUNTS: Triple Cage / Head light / Mudguards / Lowrider rack
INCLUDED: Through-Axle, Expander, Cable port plugs
WEIGHT: 530 g (w/o through axle, w/o bolts, uncut steerer)
TYRE CLEARANCE: 29 x 2.25 / 27.5 x 2.5
EXTRA INFO: Lowrider compatible.
ASTM RIDING CONDITION: 2
THROUGH-AXLE TYPE: 12x100 mm
TA THREADING DIAMETER X PITCH: M12 x 1.5
MIN. THREAD LENGTH: 14 mmWas:$610.00 (RRP)Now:$429.00 (RRP)Price:$429.00 (RRP)Add To Cart
