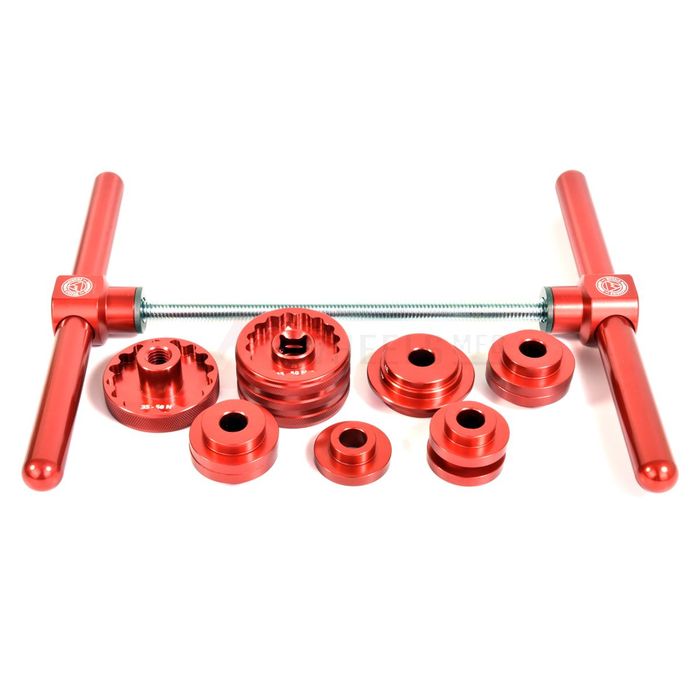

Wheels MFG BB Pro Install Kit
Description
Complete tool kit for installing Wheels Manufacturing bottom brackets. Kit includes our new bottom bracket socket tool for installing our BB cups, along with new sealed bearing drifts for the following ID bearings:
- 22mm
- 24mm
- 29mm
- 30mm
Bottom Bracket Press Pro Install Kit includes:
- UNC 48mm 16-notch Socket x 1
- 22x37 DRIFT 1/2" x 1
- 6806 OB 1/2" x 2
- 24x37 OB 1/2" x2
- 1/2" FRAME DRIFT x 1 1/2-13 x 9.7"
- THREADED ROD UNC x 1 44-48.5mm
- DOUBLE 16-notch 1/2" SOCKET x 1
- THREADED HANDLE x 2
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-WRENCH-BB48-44
Wheels Manufacturing very own double-ended bottom bracket wrench designed to fit 16-notch bearing cups with an outside diameter of 44mm as well as 16-notch bearing cups with an outside diameter of 48.5mm. Machined aluminum, anodized red.
Compatible with all current Wheels Mfg bottom brackets with notched cups.$70.00 (RRP)Add To Cart
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$72.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$239.00 (RRP)$255.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0021
Thin Flange Bottom Bracket Sockets Designed to create a tight grip on thin flange bottom brackets to avoid slipping while torquing cups into bike frames. These single-sided sockets are used for installing and removing 48.5mm, 16-notch, 54mm 16-notch and 54mm 12-notch bottom bracket cups.
The sockets have a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red
Kit includes:
(1) 1/2" UNC Threaded Rod
(1) 1/2" Adjustable Press Stop
(1) 6806/29 Bearing Drift
(1) 6806 Bearing Drift
(1) 24x37 Bearing Drift
(1) Wheels MFG Thin Flange Bottom Bracket Socket for 48.5mm, 16-notch pattern.
(1) SRAM Thin Flange T47 Bottom Bracket Socket for 54mm 16-notch pattern.
(1) Praxis Thin Flange T47 Bottom Bracket Socket for 54mm 12-notch pattern.$345.00 (RRP)Add To Cart
-
Stock Code:WMTL-EX0004
Bearing extractors set for pushing out 22mm, 24mm, 29, and 30mm ID sealed bearings from bottom bracket cups. Compatible with our 1/2" threaded press rod and handles (PRESS-7 and PRESS-7-PRO).
Includes
(1) 30mm ID sealed bearing extractor
(1) 29mm ID sealed bearing extractor
(1) 24mm ID sealed bearing extractor
(1) 22mm ID sealed bearing extractor
(1) 52mm receiver cup
(1) 44mm receiver cup sleeve
(1) 42mm receiver cup sleeve
(1) 39mm receiver cup sleeve
(1) bearing pusher shaft
Extractors for 25mm and 29mm ID bearings available separately:
BE-25MM-SET$276.00 (RRP)Add To Cart
-
Stock Code:WMTL-BP0013
DESIGNED TO PRESS IN ALL CURRENT WHEELS MFG BOTTOM BRACKETS!
Our universal bottom bracket drift is designed to press all current Wheels Mfg bottom bracket cups in to your frame. The adapter is machined with multiple steps to fit common bottom bracket shell and bearing diameters listed in the Compatibility tab below. Each step is laser etched with the diameter size.
Drift can also can be used as a frame bottom bracket shell sizing guide!
Recommended for use with Wheels Mfg Universal BB Press, but can be used with PRESS-1 or PRESS-4 handles.
-Inner hole sized to fit 1/2" threaded rod
-Compatible with any other press with a 1/2" diameter rod
-Recommended for use with Wheels Mfg BP0006, BP0007
-Machined aluminum
We do not recommend it for use with press with a rod diameter less than 1/2". When used with a smaller rod, it is almost impossible to prevent the cups or bearings from pressing in straight.
* Sold individually (2 drifts required for some installations) *
Drifts fit the following BB shell sizes:
BB30 (42mm)
PF30 (46mm)
BB86, BB92 (41mm)
BBRight (46mm)
BB386EVO (46mm)
Cannondale BB30A (42mm)
Cannondale PF30A (46mm)
Specialized Carbon OSBB (46mm)
Specialized Alloy OSBB (42mm)
TREK BB90, BB95 (37mm)
PF24 (41mm)Expected Date:20 January 2025$42.00 (RRP)
