Wheels MFG Thin Flange BB Socket 48mm
Description

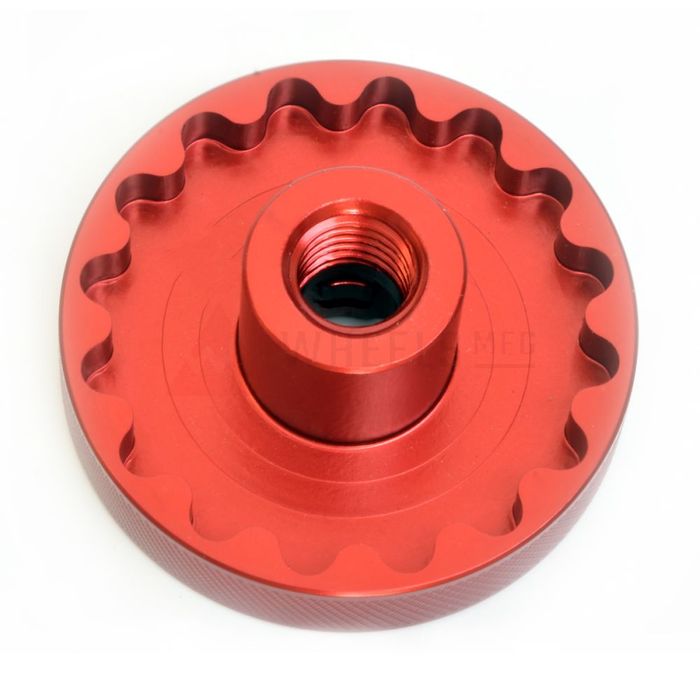

Thin Flange Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 48.5mm, 16-notch bottom bracket cups. The socket has a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Read more
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Stock Level:In StockStock Level:2Stock Level:Out of StockStock Level:1Stock Level:1Stock Level:In StockStock Level:In StockStock Level:In StockStock Level:2Stock Level:2Stock Level:2Stock Level:2Stock Level:1Stock Level:1Stock Level:2Stock Level:In StockStock Level:In StockStock Level:In StockStock Level:In StockStock Level:2Stock Level:Out of Stock$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-29SRAM-OB
29mm open bore adapter is used to press 29mm x 42mm (DUB) sealed bearings. The adapter is machined with one step at 29mm OD, which fits into the center of the sealed bearing. For use with Wheels Mfg Bottom Bracket Press (PRESS-7, PRESS-7-PRO or PRESS-9-PRO)
Read more
Installs: 29X42 (DUB) bearing
Inner Step Outer Diameter: 41.8mm
Outer Diameter: 28.9mm
Thru Hole Diameter: 12.8mm (1/2")
Thickness: 7mm
Compatible with PRESS-7, PRESS-7-PRO or PRESS-9-PRO handles/rod.
Machined, red anodized aluminum
Sold individuallyStock Level:2Stock Level:2$18.00 (RRP)Add To Cart
-
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Read more
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punchStock Level:In StockStock Level:1Stock Level:In StockStock Level:2Stock Level:In StockStock Level:2Stock Level:2Stock Level:2Stock Level:1Stock Level:1Stock Level:2Stock Level:Out of StockStock Level:2Stock Level:2Stock Level:1Stock Level:2Stock Level:1Stock Level:In StockStock Level:In StockStock Level:1Stock Level:2Stock Level:2Stock Level:In StockStock Level:In Stock$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$72.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$239.00 (RRP)$255.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BBGAUGE
The Bottom Bracket Gauge Tool was designed to provide all the necessary measurements to identify the proper bottom bracket for a specific bike configuration. The gauge can measure:
Read more
bottom bracket width
bottom bracket shell inner diameter
crank spindle length
crank spindle diameter
bearing inner diameter
A metric scale runs along the long edges for measuring bottom bracket shell width and crank spindle lengths. Durable red anodized aluminum with laser etching.
Overall size 7" x 3" x 0.125".Stock Level:Out Of StockStock Level:Out of Stock$49.00 (RRP) -
Stock Code:WMTL-BP0023
Bottom Bracket Socket Designed to create a tight grip on thin flange bottom bracket to avoid slipping while torquing cups into bike frames. This single-sided socket is used for installing and removing 44mm, 16-notch bottom bracket cups. The socket has a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and locks onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red
Read more
- 44mm
- 16 Notch
- 6061 AluminumStock Level:In StockStock Level:In Stock$81.00 (RRP)Add To Cart
