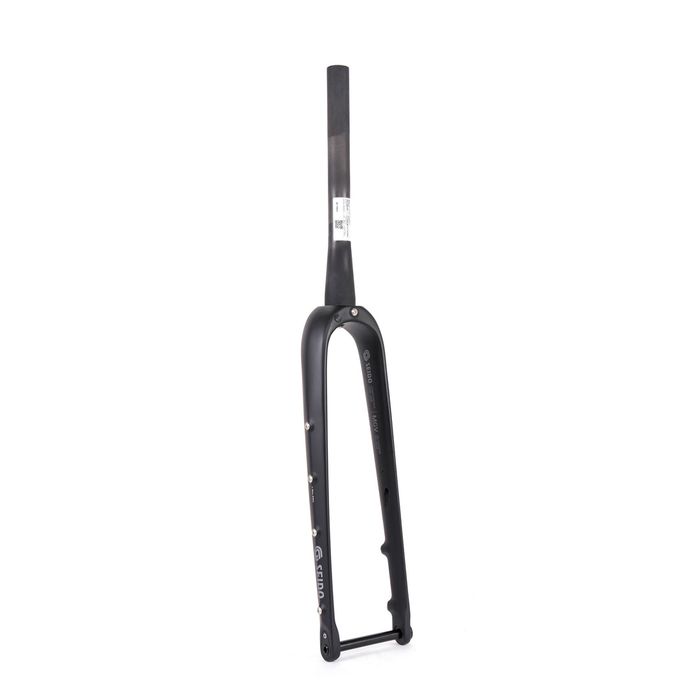

SEIDO MGV Carbon Fork TAP 12x100
Description
With the experience we gathered with the popular Bombtrack EXT V1 and V2 forks, and the collective feedback from customers we have developed a new gravel / adventure fork from the ground up. A lot of time and effort went into the development where we carefully chose every detail and feature according to what we learnt from the riders needs and expectations in a carbon gravel and adventure fork which we proudly think is the most feature-packed to date.
MATERIAL: Full UD carbon fiber
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
OFFSET: 53 mm
AXLE TO CROWN: 410 mm
BRAKE: Flat Mount 160, rotor size 160 - 180 mm
INTERNAL ROUTING: Brake hose / Dynamo cable
MOUNTS: Triple Cage / Head light / Mudguards / Lowrider rack
INCLUDED: Through-Axle, Expander, Cable port plugs
WEIGHT: 530 g (w/o through axle, w/o bolts, uncut steerer)
TYRE CLEARANCE: 29 x 2.25 / 27.5 x 2.5
EXTRA INFO: Lowrider compatible.
ASTM RIDING CONDITION: 2
THROUGH-AXLE TYPE: 12x100 mm
TA THREADING DIAMETER X PITCH: M12 x 1.5
MIN. THREAD LENGTH: 14 mm
