Wheels MFG XTR Cap Driver
Description

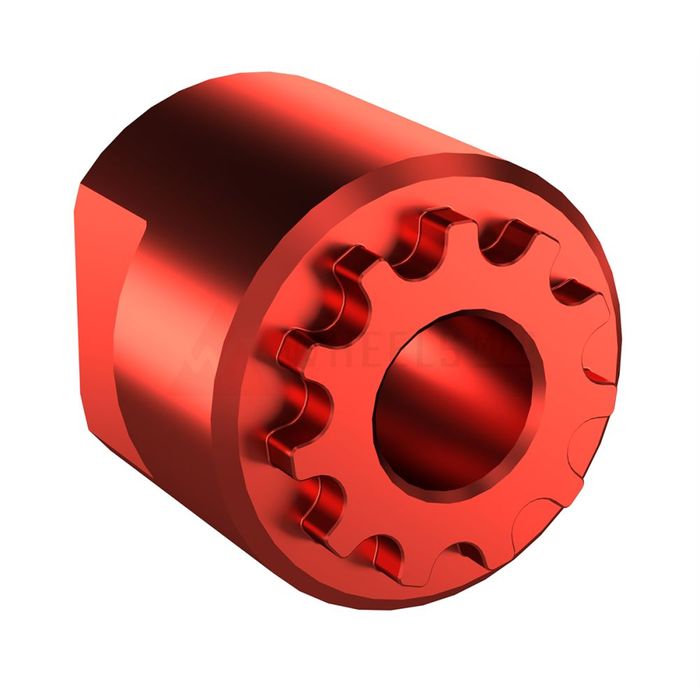

The XTR Cap Driver is used for removing and installing the fixing bolt cap on XTR M9100 series crankarms. Designed to be used with a 3/8” drive socket or torque wrench for easy installation and removal.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-6000OA-6Stock Code:WMTL-6001OA-7Stock Code:WMTL-6002OA-7Stock Code:WMTL-6003OA-7Stock Code:WMTL-6802OA-20Stock Code:WMTL-6803OA-20Stock Code:WMTL-6804OA-20Stock Code:WMTL-6900OA-40Stock Code:WMTL-6901OA-2Stock Code:WMTL-6901OA-40Stock Code:WMTL-6902OA-7Stock Code:WMTL-6903OA-7Stock Code:WMTL-6904OA-7
Our 6000 over axle adapter is used to press 6000 sealed bearings into hub shells or suspension components. An over axle adapter is necessary when the bearing slides over the axle before it is pressed into the hub shell or suspension component. In addition to the adapter, you often need spacers to clear the end of the axle and allow enough clearance for the press to fully push in the bearing.
Installs: 6000 bearing
Outer Diameter: 25.8mm
Thickness: 6mm
Thru Hole Diameter: 10.2mm
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (multiple adapters required for some installations)Expected Date:20 January 2025Expected Date:20 January 2025Expected Date:20 January 2025$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP) -
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:20 January 2025Expected Date:20 January 2025Expected Date:20 January 2025Expected Date:20 January 2025$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$72.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$239.00 (RRP)$255.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-BP0004
This drift and over axle set is used to install less common-sized thru-axle and frame sealed bearings.
Compatible with the 3/8 Wheels Mfg. BP0001, BP0005, Press 1 handles and rod.
Originally Driftset-Hub1
Contains the following Open Bore Drift sizes:
(2) 6000 Open Bore
(2) 6001 Open Bore
(2) 6002 Open Bore
(2) 6003 Open Bore
(2) 6801 Open Bore
(2) 6805 Open Bore
(2) 6900 Open Bore
(2) 6904 Open Bore
(2) 17x28 Open Bore
Contains the following Over Axle Drift sizes:
(2) 6000 Over Axle
(2) 6001 Over Axle,
(2) 6002 Over Axle,
(2) 6003 Over Axle
(2) 6900 Over Axle,
Contains the following speed spacers:
(2) Frame Linkage Standoff 20
(2) Frame Linkage Standoff 30
(2) Speed Spacer 30mm
(1) Speed Spacer 15x25
(1) Speed Spacer 15x35
(1) Speed Spacer 17x25
(1) Speed Spacer 17x35
(1) Speed Spacer 20x25
(1) Speed Spacer 20x35Expected Date:20 January 2025$295.00 (RRP) -
Stock Code:WMTL-AXLERULER-PRO
Feast your eyes on the Axle Ruler Pro – the precision tool that's about to revolutionize your bike mechanic game! Crafted with pure stoke by the legends at Wheels Manufacturing, this bad boy is here to make sure you never second-guess those axle measurements again.
Need to find your Axle thread pitch? We have you covered with a wide range of measurements in both male and female for Solid, QR and Thru Axles including:
M9x1, M9x26, 3/8"x24, 3/8"x26, M10x1, M10x26, M12x1, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M15x1, M15x1.5
No more noodling around with different sizes – the Axle Ruler Pro has it all, so you can lock in those measurements with style.
The self-centering axle measurement channel is a game-changer, making axle length measurements a breeze. With an 11-inch and a 28-centimeter ruler in the mix, the Axle Ruler Pro adapts to your vibe. Inches or centimeters, take your pick – it's all about giving you the freedom to roll your way.
Axle length, thread size, pitch or length – whatever you need, this ruler's got your back. No more overthinking, just pure accuracy.
Crafted from 6061 aluminum.$199.50 (RRP)Add To Cart
