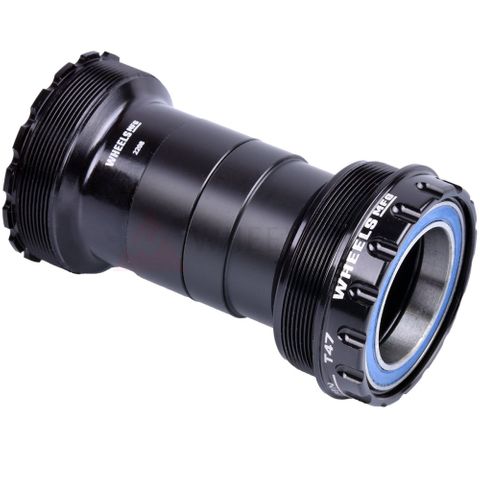

Wheels MFG T47A BB Sram GXP ABEC 3
Description
T47a (asymmetrical) threaded BB cups for T47a frames and 22mm/24mm diameter spindle GXP compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility:
Cervelo T47a 79mm shell width
Factor T47a 77.5mm shell width
Felt T47a 77mm shell width
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMBB-BB30-OUT-1
Wheels Manufacturing’s new BB30 to Outboard bottom bracket is designed for installing 24mm (Shimano, FSA, Etc.) cranks into BB30 frames without the need for any adapters.
Weight: 153g
Made in the USA
Choose from Black or Red anodized machined aluminum cups
Enduro ABEC 3 sealed bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm (Shimano, FSA, Etc.) cranks
Bottom Bracket Shell Width (mm): 68mm - 73mm
Bottom Bracket Shell I.D.: 42mmStock Level:Out Of StockStock Level:Out of StockExpected Date:20 May 2025$216.00 (RRP) -
Stock Code:WMBB-BBRIGHT-OUT-3
BBRight™ Outboard Angular Contact BB for use with 24mm spindle (Shimano) cranks. Fully serviceable. In Angular Contact (A/C) bearings, ALL balls are engaged and spread the force over a larger surface area, to decrease friction and minimize wear.
Note: Use only bottom bracket tools compatible with 16-notch MegoEvo BB’s. (FSA MegaEvo and Park Tool BBT-29).
Weight: 98g
Black anodized, machined aluminum cups
Enduro Angular Contact bearings
Dual silicone seal keeps the contamination out for longer life
Will accept current 24mm spindle (Shimano) cranksets.Stock Level:1Stock Level:1$230.00 (RRP)Add To Cart
-
Stock Code:WMBB-386EVO-BB29MM
Thread together BB for 386EVO frames and 29mm spindle diameter SRAM DUB compatible cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.
No more creaking. Smooth operation. Fast bearing replacement.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacerStock Level:In StockStock Level:In Stock$216.00 (RRP)Add To Cart
-
Stock Code:CKBB-ABB1Stock Code:CKBB-ABR1Stock Code:CKBB-ABS1Stock Code:CKBB-ABBYStock Code:CKBB-ABY1Stock Code:CKBB-ABM2Stock Code:CKBB-ABT2Stock Code:CKBB-ABP1Stock Code:CKBB-ABZ2
** FIT KIT REQUIRED FOR USE **
ThreadFit 30 comes with a Center Sleeve for 73mm BB shell. For 68mm shell - sleeve is required(included in Fit Kit #2 for DUB Road cranks).
ThreadFit 30 bottom bracket is silky smooth and long-lasting thanks to legendary, angular-contact bearings. They actually get faster over time as their contact surfaces wear, because they are build to ultra-tight aerospace tolerances, using machined, Delrin-spindle sleeves to create a perfect, and precise fit between cranks and frame. That’s where the low drag and butter smooth feel come from.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- Engineered, manufactured and assembled in Portland, Oregon USA
- King Lifetime Warranty
- Legendary made-in-house bearings
- A Fit Kit is required for use
- Uses Chris King bottom bracket cup tool for installationStock Level:1Stock Level:Out of StockStock Level:Out of StockStock Level:Out of StockStock Level:1Stock Level:Out of StockStock Level:Out of StockStock Level:Out of StockStock Level:Out of StockStock Level:Out of StockExpected Date:06 May 2025Expected Date:06 May 2025Expected Date:06 May 2025Expected Date:06 May 2025$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$403.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP) -
Stock Code:CKBB-ADB2Stock Code:CKBB-ADS1Stock Code:CKBB-ADB1Stock Code:CKBB-ADM2Stock Code:CKBB-ADP1
** FIT KIT REQUIRED FOR USE **
ThreadFit™ T47 24x fits 68mm and 73mm shell widths with 24mm spindles.
It’s a silky smooth, long-lasting bottom bracket built around King’s legendary, angular-contact bearings, either steel or ceramic. These are the best bearings in the industry, and actually get faster over time, as their contact surfaces wear.
You want this bottom bracket because it offers super low drag. You want this bottom bracket, because it can be opened, cleaned and repacked for years of faithful service. You want this bottom bracket, because you don’t want to think an awful lot about your bottom bracket.
- King Lifetime Warranty
- Legendary made-in-house bearings
- Threaded security with PressFit 30 shell stiffness
- A Fit Kit is required for use
- Engineered, manufactured and assembled in Portland, Oregon USA
- Uses Chris King bottom bracket cup tool for installationStock Level:1Stock Level:Out of StockStock Level:1Stock Level:Out of StockStock Level:Out of StockStock Level:Out of Stock$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)$349.00 (RRP)
