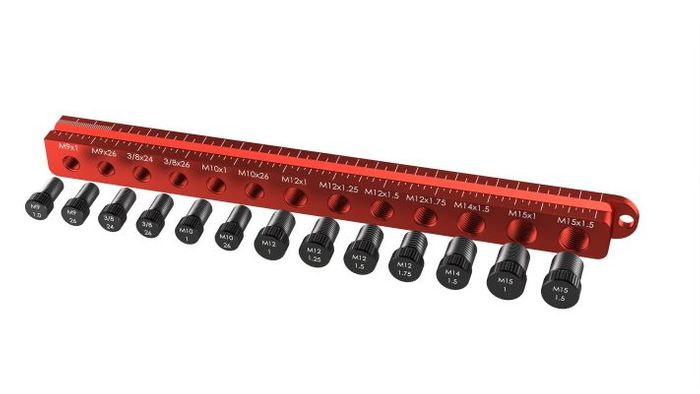

Wheels MFG Axle Ruler Pro
Description
Feast your eyes on the Axle Ruler Pro – the precision tool that's about to revolutionize your bike mechanic game! Crafted with pure stoke by the legends at Wheels Manufacturing, this bad boy is here to make sure you never second-guess those axle measurements again.
Need to find your Axle thread pitch? We have you covered with a wide range of measurements in both male and female for Solid, QR and Thru Axles including:
M9x1, M9x26, 3/8"x24, 3/8"x26, M10x1, M10x26, M12x1, M12x1.25, M12x1.5, M12x1.75, M14x1.5, M15x1, M15x1.5
No more noodling around with different sizes – the Axle Ruler Pro has it all, so you can lock in those measurements with style.
The self-centering axle measurement channel is a game-changer, making axle length measurements a breeze. With an 11-inch and a 28-centimeter ruler in the mix, the Axle Ruler Pro adapts to your vibe. Inches or centimeters, take your pick – it's all about giving you the freedom to roll your way.
Axle length, thread size, pitch or length – whatever you need, this ruler's got your back. No more overthinking, just pure accuracy.
Crafted from 6061 aluminum.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WMTL-1526OBStock Code:WMTL-1728OBStock Code:WMTL-2437OBStock Code:WMTL-27537OBStock Code:WMTL-6000OBStock Code:WMTL-6001OBStock Code:WMTL-6002OBStock Code:WMTL-6003OBStock Code:WMTL-6801OB-1Stock Code:WMTL-6802OB-1Stock Code:WMTL-6803OB-1Stock Code:WMTL-6804OBStock Code:WMTL-6805OBStock Code:WMTL-6806OBStock Code:WMTL-6900OB-1Stock Code:WMTL-6901OB-1Stock Code:WMTL-6902OBStock Code:WMTL-6903OBStock Code:WMTL-6904OBStock Code:WMTL-GXP-LEFT
Open Bore adapters, also known as drifts, are used to press cartridge bearings in to bottom bracket cups, hub shells, freehub bodies and suspension frame pivots. Each adapter has a smaller diameter that inserts in to the center of a bearing, and a larger diameter section that matches the outside diameter of the bearing. When used with a bearing press, the adapter presses against the races of the bearing, properly aligns the bearing and prevents damage as the bearing is pressed in.
Our 1526 open bore adapter is used to press 26x15 sealed bearings. The adapter is machined with one step at 15mm OD, which fits in to the center of the sealed bearing.
Installs: 15267, 15268 bearings
Inner Step Outer Diameter: 14.8mm
Outer Diameter: 25.8mm
Thru Hole Diameter: 0.387" (9.8mm)
Inner hole sized to fit 3/8" ACME threaded rod
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (2 drifts required for some installations)Expected Date:14 March 2025Expected Date:14 March 2025$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$21.00 (RRP) -
Stock Code:WMTL-6000OA-6Stock Code:WMTL-6001OA-7Stock Code:WMTL-6002OA-7Stock Code:WMTL-6003OA-7Stock Code:WMTL-6802OA-20Stock Code:WMTL-6803OA-20Stock Code:WMTL-6804OA-20Stock Code:WMTL-6900OA-40Stock Code:WMTL-6901OA-2Stock Code:WMTL-6901OA-40Stock Code:WMTL-6902OA-7Stock Code:WMTL-6903OA-7Stock Code:WMTL-6904OA-7
Our 6000 over axle adapter is used to press 6000 sealed bearings into hub shells or suspension components. An over axle adapter is necessary when the bearing slides over the axle before it is pressed into the hub shell or suspension component. In addition to the adapter, you often need spacers to clear the end of the axle and allow enough clearance for the press to fully push in the bearing.
Installs: 6000 bearing
Outer Diameter: 25.8mm
Thickness: 6mm
Thru Hole Diameter: 10.2mm
Compatible with PRESS-1 or PRESS-4 handles
Machined, red anodized aluminum
Sold individually (multiple adapters required for some installations)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP)$18.00 (RRP) -
Stock Code:WTTLFWI-CISStock Code:WTTLFWI-H16Stock Code:WTTLFWI-H8Stock Code:WTTLFWI-KIT-01Stock Code:WTTLFWI-LRStock Code:WTTLFWI-S20Stock Code:WTTLPACKWRENCH
Ultralight Cinch and ISIS Spline Wrench Insert - older ISIS bottom brackets or the Race Face Cinch direct mount chainring system.
Steel hex wrench inserts were designed to pair with the Pack Wrench - Ultralight 1 Inch Hex and Bottom Bracket Wrench.
- The aluminum wrench (sold separately) has magnets that hold the inserts in place
- Made in the USA and CNC machined from hardened steel with electroless nickel plating
- Inserts each sold separately
We travel a lot with our bikes and are always looking for the leanest way to have everything we need to build or service a bike without packing 50 lbs of tools. To help with this we developed some very specific Pack Tools that are high quality but weight conscious for those that do mobile wrenching, travel with their bike, or just want one set of tools that can be thrown in when heading to the trail. While the Pack Wrench is lightweight, we wouldn't necessarily call the inserts lightweight. We made the inserts out of steel for extra strength and durability.$39.14 (RRP)$48.41 (RRP)$48.41 (RRP)$225.57 (RRP)$39.14 (RRP)$39.14 (RRP)$100.00 (RRP) -
Stock Code:WMTL-GXP22-EXTStock Code:WMTL-BE-22MM-SETStock Code:WMTL-BE-24MM-SETStock Code:WMTL-24X37-EXTStock Code:WMTL-BE-25MM-SETStock Code:WMTL-29MM-EXTStock Code:WMTL-BE-29MM-SETStock Code:WMTL-BE-30MM-SETStock Code:WMTL-608-EXTStock Code:WMTL-609-EXTStock Code:WMTL-6000-EXTStock Code:WMTL-6001-EXTStock Code:WMTL-6002-EXTStock Code:WMTL-6003-EXTStock Code:WMTL-6804-EXTStock Code:WMTL-6805-EXTStock Code:WMTL-6806-EXTStock Code:WMTL-EX0001Stock Code:WMTL-EX0002Stock Code:WMTL-EX0003Stock Code:WMTL-BE-PUSHERStock Code:WMTL-PUSHERStock Code:WMTL-R6-EXT
6000, 6200, 6800 & 6900 (10mm) Sealed Bearing Extractor
Individual extractor for removing 6000, 6200, 6800 & 6900 sealed bearings
6000: Bearing ID: 10mm / OD: 26mm / Width: 8mm
6200: Bearing ID: 10mm / OD: 30mm / Width: 9mm
6800: Bearing ID: 10mm / OD: 19mm / Width: 5mm
6900: Bearing ID: 10mm / OD: 22mm / Width: 6mm
Insert the extractor into the bearing, tighten one side with an Allen key, and the collet expands to grip the inside of the bearing
Tap the extractor out with a punch$49.00 (RRP)$65.00 (RRP)$65.00 (RRP)$75.00 (RRP)$65.00 (RRP)$72.00 (RRP)$65.00 (RRP)$65.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$72.00 (RRP)$74.00 (RRP)$74.00 (RRP)$74.00 (RRP)$239.00 (RRP)$239.00 (RRP)$255.00 (RRP)$26.00 (RRP)$19.00 (RRP)$75.00 (RRP) -
Stock Code:WMTL-XTR-CAP-DRIVER
The XTR Cap Driver is used for removing and installing the fixing bolt cap on XTR M9100 series crankarms. Designed to be used with a 3/8” drive socket or torque wrench for easy installation and removal.
$30.00 (RRP)Add To Cart
