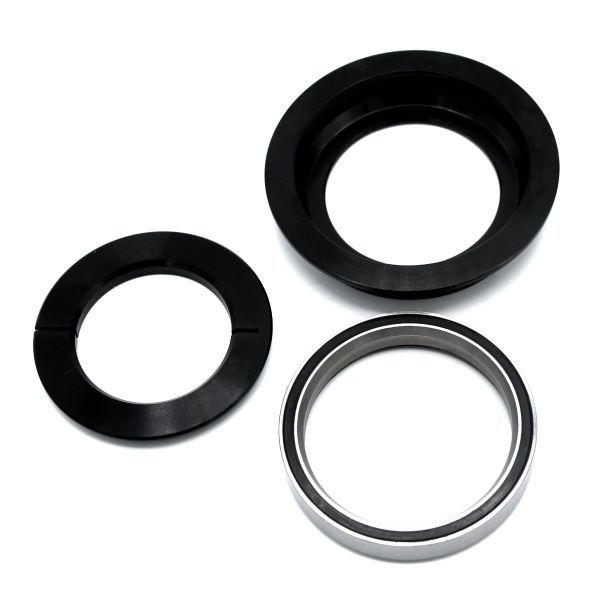

BlackBearing Headset Lower ZS66/40
Description
ZS66 Lower Pivot headset assembly for 1.5" steerer.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:TGHS-TG36ZS2
Tange Technoglide ZS22 1-1/8 black 44mm OD
Tange-Seiki originated this standard. A low profile headset where the bearings ride in a cup inserted into the headtube. Sealed cartridge bearings. 13.5mm stack height. 84g. 1-1/8" size.$79.00 (RRP) -
Stock Code:CKHS-I4-HSI4SStock Code:CKHS-I4-HSI4T
Chris King Inset i4 Silver 1.5"/49mm Frame suit 1-1/8" fork steerer GripLock
This Chris King® threadless headset features a bearing cap design called GripLock™. GripLock™ is a multi-piece bearing cap that utilizes a split ring that improves steerer tube interface.
InSet™ Model 4 with GripLock™ bearing cap is intended for 1 1-8” steerer dual crown forks, fits bikes from a number of manufacturers and is for long travel applications. As long as your bike doesn’t require an integrated headset this Inset™ headset will perform beautifully on your bike.
This Chris King® Inset™ headset is a low-stack threadless headset. Like other Chris King® headsets, it features user-serviceable stainless steel bearings. Chris King’s bearings are legendary because their design gives you years of trouble free performance with only routine maintenance.
It is absolutely essential that proper reaming and facing of your bike’s head tube be performed by a qualified mechanic during installation of this Inset™ headset. Also, please be aware that modifying a frame to make the Inset™ fit is not a proper method of installation. The proper installation of this headset is so important that you are encouraged to choose another headset if you are not able to have this Inset™ headset properly installed. We highly recommend that you carefully check your bike's specifications before ordering this headset and contact your bike manufacturer if necessary. Please note that we are unable to accept for return, exchange, or credit any headset that has been installed or has been attempted to be installed. This insures that all of our customers receive only pristine, brand new components. Thank you for your understanding. Once properly installed, this Chris King® Inset™ headset will give you years of world class performance.
A wealth of other information is available on the Chris King® website.
American made in USA (U.S.A.)
Specifications:
Warranty: 10 years
Steer tube OD: 1-1/8 inch
Upper head tube ID (tolerances): 49.61mm (+0, -.04)
Lower head tube ID (tolerances): 49.61mm (+0, -.04)
Upper cup minimum ream depth: 16mm
Lower cup minimum ream depth: 16mm
Fork crown seat OD: n/a
Maximum press fit: 0.075mm
Upper stack height (upper cup + bearing cap): 8.0mm
Lower stack height (lower cup + baseplate): 4.0mm
Stem cap screw torque: 15 in. lbs
Weight:120 grams$293.10 (RRP)$293.10 (RRP) -
Stock Code:WTHSECEC49L-G2-L-BLK-B
EC44/28.6 Upper, EC49/40 Lower 2 Degree Geoshift Long 115-140 mm Head Tube Length
Adjust the geometry of your bike by changing the head tube angle by 2º with the GeoShift 2º Performance Angle Headset. It allows you to change the head tube angle by -2º to make for a slacker geometry for added stability on fast descents, or by +2º by using the opposite orientation of the headset to make for a steeper geometry for quicker steering with maximum front wheel traction.
The GeoShift Performance Angle Headset features a design in which the bearings sit at an angle that aligns with the steerer tube. This compares to angle headsets that have bearings that sit flat, which adds unneeded friction and stress on the bearings. This design with angled bearings also prevents the creaking that is common with angle headsets that feature a spherical design.$231.00 (RRP)Add To Cart
-
Stock Code:WTHSZS56L-40-BLKStock Code:WTHSZS56L-40-BLUStock Code:WTHSZS56L-40-GLDStock Code:WTHSZS56L-40-GRNStock Code:WTHSZS56L-40-ORGStock Code:WTHSZS56L-40-PRPStock Code:WTHSZS56L-40-REDStock Code:WTHSZS56L-40-RSIL
ZS headsets are for frames with internal bearing cups that are pressed into the frame.
Premium Headsets with Enduro stainless steel bearings have a lifetime warranty.
Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our headsets have three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable.$120.00 (RRP)$120.00 (RRP)$120.00 (RRP)$120.00 (RRP)$120.00 (RRP)$120.00 (RRP)$120.00 (RRP)$120.00 (RRP) -
Stock Code:CKHS-BHB1Stock Code:CKHS-BHB2Stock Code:CKHS-BHB3Stock Code:CKHS-BHR1Stock Code:CKHS-BHS3Stock Code:CKHS-BHBYStock Code:CKHS-BHM2Stock Code:CKHS-BHY1
The NoThreadSet™ is built to be precise and dependable and sets the standard for quality headset function delivering precision performance to numerous world champions, grand tour winners, and aspiring riders around the world.
- Fits 34mm headtube
- Engineered, manufactured and assembled in Portland, Oregon USA
- 10-year built-to-last warranty
- Legendary made-in-house bearings
- Patented GripLock® retention design for exclusively reliable headset adjustment (1-1/8” only)
- Available in 9 beautifully anodized colors in both bold and sotto voce marking options
- Responsibly lightweightExpected Date:24 January 2025Expected Date:24 January 2025Expected Date:24 January 2025Expected Date:24 January 2025Expected Date:24 January 2025$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)$339.00 (RRP)
