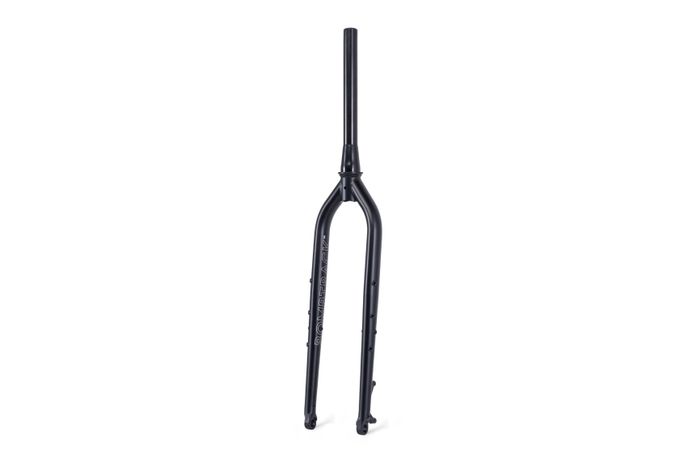

Bombtrack BPS Fork Black TAP 15mm
Description
Proven and tested on our Beyond+ bikes, our BikePacking Steel Fork is now available separately to pair it with our Beyond+ Framesets or to upgrade your existing bike with more load-carrying capabilites.
BLADES: Crmo steel
STEERER: Crmo steel
STEERER SIZE / S.H.I.S.: 1.1/8"-1.1/2" / 28.6 | 40
CROWN RACE DIAMETER: 40 mm
STEERER LENGTH: 300 mm
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
AXLE: 15x110mm, Thread: M15 x 1.5 mm (not incl.)
BRAKE: Postmount, 203mm max. rotor size
CROWN DRILLING: M6 through-hole
TYRE CLEARANCE: 27.5" x 3.0" / 29" x 3.0"
MOUNTS: 2x Triple Cage Mounts, lowrider mounts (inside and outside), fender mounts
WEIGHT: 1590g (uncut steerer, incl. 10 mounting bolts)
