- Surly Dinner Fork 485mm Black

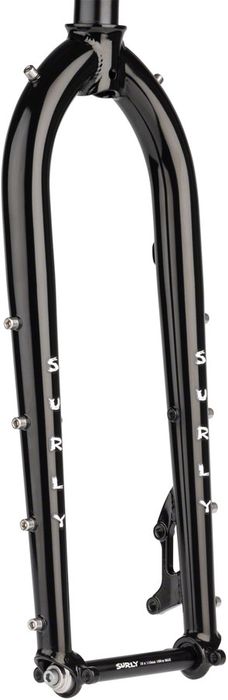

Surly Dinner Fork 485mm Black
Description
The Dinner Fork can handle most any task and terrain. Made from 100% Surly Chromoly steel and ready to accommodate both 27.5” and 29” wheel sizes, the fork offers impressive tire clearance, fender and rack compatibility, and 3-pack mounts on each leg.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLFK-FK0916
The Disc Trucker Fork. The classic Long Haul Trucker fork is now available in a disc brake option. Fear not the loaded descent.
· 100% CroMoly steel construction, curved blades, powdercoated
· Extensive mounting options with threaded eyelets in four locations: double eyelet dropouts, mid-blade, and a pair drilled into the fork crown
· 51mm IS disc brake mount
· 26" has clearance for a 2.1" tire
Specifications
Axle to Crown Length: 376 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Material: Steel
Maximum Tire Clearance (Fork): 45 mm
Offset: 45 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 400 mm
Steerer Type: Straight
Weight: 955 g
Wheel Size: 26"Stock Level:1Stock Level:1POA -
Stock Code:SLFK-FK0950
Our Straggler fork is very much like our Cross-Check fork…it’s a lugged and brazed CroMoly fork with room for 700c tires up to 50mm wide. Both feature fender and rack mount eyelets at the dropouts, mid-blade threaded rack mounts and threaded eyelets on the sides of the crown for accessories. Both deliver a resilient ride and are finished in black powdercoat. The Straggler fork is equipped with a 51mm I.S. disc caliper mount and no accommodation for rim brakes.
Axle-to-crown: 400mm
Offset: 44mm
Steerer: 350mm, 1-1/8 straight
Tire Clearance: 50mm (w/o fender) Weight: 2.5 lb (1.15kg) uncutStock Level:In StockStock Level:In StockPOA -
Stock Code:WSFK-FK9910
29er Fork
The No.9 Thru Axle Mountain fork features full unidirectional carbon construction with tapered steerer tube and thru-axle dropouts for strength and predictable steering.
ASTM Condition 3 - For rough off-road riding and jumps less than 24"
Custom DT RWS Skewer and compression plug included
15mm thru-axle, 100mm spacing
No rider weight limit
Axle to Crown Length: 483 mm
Brake Mount (Fork): Post Mount 160
Color: Matte Carbon
Crown Race: 40
Defined Color: Black
Front Axle: 15mm Thru x 100mm
Maximum Tire Clearance (Fork): 3.0"
Offset: 51 mm
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 300 mm
Steerer Type: Tapered
Weight: 730 g
Wheel Size: 29"Stock Level:In StockStock Level:In Stock$800.00 (RRP)POA -
Stock Code:SMFK23289
The MCX QR is a monster cross/gravel carbon fork with clearance to fit 700 x 50mm tires and 27.5" x 2.1" tires
(The MCX also comes in thru-axle configuration. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)
– Axle to crown: 406mm
– Rake: 50mm
– QR hub dropout
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 760g
– Matte Black finishStock Level:1Stock Level:1$630.00 (RRP)Add To Cart
-
Stock Code:BTFK-4055822521413
The RGT fork delivers an upgrade pack to any contemporary Allroad / Gravel bike with matching geometry. It boosts tire clearance up to 47-622 and 54-584, accepts brake rotors up to 180mm and is ready to work with frames that route cables fully internal and added triple cage mounts on each fork leg help carry more gear along. All while being stiff and low in weight thanks to an advanced carbon fiber construction.
MATERIAL: Full UD Carbon Fiber
STEERER: Tapered, 1-1/8" - 1-1/2", 300 mm Length
S.H.I.S. DIMENSIONS: 28.6 | 40
OFFSET: 50 mm
AXLE TO CROWN: 400 mm
BRAKE: Flat Mount 160, rotor size 160 - 180 mm
INTERNAL ROUTING: Brake hose / Dynamo cable
MOUNTS: Triple Cage / Head light / Mudguards
INCLUDED: Through-Axle, Expander, Cable port plugs
WEIGHT: 510 g
TYRE CLEARANCE: 29 x 1.8 / 27.5 x 2.1
ASTM RIDING CONDITION: 2
THROUGH-AXLE TYPE: 12x100mm (Included)
TA THREADING DIAMETER X PITCH: M12 x 1.5
MIN. THREAD LENGTH: 14 mmStock Level:In StockStock Level:In Stock$610.00 (RRP)Add To Cart
