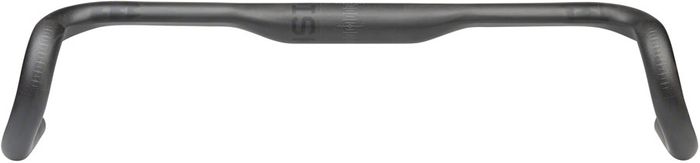

Whisky Spano Carbon Dropbar 46cm
Description
Whisky’s all-carbon Spano Drop Handlebar is designed to give gravel and all-road riders the most natural hand positions anywhere on the bar. A multi-stage flare puts the hoods at an optimal angle for comfort while maximizing control through the drops. The bar’s flat top promotes flex and offers relief from rough surfaces, and its 31.8 clamp diameter with 90mm width allows compatibility with bar-mounted accessories.
- Compound flare — 12 degrees at the hoods and 20 degrees through the drops
- Drop/Reach: 100mm/68mm
- 31.8 clamp diameter
- Di2 compatible with bar end junction for 1x drivetrain setups
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLHB-HB1114Stock Code:SLHB-HB1112
The Open bar is an upright bar but not an uptight bar. It’s equally suited to cruising, commuting, and even some singletrack, though it should be noted that this is not by any means a DH bar. We left it a bit flexy to take some of the harsh out of your ride. The angle makes it comfy for your wrists. The width enables loads of control. It’s got plenty of room for grips, shifters and brake levers. Knurled clamp area. 4130 CroMoly steel.
Clamp diameter: 25.4mm
Width: 666mm
Rise: 40mm
Sweep Angle: 53 degrees
Color: E.D. coated Black.POAPOA -
Stock Code:TNHB-HB-E128
Thomson Cyclocross 42x31.8 Carbon
Clipon compatible keep all accessory clamps inside the area marked on the bar as safe for clamping. 90mm total safe clamp area available.
For Cyclocross we present the carbon CX bar. The natural transition from your Thomson road bar for the ‘cross season. Twin flats on the bottom of the bar allow taping your housing to create a completely round bar when wrapped. Top profile is round and as wide as possible. This allows auxiliary brake levers to be safely used and still leaves lots of room for your hands.
Layup uses 3 different fiber types with different tensile strengths and tensile modulus, including High Strength carbon fiber. This helps allocate stiffness and flex where needed.
All carbon fiber is produced by Toray and uses tailor made Nano Epoxy Resin for very high impact resistance. Toray is the main supplier of carbon fiber for Boeing and Airbus.
Both the Road and Cross bar are made in one piece, not three pieces co-molded and glued together.
Bars are molded over an EPS mandrel to avoid wrinkles inside the layup during molding. Most other bars are molded over inflatable nylon bladders.
Reach 78.5mm. Drop is proportional.
Cross drops are: 40CM 131mm, 42CM 133mm, 44CM 135mm.$355.00 (RRP) -
Stock Code:TNHB-HB-E115Stock Code:TNHB-HB-E132Stock Code:TNHB-HB-E133Stock Code:TNHB-HB-E134

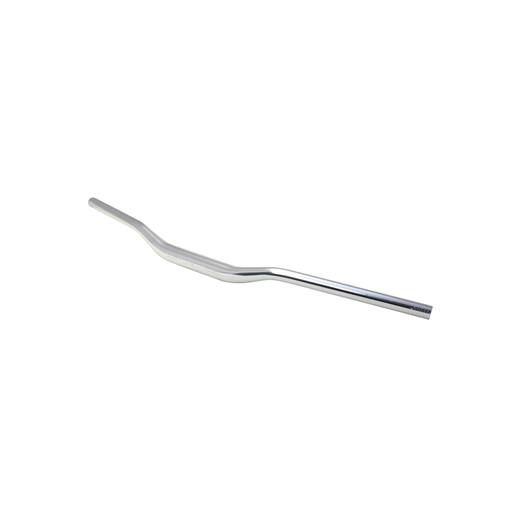

800mm wide, 20mm of rise, 9° of backsweep and 5° of upsweep. Built using 7050 Aluminum alloy for strength and long life. 65mm wide clamping area to fit our Direct Mount stem, giving you the most torsional stiffness of any bar/stem combination. 31.8 center section is absolutely straight over a width of 90mm. The long straight section in the middle reduces stress concentrations, especially when using wide Direct Mount stems
Bar is butted and tapered in many steps for optimal fatigue life. Ends of the bar are thickened from 1.4 to 1.6mm to resist damage from impacts and contact with the ground.
Bar is produced by advanced CNC bending to avoid the need for hand grinding. Almost all other bars are manually bent and bends are ground to appear smooth. CNC bending ensures very consistent wall thickness and close tolerances, especially in tapered sections. This keeps weight low and fatigue life high.
Weight 295 g
The perfect addition to your Elite X4 Stem or Direct Mount Stem.Was:$199.00 (RRP)Now:$132.00 (RRP)Price:$132.00 (RRP)$215.00 (RRP)$215.00 (RRP)$215.00 (RRP) -
Stock Code:TNHB-HB-E115Stock Code:TNHB-HB-E132Stock Code:TNHB-HB-E133Stock Code:TNHB-HB-E134
800mm wide, 20mm of rise, 9° of backsweep and 5° of upsweep. Built using 7050 Aluminum alloy for strength and long life. 65mm wide clamping area to fit our Direct Mount stem, giving you the most torsional stiffness of any bar/stem combination. 31.8 center section is absolutely straight over a width of 90mm. The long straight section in the middle reduces stress concentrations, especially when using wide Direct Mount stems
Bar is butted and tapered in many steps for optimal fatigue life. Ends of the bar are thickened from 1.4 to 1.6mm to resist damage from impacts and contact with the ground.
Bar is produced by advanced CNC bending to avoid the need for hand grinding. Almost all other bars are manually bent and bends are ground to appear smooth. CNC bending ensures very consistent wall thickness and close tolerances, especially in tapered sections. This keeps weight low and fatigue life high.
Weight 295 g
The perfect addition to your Elite X4 Stem or Direct Mount Stem.Was:$199.00 (RRP)Now:$132.00 (RRP)Price:$132.00 (RRP)$215.00 (RRP)$215.00 (RRP)$215.00 (RRP) -
Stock Code:TNHB-HB-E136Stock Code:TNHB-HB-E135
Our new Ø35mm x 800mm wide bar comes in 2 rise options: a center rise (8mm) and 20mm rise option. All Ø35mm bars feature a 9° backsweep, and 5° upsweep.
$330.00 (RRP)$330.00 (RRP)
