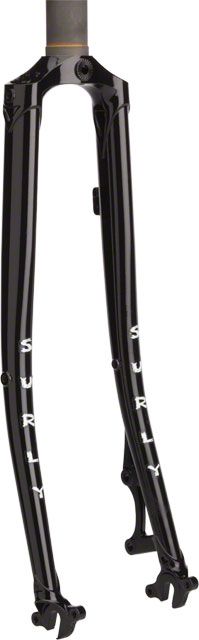

Surly Disc Trucker Fork 26 400mm Black
Description
The Disc Trucker Fork. The classic Long Haul Trucker fork is now available in a disc brake option. Fear not the loaded descent.
· 100% CroMoly steel construction, curved blades, powdercoated
· Extensive mounting options with threaded eyelets in four locations: double eyelet dropouts, mid-blade, and a pair drilled into the fork crown
· 51mm IS disc brake mount
· 26" has clearance for a 2.1" tire
Specifications
Axle to Crown Length: 376 mm
Brake Mount (Fork): IS Disc Brake 160
Color: Black
Crown Race: 30
Defined Color: Black
Front Axle: 10mm x 100mm
Material: Steel
Maximum Tire Clearance (Fork): 45 mm
Offset: 45 mm
Rotor Size (Fork): 160
S.H.I.S. Stem Clamp Diameter: 28.6
Steerer Tube Length (mm): 400 mm
Steerer Type: Straight
Weight: 955 g
Wheel Size: 26"
