Problem Solvers 5 x 16mmC/ring Blts SS
Description

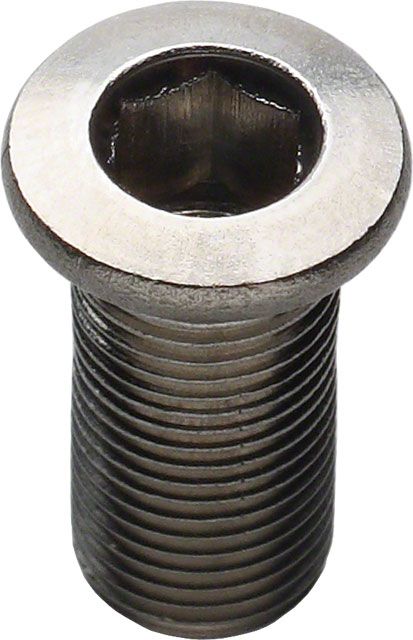

Problem Solvers 16mm Inner Chainring Bolts Silver Stainless Steel
- Inner chainring bolts do not include nuts. (5 pack)
Webshops and Bike shops
You may also be interested in...
-
The perfect solution when you need something smaller than a 30t on your 104/64 BCD cranks or your 11-speed Shimano XT and SLX 96/64 BCD cranks. Also, they look great when paired with our 104 BCD bash ring on a 104/64 BCD crankset
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- Drop-Stop® technology. On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment
Compatibility
- Fits any 104/64 BCD crankset (104 BCD is the middle/big position 64 is the smallest ring position)
- The Universal Model fits both 104/64 BCD cranksets and the Shimano 11 speed XT M8000 cranks and SLX M7000 cranks.
- Drivetrains: 1x9, 1x10, 1x11 and 1x12 drivetrains
Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
Shimano 12-speed chains require the use of our Shimano 12-speed specific chainrings
If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline (approximate as BB centering and cranksets vary)
Chainline is 46 mm on a triple and 48 mm on a double crank
Chainline on a Standard M8000 or M7000 crankset is 48mm and 50mm on a boost version.
You will use the stock bolts to mount this chainringStock Level:In StockStock Level:1Stock Level:2$122.00 (RRP)$122.00 (RRP) -
Stock Code:WTCHERC38-FTStock Code:WTCHERC40-FTStock Code:WTCHERC42-FTStock Code:WTCHERC44-FTStock Code:WTCHERC48-FTStock Code:WTCHERC50-FTStock Level:In StockStock Level:2Stock Level:1Stock Level:In StockStock Level:Out of StockStock Level:In StockStock Level:2$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)
-
Stock Code:WTCHSH11036Stock Code:WTCHSH11038Stock Code:WTCHSH11040Stock Code:WTCHSH11042Stock Code:WTCHSH11044Stock Code:WTCHSH11046Stock Code:WTCHSH11048Stock Code:WTCHSH11050
Wolf Tooth was first to market with cyclocross 1x specific chainrings because we saw cyclocross as the perfect use for our patent pending Drop-Stop® technology. These beautifully machined 110 BCD asymmetric 4-bolt chainrings are optimized for your 1x Shimano CX / road / gravel drivetrain whether you run Dura Ace 9000, Ultegra 6800, 105 5800, or Tiagra 4700. They are also offset for the ideal 1x chainline.
Compatibility
- Fits 110 BCD asymmetric 4-bolt cranks
- All sizes compatible with Dura Ace 9000, Ultegra 6800, 105 5800, RS510, Tiagra 4700 or 4703, Sora R3000 or R3030, and Claris R2000 or R2030 cranks.
- 38-50t are compatible with 105 R7000, Ultegra R8000, and Dura-Ace R9100. The 36t chainring is NOT compatible with these cranks.
- NOT compatible with Dura-Ace R9200, Ultegra R8100, and 105 R7100 Cranks
- Size 42t and larger will work with the Dura Ace 9100 power meter
- Mounts in the big ring position of the cranks but is offset inward for perfect chainline.

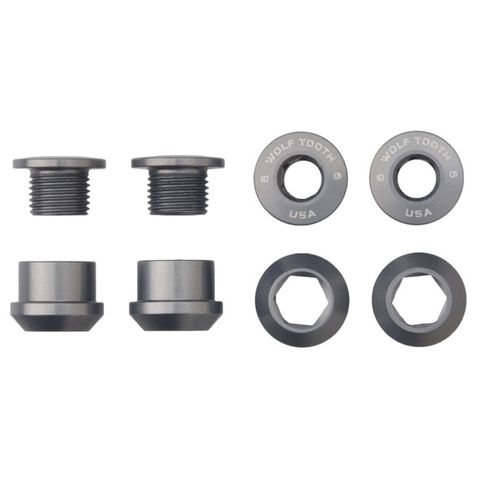

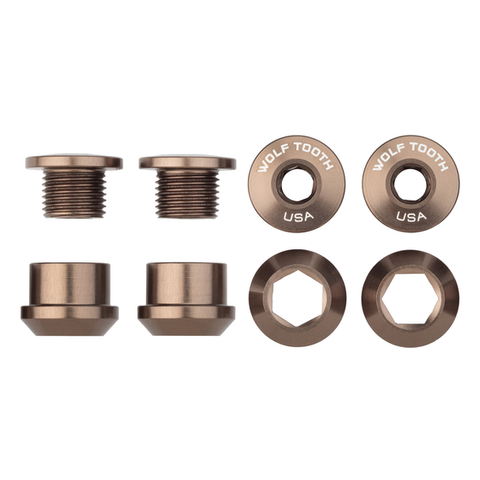

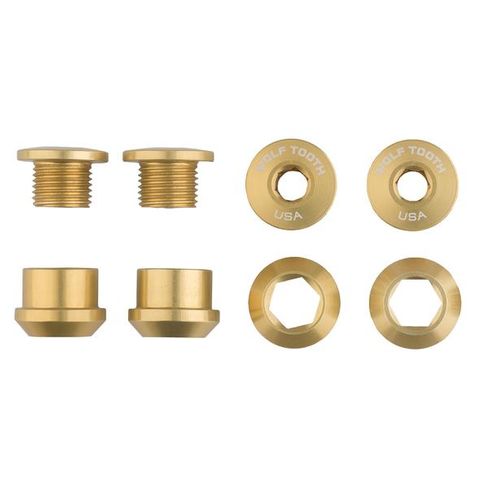

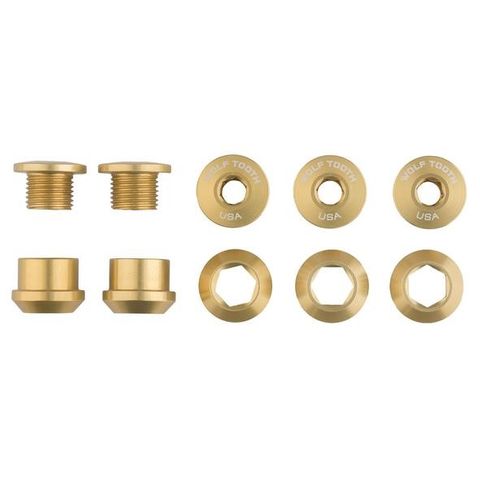

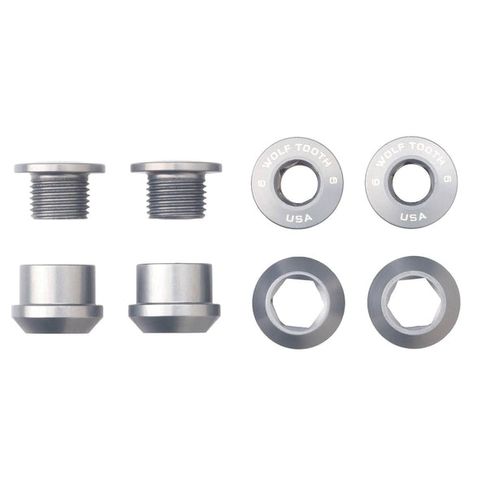

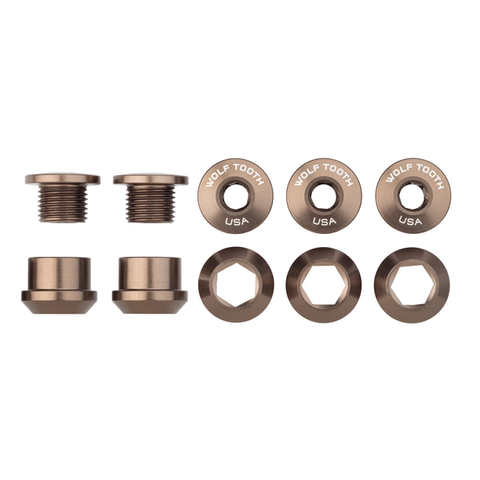

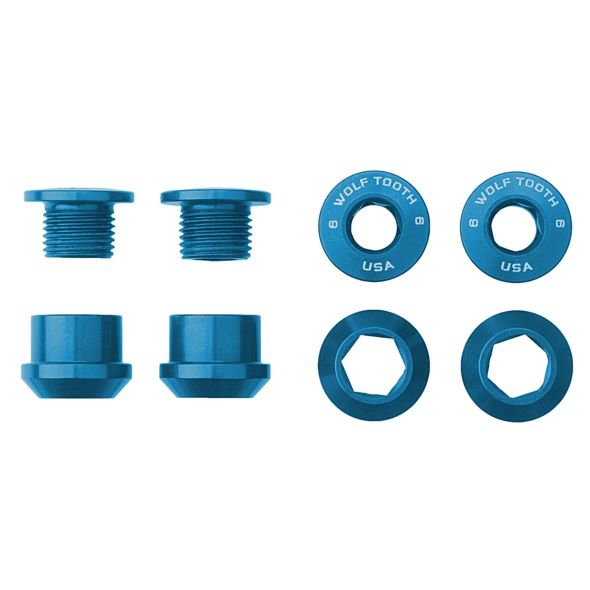

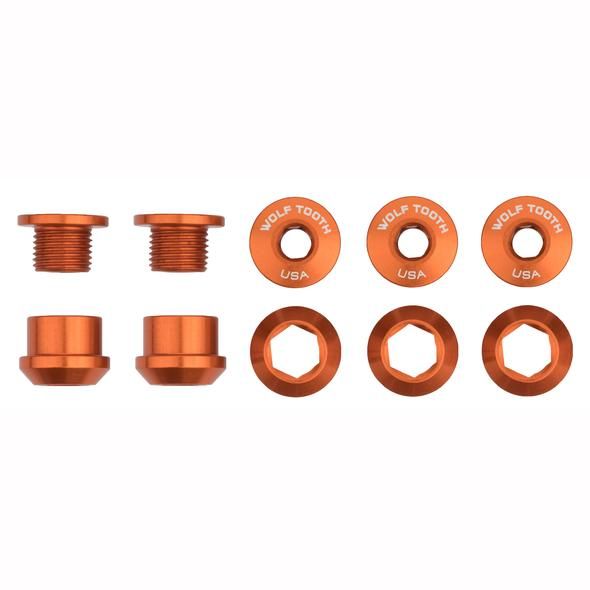

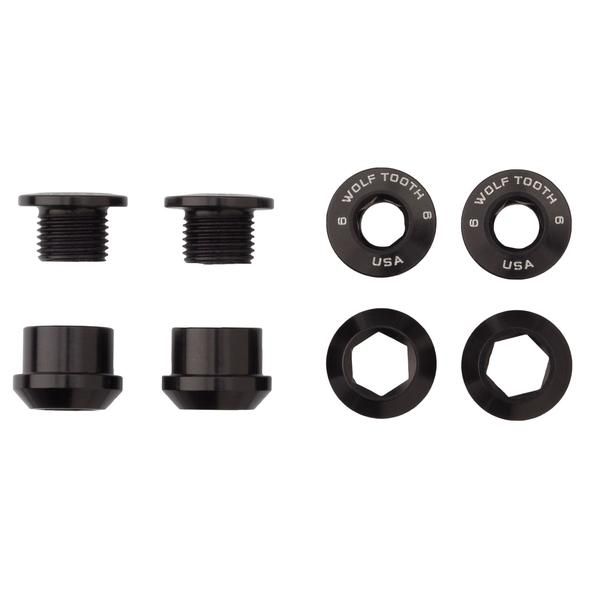

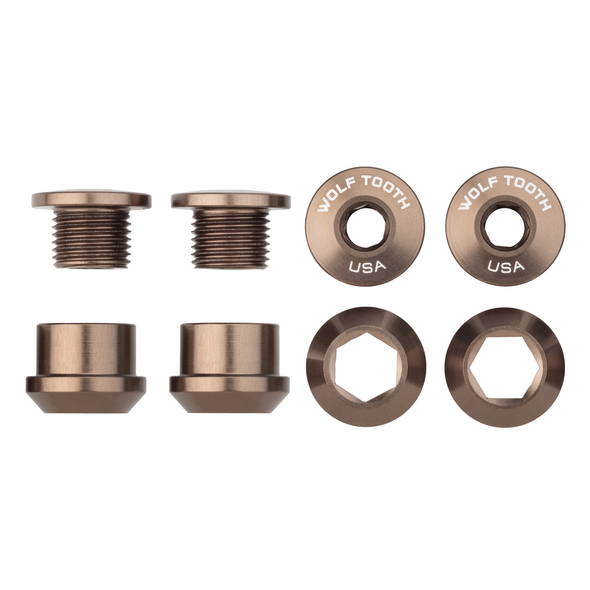

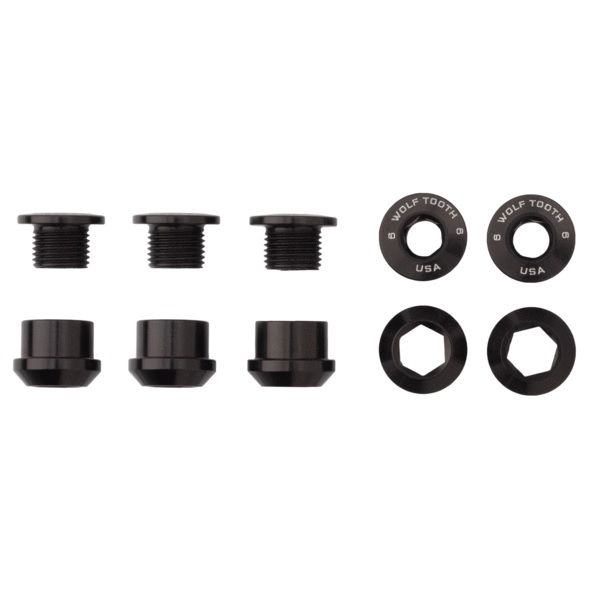

- The stock 2x bolts will not work. You will need our 6mm bolts which are optimized for single ring mounting.
- If using a 9-speed drivetrain use a 10-speed chain. It fits tighter for better chain retention
- Chainline 47.5mm
- Compatible with all 10-, 11-, and 12-speed chains except Shimano 12-speed chains
- Shimano 12-speed chains require the use of our Shimano 12-speed specific chainringsStock Level:In StockStock Level:2Stock Level:1Stock Level:2Stock Level:1Stock Level:In StockStock Level:In StockStock Level:1Stock Level:Out of StockExpected Date:20 January 2025$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)$159.00 (RRP)$169.00 (RRP)$169.00 (RRP)$169.00 (RRP)$169.00 (RRP) -
Stock Code:WTCHSDM30-BST-SH12Stock Code:WTCHSDM30-BST-BStock Code:WTCHSDM32-BST-SH12Stock Code:WTCHSDM32-BST-BStock Code:WTCHSDM34-BST-SH12Stock Code:WTCHSDM34-BST-BStock Code:WTCHSDM36-BST-B

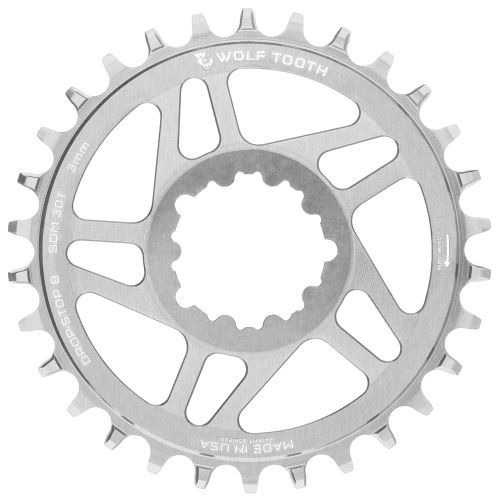

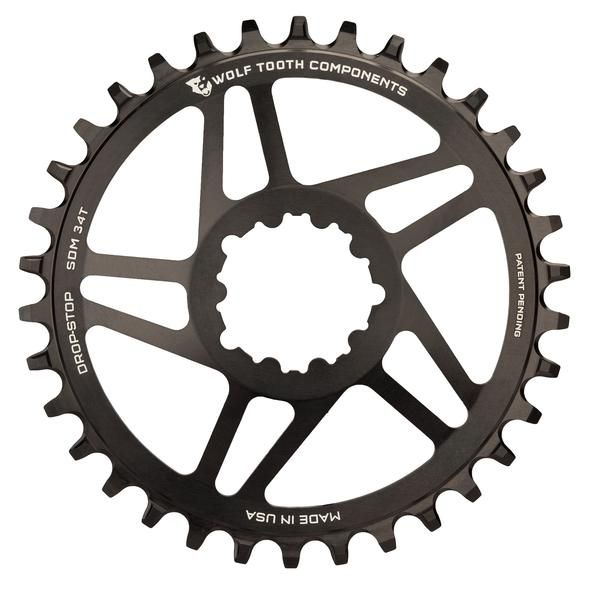

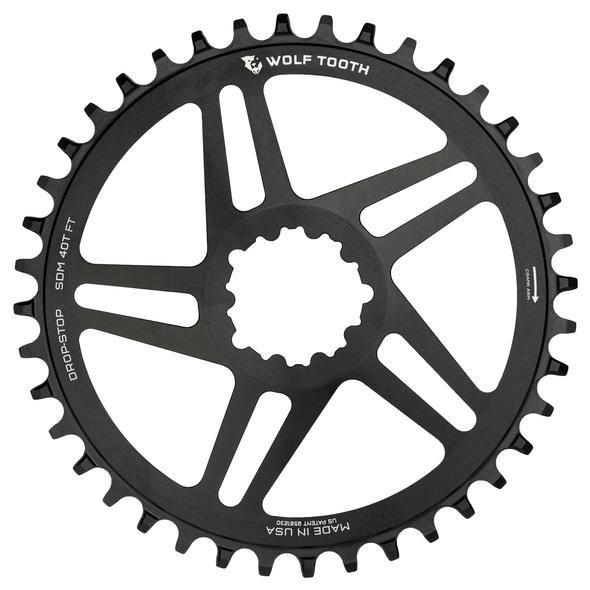

Direct Mount Chainrings for SRAM Cranks BOOST / 3mm Offset
Compatibility
- Designed for use with Shimano 12 speed chain

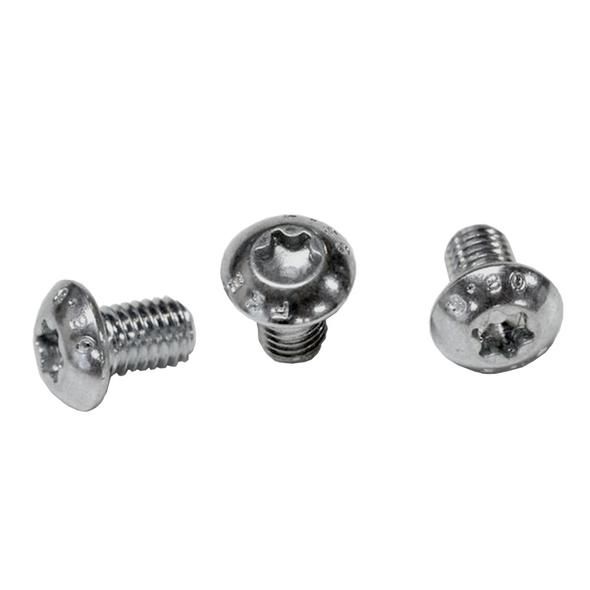

- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount ring on SRAM cranksets including the DUB cranks. The ring is attached via 3 bolts on the back side of the spider near the spindle.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding abilityStock Level:In StockStock Level:Out of StockStock Level:In StockStock Level:2Stock Level:Out of StockStock Level:In StockStock Level:2Stock Level:2Expected Date:20 January 2025Expected Date:20 January 2025$144.00 (RRP)$144.00 (RRP)$150.00 (RRP)$144.00 (RRP)$144.00 (RRP)$144.00 (RRP)$144.00 (RRP) -
Stock Code:WTCHOVAL10432-BStock Code:WTCHOVAL10434-BStock Code:WTCHOVAL10436Stock Code:WTCHOVAL10436-B
- These rings fit any 104 BCD crankset
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
Quarq power meter compatible with sizes 34t and 36t. Filing required for 32t fitment onto some older Quarq Power meters. No modifications are required for the DUB Quarq Power meter.
- Chainline (approximate as BB centering and cranksets vary) - 48mm on 3x cranksets and 49mm on 2x

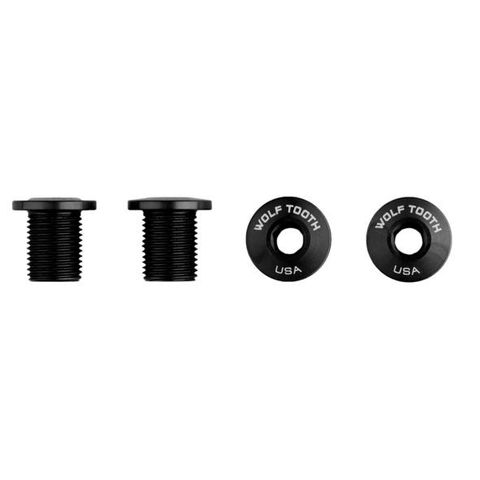

- Threaded to use M8 chainring bolts (no nuts required)
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)Stock Level:In StockStock Level:1Stock Level:In StockStock Level:Out of StockStock Level:In StockExpected Date:20 January 2025$135.00 (RRP)$135.00 (RRP)$135.00 (RRP)$135.00 (RRP)
