Wheels MFG BB86>29MM DUB
Description
Expand your choice of cranks for use in frames with 41mm ID shells. Replace your bottom bracket with these dual-row flanged bearings and run 29mm (SRAM DUB) spindle cranks in your frame. These bearings fit directly in frames with 41mm ID bottom bracket shells. Crankset spindle length must be longer than 104mm when used in a 86.5mm wide BB shell.

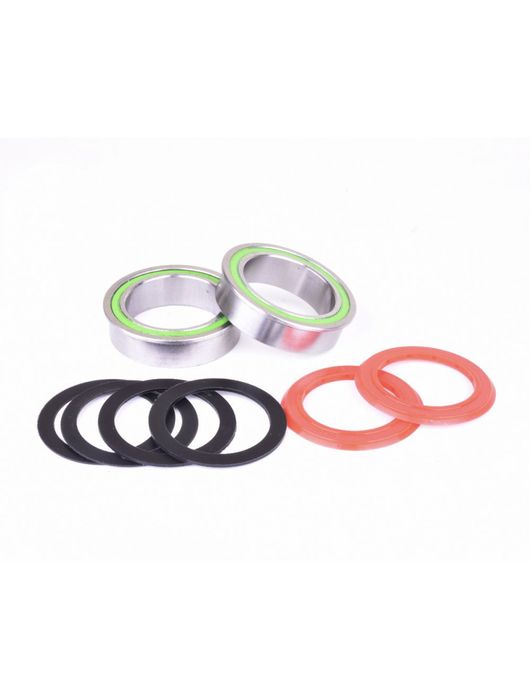

Complete kit for one frame
Includes:
(2) - Enduro BB86 to 30MM Dual-Row ABEC-3 Bearing
(2) - 0.5mm crank spacer
(2) - 1.0mm crank spacer
(2) - 5.0mm crank spacer
(2) - Dust seals
Bottom Bracket/Frame Interface: BB86, BB92, PF90, BB104/107, PF121, PF132
Bottom Bracket Shell Width: 86.5mm - 132mm
Bottom Bracket Shell I.D.: 41mm
Flange OD: 42mm
Crank Spindle Diameter: 29mm (DUB)
Over Bearing Width: 92mm in 86.5mm wide shell*
