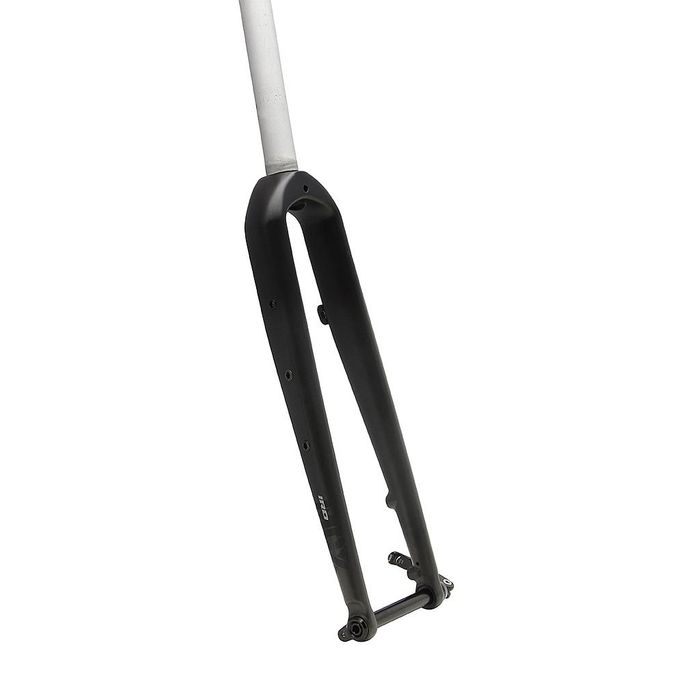

IRD Carbon Fork MCX Thru-axle 1-1/8
Description
The MCX TA is a monster cross/gravel carbon fork with clearance to fit 29 x 2.0" tires and 27.5" x 2.1" tires. Extra long 350mm steerers fit most 62+cm frames
(The MCX also comes in a configuration for standard QR hubs. There is an MCX Max model that is burlier with tapered steerer, thru-axle, and even more tire clearance)
– Axle to crown: 406mm
– Rake: 50mm
– 15mm thru axle
– Brake mount: Flat mount disc
– Triple accessory bosses
– Single set of fender eyelets
– Steerer: Aluminum, 1-1/8" x 350mm
– Weight: 870g (Including thru-axle and uncut steerer)
– Matte Black finish
Webshops and Bike shops
You may also be interested in...
-
Stock Code:SLFK-FK0040
Surly Ice Cream Truck 150x15 Thru Axle Fork Black
Brake Type: Disc
Brake Usage F/R: Front
Color: Black
Crown Race: 30.0
Defined Color: Black
Front Axle Type: 15mm Thru
Front Hub Spacing (mm): 150 mm
S.H.I.S. Stem Clamp Diameter: 28.6
Wheel Size: 26"POA -
Stock Code:SLFK-FK0658
The Ogre fork is ready for just about anything. Made with 100% Chromoly and compatible with both 29” and 27.5+ wheel sizes, generous tire clearance, and available in suspension and non-suspension corrected options.
- 100% Chromoly
- Straight steerer tube
- Mid though-blade threaded rack eyelets
- High and Low-blade threaded barrel boss rack eyelets
- 51mm IS disc brake tabs
- Removable canti brake pivots, compatible with 29” rims only
- Axle to Crown Length: 447 mm
- Offset: 43 mm
- Steerer Tube Length (mm): 285 mm
- Rotor Size (Fork): 180
- Maximum Tire Clearance (Fork): 3"POA -
Stock Code:WSFK-FK9922
The No.9 Road Plus fork is an all-road fork designed for versatility with lots of clearance for big tires. Features include a tapered steerer tube and 12mm thru-axle for precise handling, while hidden and removable fender mounts make this fork all season capable. Flat mount disc brake capability offers clean caliper fitment, and backwards compatibility with post mount brakes.
- 12mm thru-axle, 100mm spacing
- Designed for flat mount disc brakes
- Hidden, removable fender mounts
- Clearance for 700x38c or 650x47c max tire sizes
- ASTM Condition 2 - For off-road riding and jumps less than 6"
- Includes thru axle and Whisky Parts Co. compression plug
- Adaptor required for post mount brakes, sold separately
- Steerer Tube Length (mm): 350 mm
- Axle to Crown Length: 383 mm
- Weight: 440grams
- Offset: 51mm$800.00 (RRP)POA -
Stock Code:BTFK-4055822521307
- 4130 CroMo
- Thru Axle 12 mm x 100 mm, 1.5 thread pitch
- Rack / fender mounts
- Internal hub dynamo cable routing
- Fork max tyre clearance w/o fender 700C x 42C
- Axle to Crown 390mm
- Fork Offset 55mm$415.00 (RRP)Add To Cart
-
Stock Code:BTFK-100000152
Proven and tested on our Beyond+ bikes, our BikePacking Steel Fork is now available separately to pair it with our Beyond+ Framesets or to upgrade your existing bike with more load-carrying capabilites.
BLADES: Crmo steel
STEERER: Crmo steel
STEERER SIZE / S.H.I.S.: 1.1/8"-1.1/2" / 28.6 | 40
CROWN RACE DIAMETER: 40 mm
STEERER LENGTH: 300 mm
OFFSET: 51 mm
AXLE TO CROWN: 500 mm
AXLE: 15x110mm, Thread: M15 x 1.5 mm (not incl.)
BRAKE: Postmount, 203mm max. rotor size
CROWN DRILLING: M6 through-hole
TYRE CLEARANCE: 27.5" x 3.0" / 29" x 3.0"
MOUNTS: 2x Triple Cage Mounts, lowrider mounts (inside and outside), fender mounts
WEIGHT: 1590g (uncut steerer, incl. 10 mounting bolts)Was:$420.00 (RRP)Now:$319.00 (RRP)Price:$319.00 (RRP)Add To Cart
