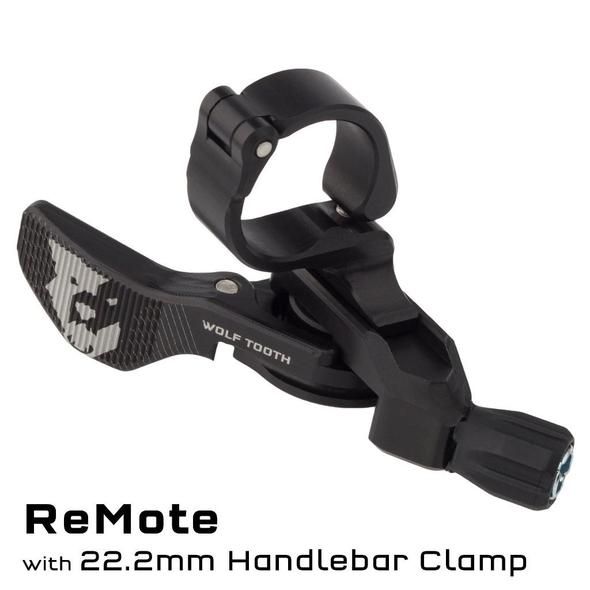

Wolf Tooth Remote with 22.2mm Clamp
Description
ReMote 22.2mm - includes hinged handlebar clamp for 22.2mm handlebars. All mountain bike handlebars are 22.2mm where your shift and brake levers attach even on 31.8mm handlebars. (31.8mm and 35mm handlebars just refer to the diameter where the stem clamps). Attach with 1-2nm max.
Solve common dropper remote complaints with the compact, ergonomic and sturdy ReMote dropper lever.
Beginning with a long list of rider and mechanic requests, the Wolf Tooth team set out to address each and every one. From its hassle-free installation to smooth ball bearing action to engineered failure point, the lightweight ReMote leads in every category.
- UpFront cable fixing: The dropper cable is attached at the lever, making setup and adjustment quick and easy. Simply secure cable at seatpost using stock barrel or cable clamp and route to bar for a significant reduction in installation time and frustration.
- Large-diameter ball-bearing pivot: An industry first, the ReMote uses a massive 21mm sealed cartridge bearing for smooth operation and unparalleled modulation.
- Cable-kind clamp: A precision-machined cable path and custom clamping screw with captive washer won’t damage cables like more common set screws. As an added bonus, cables can be cut to length and crimped prior to securing.
- Low-profile lever: The ReMote lever sits close to the bar, minimizing the distance the thumb must be removed from the grip while reducing the likelihood of knee contact in technical terrain and adds a bit of extra length to overcome stiff dropper internals.
- Integrated cable adjustment: The ReMote solidly-mounted barrel adjuster makes on-the-fly adjustments quick and easy while eliminating the rattles caused by common inline cable adjusters.
- Breakaway axle pivot: Crashes are bad- but expensive crashes are worse. That’s why the ReMote features an engineered failure point, allowing the lever to break away from its base in the event of a crash. Replacement axles are inexpensive and readily available here.
- High-traction lever: A machined surface ensures that control is not lost- even in the worst of conditions.
- Broad compatibility: The ReMote has been tested and is recommended for use with many cable-actuated dropper posts. See the compatibility section below for details.
- Made in the USA: Wherever the capabilities exist, Wolf Tooth is committed to domestic manufacturing. From lever to packaging, 65% or more of each ReMote is made in the USA.
Compatibility
- Compatible with all cable actuated dropper posts.
- Works with dropper posts that have the barrel end of the cable at the remote and those that have the barrel end at the post.
- If your post is not listed in the charts below, measure the pivot center to end of your current lever. If it is greater than 52mm the Light Action will work best. If it is less than 52mm, the Standard ReMote will work best.
- ReMote for Magura is compatible with the 2-bolt clamp SRAM brakes that do not feature Matchmaker X clamps.
- ReMote for Hope is only compatible Tech 3 brakes. There are two generations of Hope Tech 3 brakes. Our ReMote is designed to work with the early model of the Tech 3 brake levers. The newer model of the Tech 3 brakes has a threaded hole and will require some modifications to our ReMote base.
Webshops and Bike shops
You may also be interested in...
-
Stock Code:WTRLCLMP31.8-Kit$40.00 (RRP)
Add To Cart
-
Stock Code:WTRLREMOTE-SUS-A-CLMPStock Code:WTRLREMOTE-SUS-A-HOPEStock Code:WTRLREMOTE-SUS-A-ISABStock Code:WTRLREMOTE-SUS-A-ISEVStock Code:WTRLREMOTE-SUS-A-ISIIStock Code:WTRLREMOTE-SUS-A-MAGStock Code:WTRLREMOTE-SUS-A-MMStock Code:WTRLREMOTE-SUS-B-CLMPStock Code:WTRLREMOTE-SUS-B-HOPEStock Code:WTRLREMOTE-SUS-B-ISABStock Code:WTRLREMOTE-SUS-B-ISEVStock Code:WTRLREMOTE-SUS-B-ISIIStock Code:WTRLREMOTE-SUS-B-MAGStock Code:WTRLSUSTAIN-A-KIT
ReMote 22.2mm - includes hinged handlebar clamp for 22.2mm handlebars (22.2mm is the standard diameter where your shift and brake levers attach). Attach with 1 NM max (it doesn't take much!).
Drop an ergonomically perfect lever and cable conversion into your Rockshox Reverb post!
With its ergonomic design, smooth action, and breakaway axle, the patent-pending ReMote has quickly become the go-to upgrade for cable-actuated dropper posts. But "cable-actuated" left a lot of riders out- most notably those using RockShox's hydraulically-actuated Reverb seatpost and its pushbutton remote.
When considering the Reverb and listening to riders' and mechanics' comments about their experiences, we realized that many ergonomic, consistency, and maintenance issues could be addressed by removing the secondary hydraulic system in favor of a simple cable and mechanical actuator. Our Sustain mechanism leaves the internal brake untouched while simplifying the Reverb system substantially, freeing up significant space inside of the seatpost while allowing the use of our proven, robust, and easily-serviced ReMote lever. Tactile feedback is improved, return speeds are accelerated, and lever throw is reduced.
The Wolf Tooth Sustain mechanism features the following:
- A leak-proof, robust, and low-maintenance mechanical actuation system
- Easy cable detachment for service or shipping
- A 40mm (1 5/8in) reduction of in-frame height when compared to Connectamajig-equipped Reverbs
- Straightforward 15-minute installation
- Reverb Stealth generation A2 and B1 compatibility
Compatibility
- Compatible with Rockshox Reverb A2 and B Spec Stealth (internal) routing dropper posts.
- NOT compatible with A1 or C1 spec Reverbs
- NOT compatible with non-Stealth (externally routed hydraulic hose)
- A2 Spec has no marking at the top of the stanchion and the speed adjuster knob is black (vs Silver for the A1)
- B Spec has gold "Rockshox" written at the top of the stanchion$190.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$190.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$60.00 (RRP) -
Stock Code:WTRLREMOTE-SUS-A-CLMPStock Code:WTRLREMOTE-SUS-A-HOPEStock Code:WTRLREMOTE-SUS-A-ISABStock Code:WTRLREMOTE-SUS-A-ISEVStock Code:WTRLREMOTE-SUS-A-ISIIStock Code:WTRLREMOTE-SUS-A-MAGStock Code:WTRLREMOTE-SUS-A-MMStock Code:WTRLREMOTE-SUS-B-CLMPStock Code:WTRLREMOTE-SUS-B-HOPEStock Code:WTRLREMOTE-SUS-B-ISABStock Code:WTRLREMOTE-SUS-B-ISEVStock Code:WTRLREMOTE-SUS-B-ISIIStock Code:WTRLREMOTE-SUS-B-MAGStock Code:WTRLSUSTAIN-A-KIT
ReMote 22.2mm - includes hinged handlebar clamp for 22.2mm handlebars (22.2mm is the standard diameter where your shift and brake levers attach). Attach with 1 NM max (it doesn't take much!).
Drop an ergonomically perfect lever and cable conversion into your Rockshox Reverb post!
With its ergonomic design, smooth action, and breakaway axle, the patent-pending ReMote has quickly become the go-to upgrade for cable-actuated dropper posts. But "cable-actuated" left a lot of riders out- most notably those using RockShox's hydraulically-actuated Reverb seatpost and its pushbutton remote.
When considering the Reverb and listening to riders' and mechanics' comments about their experiences, we realized that many ergonomic, consistency, and maintenance issues could be addressed by removing the secondary hydraulic system in favor of a simple cable and mechanical actuator. Our Sustain mechanism leaves the internal brake untouched while simplifying the Reverb system substantially, freeing up significant space inside of the seatpost while allowing the use of our proven, robust, and easily-serviced ReMote lever. Tactile feedback is improved, return speeds are accelerated, and lever throw is reduced.
The Wolf Tooth Sustain mechanism features the following:
- A leak-proof, robust, and low-maintenance mechanical actuation system
- Easy cable detachment for service or shipping
- A 40mm (1 5/8in) reduction of in-frame height when compared to Connectamajig-equipped Reverbs
- Straightforward 15-minute installation
- Reverb Stealth generation A2 and B1 compatibility
Compatibility
- Compatible with Rockshox Reverb A2 and B Spec Stealth (internal) routing dropper posts.
- NOT compatible with A1 or C1 spec Reverbs
- NOT compatible with non-Stealth (externally routed hydraulic hose)
- A2 Spec has no marking at the top of the stanchion and the speed adjuster knob is black (vs Silver for the A1)
- B Spec has gold "Rockshox" written at the top of the stanchion$190.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$190.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$181.00 (RRP)$60.00 (RRP) -
Stock Code:WTRLREMOTE-LA-REPLEVER
Repair your ReMote or update worn-out elements with high-quality parts. We know that crashes happen so to save you from having to replace the whole Wolf Tooth ReMote we designed the inexpensive plastic axle to be the weakest part.
We sell adapter kits if you want to move your remote to a different cockpit or change brakes.$50.00 (RRP)Add To Cart
-
Stock Code:WTRL-REMOTE-PRO-CLMPStock Code:WTRL-REMOTE-PRO-HAYESStock Code:WTRL-REMOTE-PRO-HOPEStock Code:WTRL-REMOTE-PRO-ISBStock Code:WTRL-REMOTE-PRO-ISEVStock Code:WTRL-REMOTE-PRO-ISIIStock Code:WTRL-REMOTE-PRO-MAGStock Code:WTRL-REMOTE-PRO-MMStock Code:WTRL-REMOTE-PRO-OLVStock Code:WTRL-REMOTE-PRO-ORGStock Code:WTRL-REMOTE-PRO-PRPStock Code:WTRL-REMOTE-PRO-REDStock Code:WTRL-REMOTE-PRO-RSILStock Code:WTRL-REMOTE-PRO-BLUStock Code:WTRL-REMOTE-PRO-ESPStock Code:WTRL-REMOTE-PRO-GLD
ReMote Pro 22.2mm Handlebar Clamp
- ReMote Pro is cycling’s most adjustable and refined dropper lever. It features more adjustment than any other dropper lever so you can configure your cockpit based on riding style. It also features a machined assembly for durability and ergonomics.
- ReMote Pro is the only dropper lever that allows for adjustment of the lever starting position independent of cable tension. This means that you have 48º of rotational freedom to select your lever starting point. ReMote Pro can also be moved along and rotated around the handlebar as can be done with ReMote and ReMote Light Action, as well as laterally once the clamp is in its final place with the addition of three lateral mount positions.
- The cable pulley of ReMote Pro is designed with a cam (oval) shape around the axle. This provides more leverage at the beginning of the lever throw, when dropper posts need more force to open the fluid reservoir valve that allows the post to move. Think of it as starting to pedal a bike from a dead stop while in a low, easy gear compared to starting in a high gear. The cam shape creates smooth, precise, quick actuation.
- ReMote Pro uses CNC machined aluminum for every major component including the lever, base, cam, and mount. An anodized Wolf Tooth chainring bolt and three stainless steel screws hold everything together. Solid, reliable and beautiful -- another future classic from Wolf Tooth.
- Replacement Parts Available, each of the components of ReMote Pro can be purchased separately, from the lever, to the clamp, and everything in between.Expected Date:20 January 2025Expected Date:20 January 2025$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)$133.00 (RRP)
