Stock Code:HLWA-HXHAA1512F
This simple product allows several* 15x100mm thru axle front hub to run with road standard 12×100 thru axle forks.
CNC machined 7075 alloy tube.
Anodised finish.
Lightweight at only 17g.
15mm OD, 12mm ID x 100 (98.5mm long)
*Please note: Some 12mm thru axle forks are only compatible with hubs which have end cones with a maximum outer diameter of 19mm. Most conventional MTB based 15mm thru axle hubs use end cones that have an outer diameter of 21mm or larger and therefore will not fit with the smaller 19mm fork slots.
Please check carefully before purchase that your fork will allow your existing outer hub cones to fit with your forks before purchasing the 15 to 12mm Adaptor Sleeve, as the sleeve does not reduce the outer diameter of the hub end cones. If in doubt please consult your local dealer.$35.00 (RRP) -

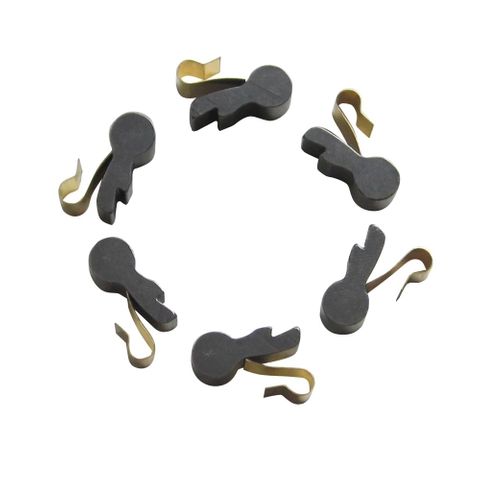

Stock Code:HLWA-HUHAM6SSK
Replacement pawls and springs for all 6Drive hubs (MT, FAT, RS, RO and RD).
$21.00 (RRP)Add To Cart
-

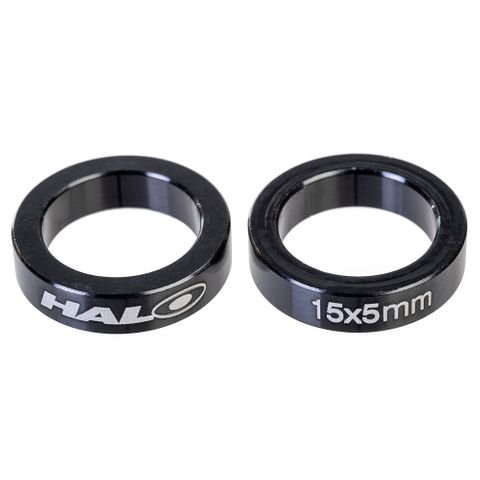

Stock Code:HLWA-HUHAZBAS15
These simple, 5mm lightweight aluminium spacers are designed to fit onto Thru-type hub axles to enable regular 100mm spaced hubs to fit into 110mm (Boost) type spaced fork thru-axle dropouts. (1 x 5mm spacer added each side = 10mm)
$15.00 (RRP)Add To Cart
-
Stock Code:HLWA-BDHACLA

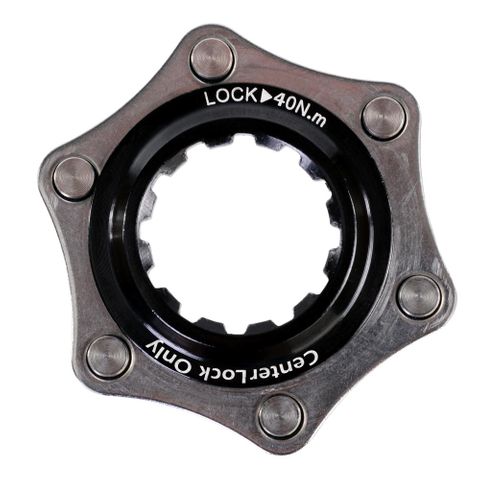

If your hubs feature the Shimano Centerlock splined interface rotor mounting system and you want to be able to use traditional 6 bolt type rotors, this simple to use adaptor kit allows you to do so.
Features
Lightweight alloy body with splined interface and 6 fitted stainless pins with a stainless washer and an alloy lockring allows the quick removal of the rotor simply by releasing the low-profile alloy lockring with a standard HG type cassette lockring tool.
Specifications
Material 6061 alloy body and CNC lockring, with stainless pins and washer.
Hub Fitting Shimano Centerlock splined.
Max hub axle 19mm outer axle diameter.
Tool required HG type cassette lockring tool.
Max Torque 40Nm.
Rotor Fitting IS (International Standard) 6 bolt type
Rotor required Stainless IS 1.8mm minimum to 2.3mm maximum.
Max rotor size 180mm Diameter.$35.00 (RRP)Add To Cart
-
Stock Code:HLWR-RMHAH62K
Our Chaos rim is lightweight, but packs a heavy punch.
Light enough to win International dirt jump competitions and traverse across Enduro courses, but strong enough to not be phased by the biggest World Cup Downhill tracks.
Rim Depth: 20mm
Internal Width: 22.5mm
External Width: 28mm
Drillings: 32H$165.00 (RRP) -
Stock Code:HLWL-WHHAH6FBK
Chaos are the World Championship winning, benchmark wheels for dirt jumping.
Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt Jones. Chaos wheels are at the pinnacle of dirt jump wheels that stand up to the hardest of use.
Chaos rear dirt jump wheels are built around our 11 tooth mini thread on cog, single speed DJD Rear hubs, with the option of our 120 point pick up Supadrive or a standard 3 pawl drive.
Chaos Front wheels use the brakeless DJ Wideboy hub.
All of our DJ series hubs utilise large sealed bearings for longevity and super wide spaced flanges for increased stiffness and durability.
Included Fittings
Front Standard: 100 x 15mm thru
Rear Standard: 135mm x m10 bolt in axle system with 14mm adaptors
Optional Fittings Sold Separately:
Front: 110 x 20mm thru and 100 x 9mm QR$365.00 (RRP)Add To Cart
-
Stock Code:HLWL-WHHAH6JVK
Chaos are the World Championship winning, benchmark wheels for dirt jumping.
Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt Jones. Chaos wheels are at the pinnacle of dirt jump wheels that stand up to the hardest of use.
These wheels utilise our tried and tested Chaos rim which offers tubeless compatibility where required, as well as a 22.5mm internal (28mm external) width. These widths have been optimised for strength in addition to tyre profiling.
The rear wheels are built around our single speed specific DJD hubs. These feature our 120 point pick up Supadrive freehub system on a reliable Bushdrive bushing system which enables the use of cogs as small as 9 tooth.
All of our DJ series hubs utilise large sealed bearings for longevity and super wide spaced flanges for increased stiffness and durability.
*** Our rear wheels no longer come with a sprocket included, so please choose an additional ‘DJD Supadrive and Bushdrive Sprocket’ to suit your bike.
Included Fittings
Rear Standard: 135mm x m10 bolt in axle system with 14mm adaptors$590.00 (RRP)Add To Cart
-
Stock Code:HLWL-WHHAH6PBSX
A tribute to Halo’s history in the dirt jump and MTB market, we have created this retro-inspired Chaos Dirt Jump Wheelset.
Featuring the iconic wide boy front hub and MT-SS 135mm x M10 (which is adaptable for 142mm X 12mm for thru-axle frames) They are laced with Stainless double butted silver spokes and black brass nipples to the durable Chaos rim. For this edition, we have shot peened and anodised the Chaos rims in a classic grey colour. Tubeless taped and ready out the box.
Utilising our tried and tested Chaos rim which offers tubeless compatibility where required, as well as a 22.5mm internal (28mm external) width. These widths have been optimised for strength in addition to tyre profiling.
To offer versatility the front hub is adaptable to fit both older and more modern frame standards. The optional adaptors for various fork types further enhance compatibility, allowing riders to customise their setup according to their preferences.
This hub comes as 15x100mm thru axle as standard.
The use of the MT Supadrive SS hub on the rear wheel is a great choice for high-performance riding, with its 120-point Supadrive mechanism and sealed bearings, it provides a smooth and reliable power transfer. Additionally, the cassette spacer kit (1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring.) and the option to use Fat foot sprockets in a range of sizes offer further customisation possibilities for riders seeking the perfect gear ratio.$980.00 (RRP)Add To Cart
-
Stock Code:HLWL-WHHAD2KF
The Devaura Series is ready whatever the conditions, to offer you the aerodynamic advantage.
Our brand new Devaura Disc RD2 wheels utilise Center Lock disc brake technology, allowing consistently powerful braking on the road and CX courses alike.
The 19mm internal, 24mm external rim widths allow you to run your choice of traditional or tubeless tyres and are well suited to modern tyres ranging from 25C through to 38C widths to deliver enhanced comfort and grip.
At the core of our Devaura Disc RD2 wheels are our all new 120 point pick up RD2 Supadrive and RD2 Front hubs, with sealed bearings and wide spaced flanges for increased durability. These are hand built onto the dependable 30mm deep rims with our very own Aero Racing bladed spokes to decrease wind resistance. Both front and rear wheels use a 16/8e lacing pattern to balance spoke tensions and withstand torque and braking forces from centre of the wheels, reducing any possible lateral flex and increase power transfer.
Supplied pre-taped, Devaura Disc RD2 wheels are tubeless ready from the box.
Included Fittings
Front: 100 x 12mm thru (100 x QR5/9mm available aftermarket)$390.00 (RRP)Add To Cart
-
Stock Code:HLWL-WHHAD2KRS
The Devaura Series is ready whatever the conditions, to offer you the aerodynamic advantage.
Our brand new Devaura Disc RD2 wheels utilise Center Lock disc brake technology, allowing consistently powerful braking on the road and CX courses alike.
The 19mm internal, 24mm external rim widths allow you to run your choice of traditional or tubeless tyres and are well suited to modern tyres ranging from 25C through to 38C widths to deliver enhanced comfort and grip.
At the core of our Devaura Disc RD2 wheels are our all new 120 point pick up RD2 Supadrive and RD2 Front hubs, with sealed bearings and wide spaced flanges for increased durability. These are hand built onto the dependable 30mm deep rims with our very own Aero Racing bladed spokes to decrease wind resistance. Both front and rear wheels use a 16/8e lacing pattern to balance spoke tensions and withstand torque and braking forces from centre of the wheels, reducing any possible lateral flex and increase power transfer.
Supplied pre-taped, Devaura Disc RD2 wheels are tubeless ready from the box.
Included Fittings
Rear: 142 x 12mm Alloy thru (135 x QR5/10mm available aftermarket)$650.00 (RRP)Add To Cart
-

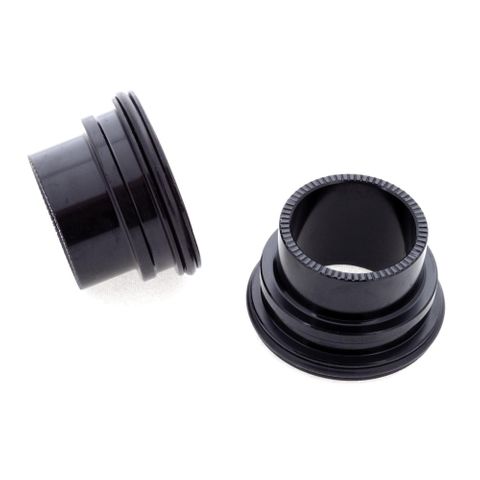

Stock Code:HLWA-HUHAWBAX2
These adaptors are designed to allow our DJ Wideboy Front hubs to work with almost every fork fitment on the market. Each adaptor set comes as a pair and are made from CNC alloy and finished in anodised black.
$39.00 (RRP)Add To Cart
-
Stock Code:HLWA-HUHAWBA2
These adaptors are designed to allow our DJ Wideboy Front hubs to work with almost every fork fitment on the market. Each adaptor set comes as a pair and are made from CNC alloy and finished in anodised black.
$39.00 (RRP)Add To Cart
-
Stock Code:HLWA-HUHADBA2

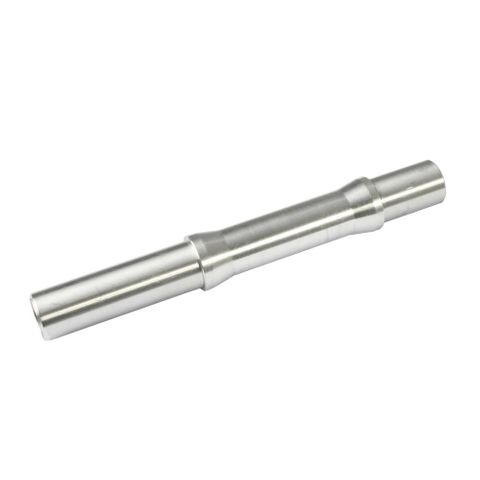

Halo has developed a 12mm T-axle to work with the DJD BD hub for use with 12mm thru frames.
These axles work with Halo DJD BD hubs.POA -

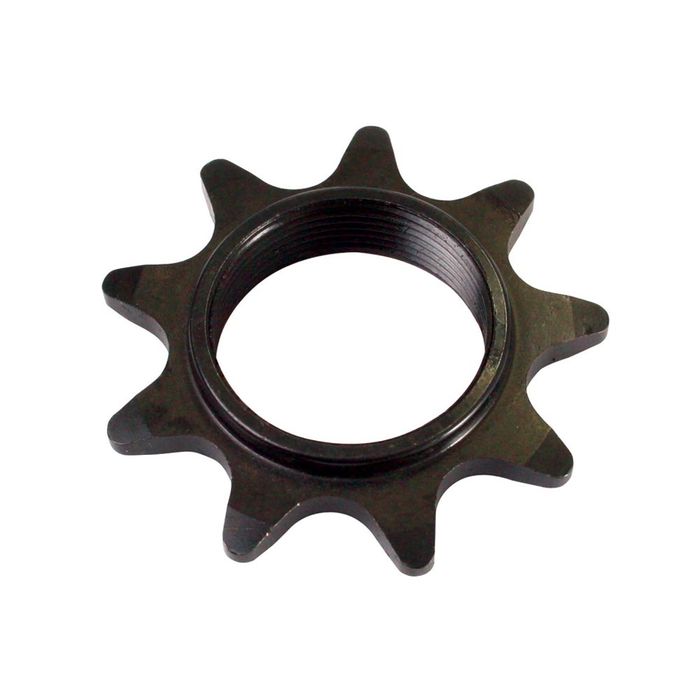

Stock Code:HLCG-HUHADB10Stock Code:HLCG-HUHADBC9Stock Code:HLCG-HUHADB13Stock Code:HLCG-HUHADB14Stock Code:HLCG-HUHADB16
Suits DJD BD or DJD Supadrive hubs.
1/2×1/8 Steel.
09, 10, 11, 13, 14 & 16T sizes.
23x1mm thread.
RHD only.
Note: not compatible with Sealed Bearing Driver Hub$35.00 (RRP)$35.00 (RRP)$35.00 (RRP)$35.00 (RRP)$36.00 (RRP) -
Stock Code:HLTL-HUHADBST
If stubborn spockets mean that the DJD driver cannot be adequately held then this Workshop tool may be required.
CNC Made from steel.
Use as follows:
- Insert the tool securely into a bench vice.
- Remove the driver body from the hub assembly.
- Remove the 3 Pawls and spring.
- Insert the Pawl area of the driver body into the Bench tool.
- Use required chainwhip to remove the now securely held DJD driver body.$75.00 (RRP)Add To Cart
-
Stock Code:HLTL-2HAD6RT$75.00 (RRP)
Add To Cart
-
Stock Code:HLWA-HUHADABCK

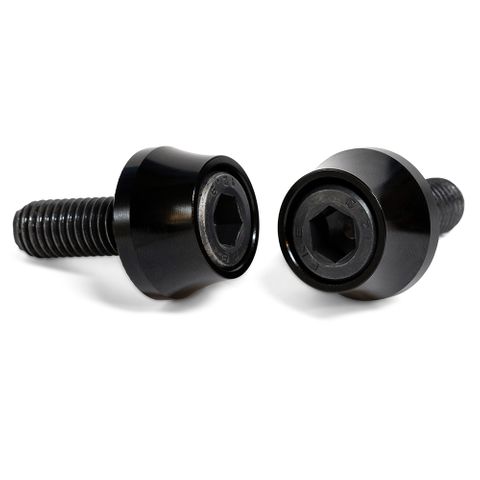

Cro-Mo Hub bolt and cap set for DJD Supadrive, DJD BushDrive and MT SS Hubs
$35.00 (RRP)Add To Cart
-

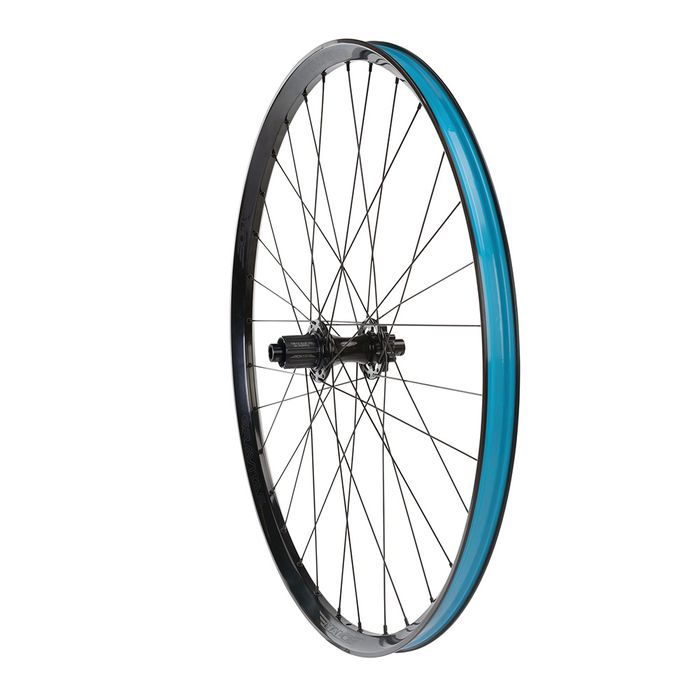

Stock Code:HLWL-WHHAGA9SZHStock Code:HLWL-WHHAGA9VZHStock Code:HLWL-WHHAGA9VZXStock Code:HLWL-WHHAGA9UZH
Designed for and tested on the Downhill World Cup Circuit, for lap-crushing confidence.
With a honed 27.5mm internal width, Gravitas wheels offer tyres large sidewall support, while remaining narrow enough to avoid unnecessary rock collisions.
Using our tried and tested asymmetric design we have equalised spoke tensions and built a package that dominates descents, whilst cutting down on bulk where it isn’t needed. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Gravitas offers offset wheel benefits, without compromise.
At the core of these Gravitas wheels are our all-new instantaneous 120 point pick-up MTC Supadrive Boost and MTC Front Boost hubs, with sealed bearings and super-wide spaced flanges for increased stiffness and durability.
100% hand-built and pre-fitted with tubeless tape, Gravitas wheels are tubeless-ready from the box.
- Rear 142x12mm
- Rim Depth 20mm
- Internal Rim Width 27.5mm
- External Rim Width 33mm
- Drillings 32H
- Disc Mount 6 BOLT
- Recommended Tyre size 2.25-2.7"
- Tubeless ready$590.00 (RRP)$590.00 (RRP)$590.00 (RRP)$590.00 (RRP) -
Stock Code:HLWL-WHHAGA9SZX
Designed for and tested on the Downhill World Cup Circuit, for lap-crushing confidence.
With a honed 27.5mm internal width, Gravitas wheels offer tyres large sidewall support, while remaining narrow enough to avoid unnecessary rock collisions.
Using our tried and tested asymmetric design we have equalised spoke tensions and built a package that dominates descents, whilst cutting down on bulk where it isn’t needed. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Gravitas offers offset wheel benefits, without compromise.
At the core of these Gravitas wheels are our all-new instantaneous 120 point pick-up MTC Supadrive Boost and MTC Front Boost hubs, with sealed bearings and super-wide spaced flanges for increased stiffness and durability.
100% hand-built and pre-fitted with tubeless tape, Gravitas wheels are tubeless-ready from the box.
- Rear 142x12mm
- Rim Depth 20mm
- Internal Rim Width 27.5mm
- External Rim Width 33mm
- Drillings 32H
- Disc Mount 6 BOLT
- Recommended Tyre size 2.25-2.7"
- Tubeless ready$590.00 (RRP) -
Stock Code:HLWL-WHHAGA9FZStock Code:HLWL-WHHAGA9BZ
Designed for and tested on the Downhill World Cup Circuit, for lap-crushing confidence.
With a honed 27.5mm internal width, Gravitas wheels offer tyres large sidewall support, while remaining narrow enough to avoid unnecessary rock collisions.
Using our tried and tested asymmetric design we have equalised spoke tensions and built a package that dominates descents, whilst cutting down on bulk where it isn’t needed. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Gravitas offers offset wheel benefits, without compromise.
At the core of these Gravitas wheels are our all-new instantaneous 120 point pick-up MTC Supadrive Boost and MTC Front Boost hubs, with sealed bearings and super-wide spaced flanges for increased stiffness and durability.
100% hand-built and pre-fitted with tubeless tape, Gravitas wheels are tubeless-ready from the box.

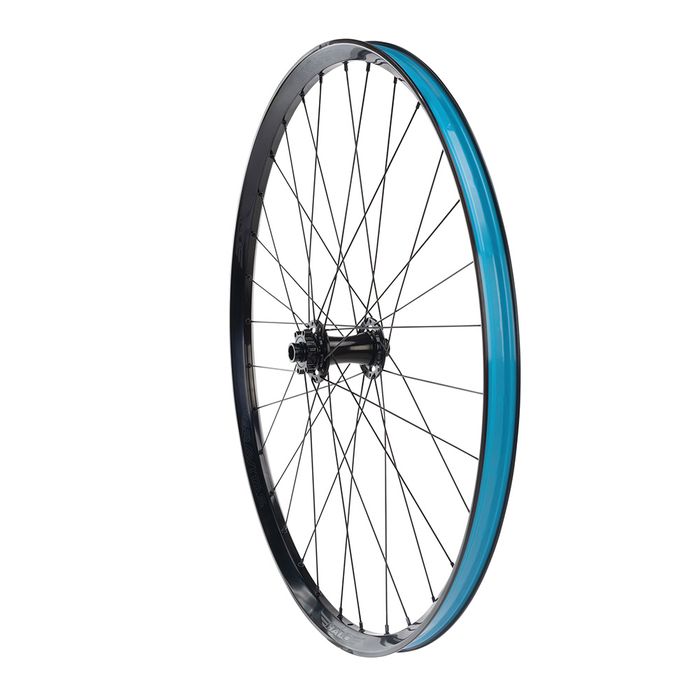

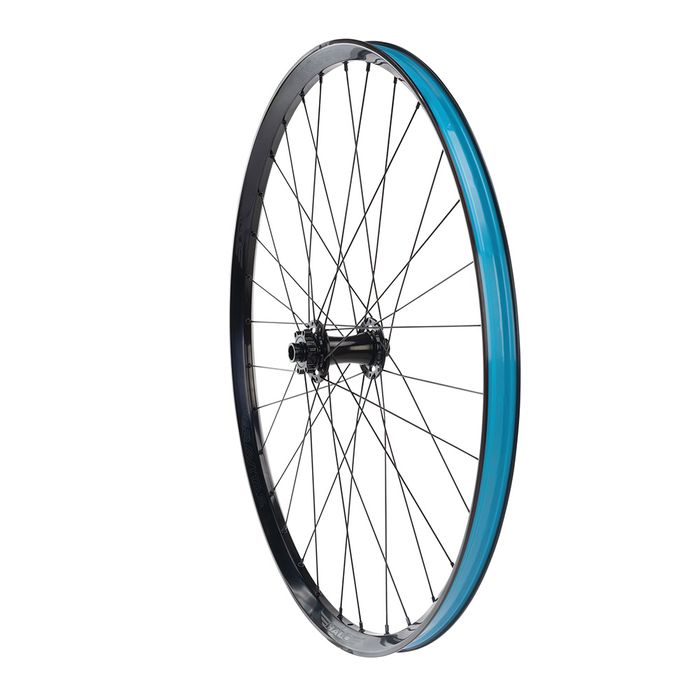

- Front Boost 110 x 15mm thru
- Rim Depth 20mm
- Internal Rim Width 27.5mm
- External Rim Width 33mm
- Drillings 32H
- Disc Mount 6 BOLT
- Recommended Tyre size 2.25-2.7"
- Tubeless ready$490.00 (RRP)$490.00 (RRP) -
Stock Code:HLWL-WHHAGA9MZM
Designed for and tested on the Downhill World Cup Circuit, for lap-crushing confidence.
With a honed 27.5mm internal width, Gravitas wheels offer tyres large sidewall support, while remaining narrow enough to avoid unnecessary rock collisions.
Using our tried and tested asymmetric design we have equalised spoke tensions and built a package that dominates descents, whilst cutting down on bulk where it isn’t needed. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Gravitas offers offset wheel benefits, without compromise.
At the core of these Gravitas wheels are our all-new instantaneous 120 point pick-up MTC Supadrive Boost and MTC Front Boost hubs, with sealed bearings and super-wide spaced flanges for increased stiffness and durability.
100% hand-built and pre-fitted with tubeless tape, Gravitas wheels are tubeless-ready from the box.
- Rear Boost 114mm
- Rim Depth 20mm
- Internal Rim Width 27.5mm
- External Rim Width 33mm
- Drillings 32H
- Disc Mount 6 CENTER LOCK
- Recommended Tyre size 2.25-2.7"
- Tubeless ready$590.00 (RRP)Add To Cart
-
Stock Code:HLWL-WHHAGA9CZ
Designed for and tested on the Downhill World Cup Circuit, for lap-crushing confidence.
With a honed 27.5mm internal width, Gravitas wheels offer tyres large sidewall support, while remaining narrow enough to avoid unnecessary rock collisions.
Using our tried and tested asymmetric design we have equalised spoke tensions and built a package that dominates descents, whilst cutting down on bulk where it isn’t needed. To compensate for the differences in wall length and strength of an asymmetric design, the wall thicknesses have been proportioned to balance out impact forces equally. The Gravitas offers offset wheel benefits, without compromise.
At the core of these Gravitas wheels are our all-new instantaneous 120 point pick-up MTC Supadrive Boost and MTC Front Boost hubs, with sealed bearings and super-wide spaced flanges for increased stiffness and durability.
100% hand-built and pre-fitted with tubeless tape, Gravitas wheels are tubeless-ready from the box.

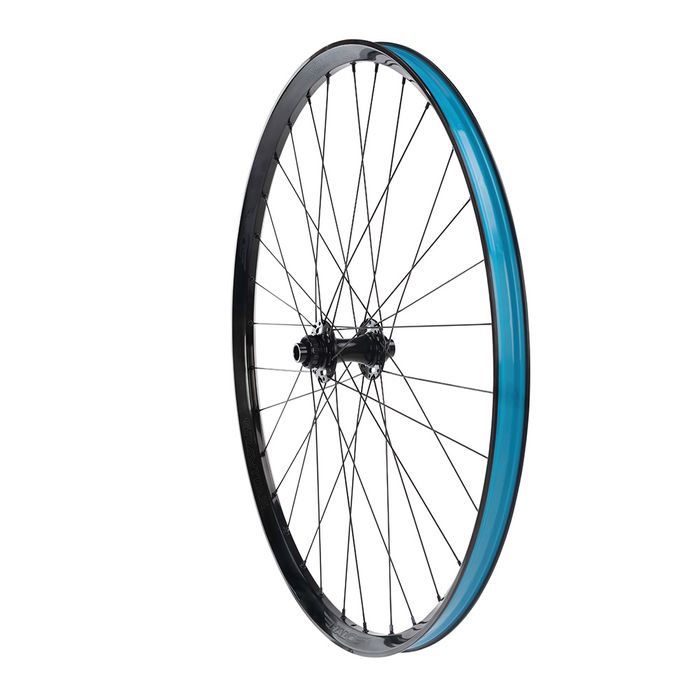

- Front Boost 110 x 15mm thru
- Rim Depth 20mm
- Internal Rim Width 27.5mm
- External Rim Width 33mm
- Drillings 32H
- Disc Mount 6 CENTER LOCK
- Recommended Tyre size 2.25-2.7"
- Tubeless ready$490.00 (RRP) -
Stock Code:HLWH-HUHASVBH2K
Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.
Durability, modularity and light weights make the MT Series a simple choice.
Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.
Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.
Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub$349.95 (RRP)Add To Cart
-
Stock Code:HLWH-HUHASVBX2K
Our MT series hubs are our flagship mountain bike hub range. The MT series encompass everything we feel hubs for mountain biking should offer.
Durability, modularity and light weights make the MT Series a simple choice.
Suited best to XC, trail and enduro bikes alike, the MT Supadrive hub offers a 120 point near instant engagement with the ability to withstand substantial torque loads, such as those found with wide range cassettes. With multiple World Championship titles across a range of disciplines the Supadrive system is tried and tested to the very highest level and is our most advanced and reliable drive system to date.
Wide spoke flanges, sealed cartridge bearings and a Cr-Mo tube axle in the MT Supadrive hub ensure longevity.
Designed to be run with mountain bike gearing, the MT Supadrive hub features an XD driver or alternatively a MTB width HG freehub$339.95 (RRP)Add To Cart
